iFlightPlanner



...

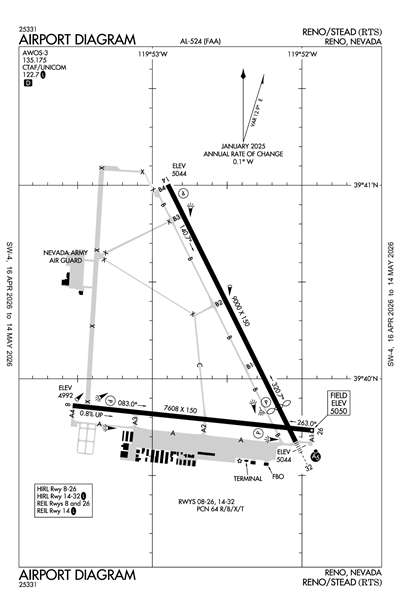

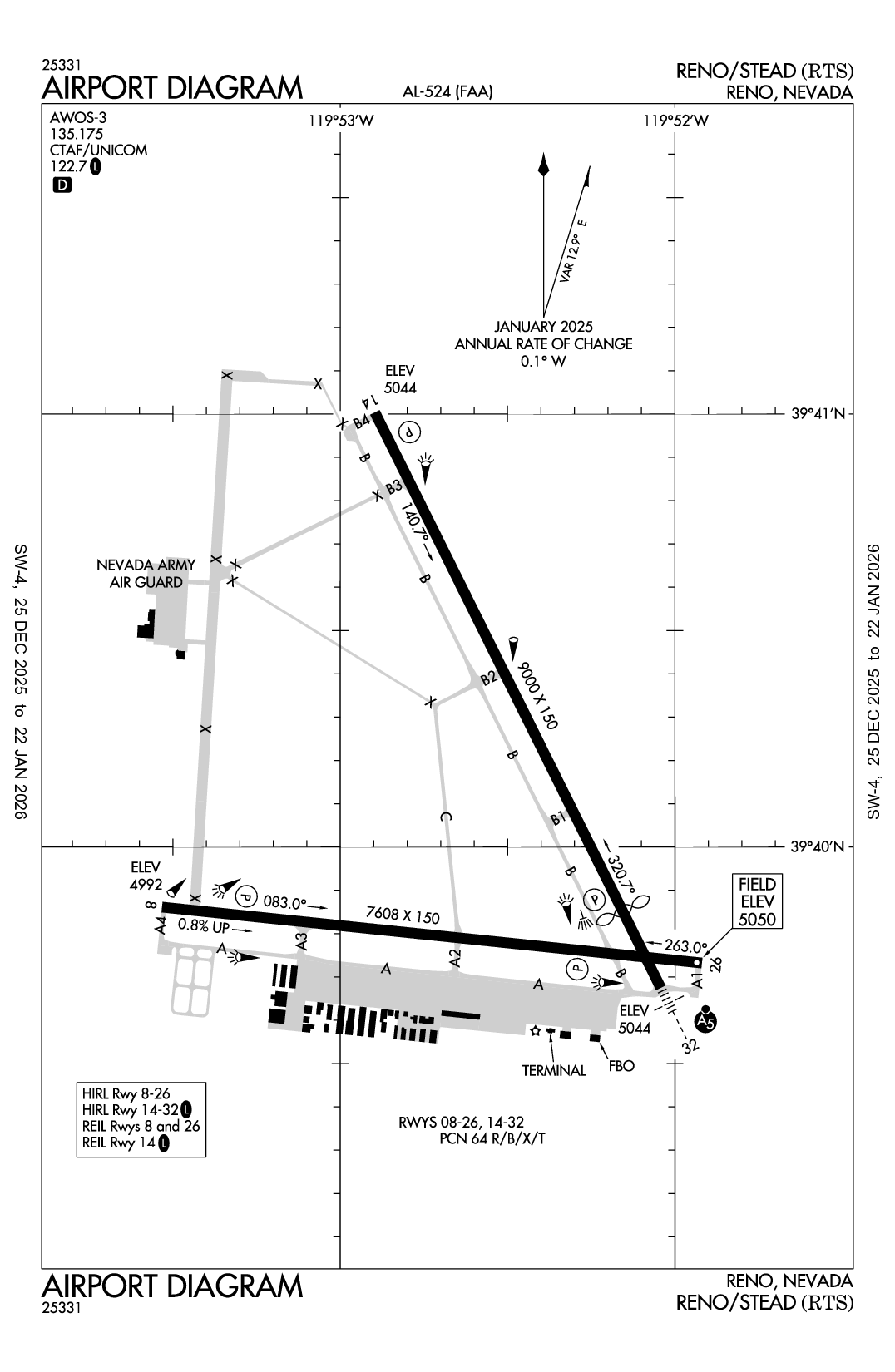

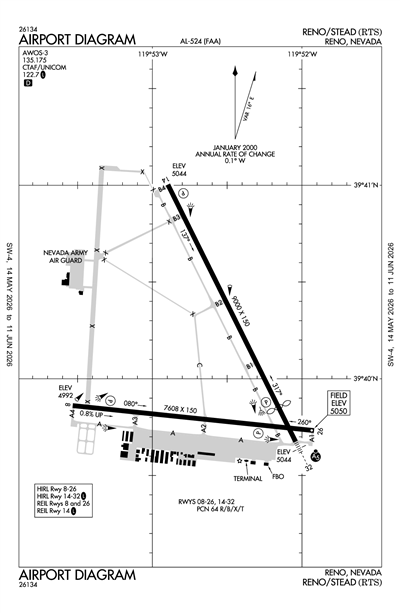

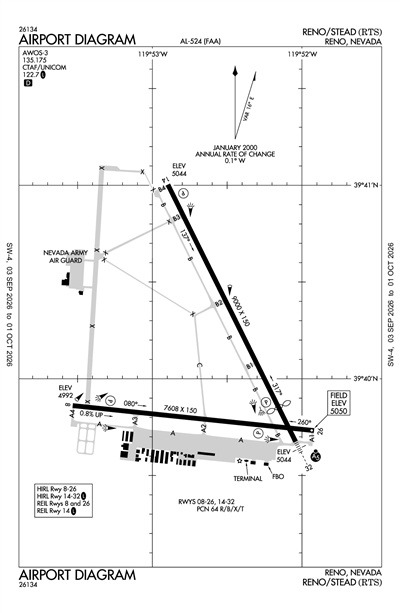

RENO/STEAD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRTS
RENO/STEAD
PublicPUB

10 miles NW of RENO, NV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 40' 05"N 119° 52' 35"W
5050' MSL
5850' MSL
16E
JET A, 100LL
RENO (RNO)
SAN FRANCISCO
OAKLAND (ZOA)
5/16/24-6/13/24
KRTS VFR
7:15 PM PDT
Clear
10sm
73°F
28°F
30.00"Hg
290° 10kts
AO2
KRTS 010215Z AUTO 29010KT 10SM CLR 23/M02 A3000 RMK AO2
Add Your Business

KRTS FBOs

Promote Listing
Aviation Classics
UNICOM: 122.7
Phone: (775) 972-5540
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.45
Full Serve 6.95 6.25 6.40
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
775-677-0589
 135.175

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRNO (11nm)
Fri, 5/31 4:23 PM PDT
Fri, 5/31 5:00 PM PDT - Sat, 6/1 5:00 PM PDT
VFR
5:00 PM PDT - 11:00 PM PDT
Few 10,000'
6sm
270° 11kts
VFR
11:00 PM PDT - 1:00 PM PDT
Few 25,000'
6sm
VRB° 5kts
VFR
1:00 PM PDT - 5:00 PM PDT
Scattered 25,000'
Few 12,000'
6sm
270° 13kts
Gusts 23kts
KRNO 312323Z 0100/0124 27011KT P6SM FEW100
   FM010600 VRB05KT P6SM FEW250
   FM012000 27013G23KT P6SM FEW120 SCT250
KRTS
FDC
9/8/221713Z !FDC 2/4325 RTS ODP RENO/STEAD, RENO, NV.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3A...
TAKEOFF MINIMUMS: RWYS 8, 14, STANDARD WITH A MINIMUM CLIMB OF 410 FT PER NM TO 6500. RWY 32, STANDARD WITH A MINIMUM CLIMB OF 420 PER NM TO 7200.
NOTE: RWY 8, BUSH, BEGINNING 138 FT FROM DER, 358 FT LEFT OF CENTERLINE, UP TO 5058 FT MSL. NOTE: RWY 26, BUSH 4 FT FROM DER, 360 FT RIGHT OF CENTERLINE, 4997 FT MSL. OL ON PYLON 1079 FT FROM DER, 623 FT LEFT OF CENTERLINE, 5032 FT MSL. NOTE: RWY 32, WOODEN STAND 56 FT FROM DER, 229 FT LEFT OF CENTERLINE, 5054 FT MSL.

ALL OTHER DATA REMAINS AS PUBLISHED. 2209081713-2409081712EST
No
MONDAY - FRIDAY 0700-1630
RENO TAHOE ARPT AUTH
P.O. BOX 12490
RENO, NV 89510
Phone: 775-328-6400
SCOTT GORDON
4895 TEXAS AVE
RENO, NV 89506
Phone: 775-328-6573
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RTS
--
ACTVT MALSR RWY 32; REIL RWY 14; HIRL RWY 14/32 - CTAF. PAPI RWY 32 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
151
10
25
6
16
0
Major
Major
High Pressure
High Pressure
Air Freight
Air Ambulance
Avionics
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 08/26

7608 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
64 /R/B/X/T
--
--
--
--
  Runway 08 Runway 26
True Heading 96°276°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 39' 52"N 39° 39' 44"N
Longitude 119° 53' 32"W 119° 51' 55"W
Elevation 4,992' 5,050'
Threshold Crossing Height 45 ft. AGL 46 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

9000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
64 /R/B/X/T
--
--
--
--
  Runway 14 Runway 32
True Heading 153°333°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 39° 41' 00"N 39° 39' 41"N
Longitude 119° 52' 54"W 119° 52' 03"W
Elevation 5,044' 5,044'
Threshold Crossing Height 40 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-10FOR CD CTC NORCAL APCH AT 916-361-0596.
A110-11FUEL AVBL H24 - 775-530-7164 OR 122.775.
A110-2RNG HEL OPS INVOF ARPT; BALLOON OPS NW QUAD; TANKER & FIRE OPS INVOF ARPT DURG FIRE SEASON.
A110-9COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -16C.
RENO/STEAD (ICAO: KRTS, IATA: RTS) is a public airport located in RENO, NV.
