KRWL
RAWLINS MUNI/HARVEY FLD
PublicPUB

2 miles NE of RAWLINS, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 48' 21"N 107° 12' 01"W
6817' MSL
7817' MSL
10E
JET A, 100LL
CASPER (CPR)
CHEYENNE
DENVER (ZDV)
5/16/24-6/13/24
KRWL VFR
9:53 PM MDT
Clear
10sm
49°F
23°F
30.10"Hg
320° 5kts
AO2 SLP133 T00941050
KRWL 010353Z AUTO 32005KT 10SM CLR 09/M05 A3010 RMK AO2 SLP133 T00941050
Add Your Business

KRWL FBOs

Promote Listing
Classic Aviation
UNICOM: 123.0
Phone: (307) 324-2361
Other: (208) 244-1860
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/13
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.30 6.20
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
307-328-0031
 118.525

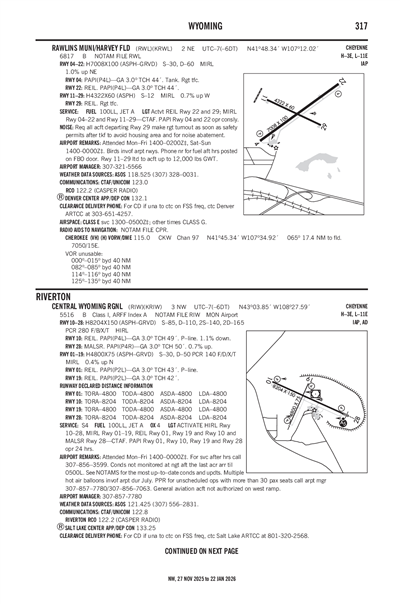

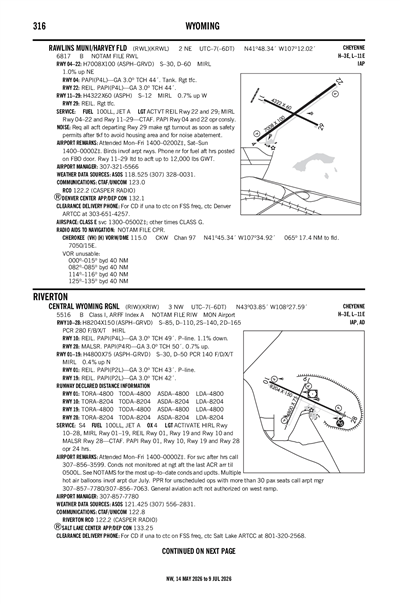

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRWL
Fri, 5/31 5:20 PM MDT
Fri, 5/31 6:00 PM MDT - Sat, 6/1 6:00 PM MDT
VFR
6:00 PM MDT - 8:00 PM MDT
Few 15,000'
6sm
250° 15kts
Gusts 25kts
VFR
8:00 PM MDT - 12:00 PM MDT
Sky Clear
6sm
250° 7kts
VFR
12:00 PM MDT - 6:00 PM MDT
Scattered 20,000'
6sm
250° 13kts
Gusts 23kts
KRWL 312320Z 0100/0124 25015G25KT P6SM FEW150
   FM010200 25007KT P6SM SKC
   FM011800 25013G23KT P6SM SCT200
KRWL
Domestic
4/29/240548Z !RWL 04/004 RWL OBST WIND TURBINE LGT (ASN 2008-WTW-8185-OE) 414047N1070349W (9.7NM SE RWL) 7189FT (270FT AGL) U/S 2404290548-2406130545
No
MON-FRI 0700-1900
SAT-SUN 0700-1700
RAWLINS CARBON CO ARPT BOARD
P.O. BOX 1363
RAWLINS, WY 82301
Phone: 307-324-2361
MIKE GRUETZMACHER
1300 AIRPORT ROAD
RAWLINS, WY 82301
Phone: 307-324-2361
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
RWL
--
ACTVT REIL RWY 22 & 29; PAPI RWY 04 & 22; MIRL RWY 04/22 & 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
8
2
0
1
0
0
None
None
None
None
None

Runway 04/22

7008 ft. x 100 ft.
ASPH
Good
GRVD
MED

30,000lbs
60,000lbs
--
--
  Runway 04 Runway 22
True Heading 54°234°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 48' 00"N 41° 48' 41"N
Longitude 107° 12' 37"W 107° 11' 22"W
Elevation 6,744' 6,817'
Threshold Crossing Height 44 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 11/29

4322 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 115°295°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 48' 30"N 41° 48' 11"N
Longitude 107° 12' 30"W 107° 11' 39"W
Elevation 6,776' 6,747'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-17800' MTN 3 MILES WEST, 7200' MTN 3 MILES SW, 7200' MTN 3 MILES NE.
A110-2RWY 11/29 LMTD TO ACFT UP TO 12000 LBS GWT.
A110-5REQ ALL ACFT DEPNG RWY 29 MAKE RIGHT TURNOUT AS SOON AS SAFETY PMTS AFT TKOF TO AVOID HOUSING AREA AND FOR NOISE ABATEMENT.
A110-6BIRDS INVOF ALL RYS.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC DENVER ARTCC AT 303-651-4257.
RAWLINS MUNI/HARVEY FLD (ICAO: KRWL, IATA: RWL) is a public airport located in RAWLINS, WY.
