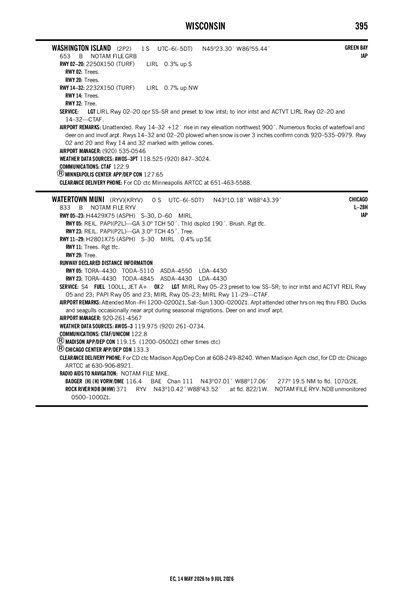

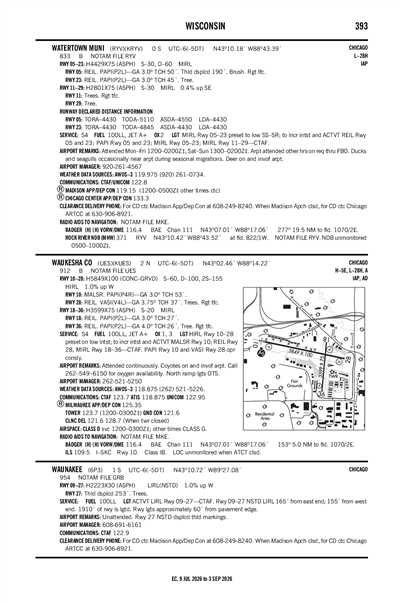

WATERTOWN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRYV
WATERTOWN MUNI
PublicPUB

0 miles S of WATERTOWN, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 10' 11"N 88° 43' 24"W
833' MSL
1833' MSL
01W
JET A, 100LL
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
5/16/24-6/13/24
KRYV VFR
9:35 PM CDT
Clear
10sm
65°F
54°F
30.10"Hg
120° 6kts
AO2 T01810120
KRYV 010235Z AUTO 12006KT 10SM CLR 18/12 A3010 RMK AO2 T01810120
Add Your Business

KRYV FBOs

Promote Listing
Wisconsin Aviation
UNICOM: 122.8
Phone: (920) 261-4567
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/8
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.89 5.29 5.32
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
920-261-0734
 119.975

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KUES (22nm)
Fri, 5/31 6:30 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 9:00 AM CDT
Broken 25,000'
6sm
130° 6kts
VFR
9:00 AM CDT - 12:00 PM CDT
Showers in vicinity
Broken 18,000'
6sm
190° 6kts
VFR
12:00 PM CDT - 2:00 PM CDT
Light Showers and Rain and Mist
Overcast 8,000'
6sm
150° 7kts
MVFR
2:00 PM CDT - 3:00 PM CDT
Light Showers and Rain and Mist
Overcast 3,000'
5sm
130° 7kts
MVFR
3:00 PM CDT - 5:00 PM CDT
Light Showers and Rain and Mist
Overcast 1,500'
6sm
120° 7kts
MVFR
5:00 PM CDT - 7:00 PM CDT
Broken 1,200'
6sm
120° 7kts
KUES 312330Z 0100/0124 13006KT P6SM BKN250
   FM011400 19006KT P6SM VCSH BKN180
   FM011700 15007KT 6SM -SHRA BR OVC080
   FM011900 13007KT 5SM -SHRA BR OVC030
   FM012000 12007KT 6SM -SHRA BR OVC015
   FM012200 12007KT P6SM BKN012
KRYV
Domestic
5/8/240521Z !RYV 05/002 RYV OBST TOWER LGT (ASN 2019-AGL-20816-OE) 430832N0882815W (11.1NM E RYV) 1075FT (190FT AGL) U/S 2405080521-2406070001
5/2/240502Z !RYV 05/001 RYV OBST TOWER (ASR 1324579) 430926.20N0885512.40W (8.65NM W RYV) 1135FT (304FT AGL) U/S 2405020502-2406161736
No
MON-FRI 0600-2000
SAT-SUN 0700-2000
ARPT ATTENDED OTHER HRS ON REQUEST THRU FBO.
CITY OF WATERTOWN
106 JONES
WATERTOWN, WI 53094
Phone: 920-262-4000
JEFF BAUM
1741 RIVER DRIVE
WATERTOWN, WI 53094
Phone: 920-261-4567
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
RYV
--
ACTVT MIRL RYS 05/23 & 11/29, PAPI RYS 05 & 23 & REIL RYS 05 & 23 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
51
7
2
0
0
0
Major
Major
None
Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

4429 ft. x 75 ft.
ASPH
Fair
NONE
MED

30,000lbs
60,000lbs
--
--
  Runway 05 Runway 23
True Heading 53°233°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 09' 55"N 43° 10' 21"N
Longitude 88° 43' 51"W 88° 43' 03"W
Elevation 817' 823'
Threshold Crossing Height 50 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 11/29

2801 ft. x 75 ft.
ASPH
Fair
NONE
MED

30,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 112°292°
Traffic Pattern Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 10' 20"N 43° 10' 10"N
Longitude 88° 43' 36"W 88° 43' 01"W
Elevation 823' 833'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER ON & INVOF ARPT.
A110-2DUCKS & SEAGULLS OCCASSIONALLY NEAR ARPT DURING SEASONAL MIGRATIONS.
A110-3FOR CD CTC MADISON APP/DEP CON AT 608-249-8240. WHEN MADISON APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
WATERTOWN MUNI (ICAO: KRYV, IATA: RYV) is a public airport located in WATERTOWN, WI.
