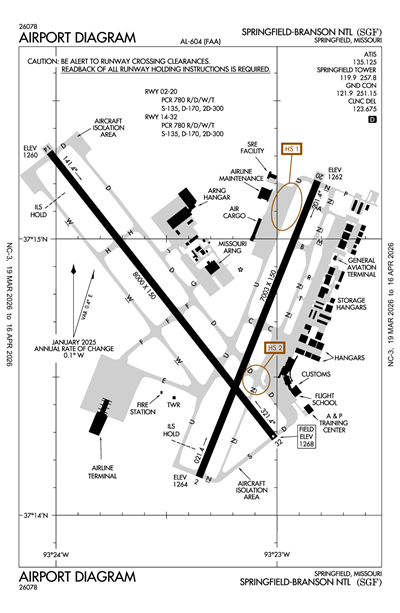

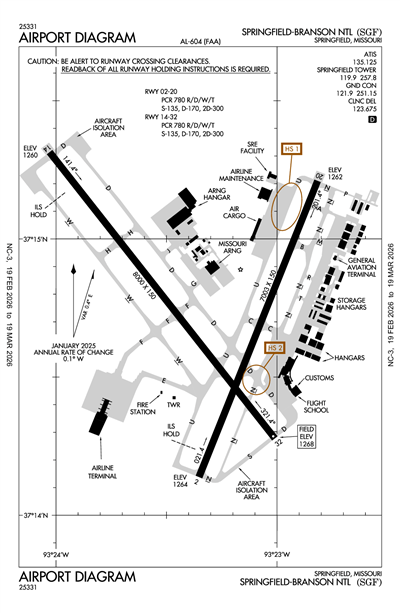

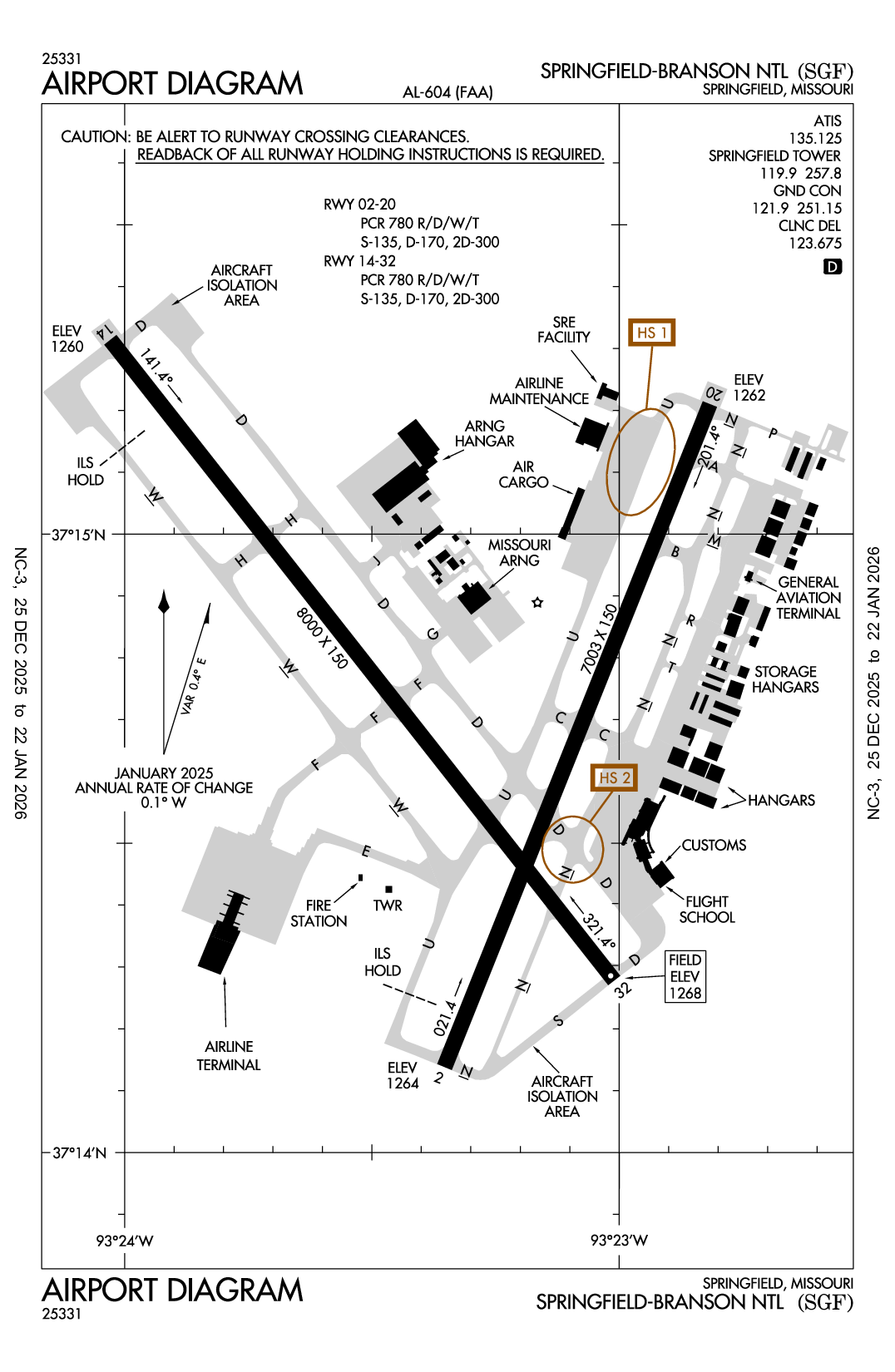

SPRINGFIELD-BRANSON NTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSGF
SPRINGFIELD-BRANSON NTL
PublicPUB

5 miles NW of SPRINGFIELD, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 14' 44"N 93° 23' 19"W
1268' MSL
2268' MSL
03E
JET A, 100LL
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
5/16/24-6/13/24
KSGF MVFR
11:30 PM CDT
Overcast 1,100'
Scattered 500'
10sm
65°F
64°F
29.95"Hg
280° 4kts
AO2 LTG DSNT SE T01830178
KSGF 010430Z 28004KT 10SM SCT005 OVC011 18/18 A2995 RMK AO2 LTG DSNT SE T01830178
Add Your Business

KSGF FBOs

Promote Listing
Midwest Premier SGF Aviation
UNICOM: 122.95
Phone: (417) 868-0590
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.45 5.97
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 135.125

Approach/Departure

APCH/P DEP/P
020-199
 121.1
APCH/P DEP/P IC
200-019
 124.95

Clearance Delivery

CD/P
 123.675

Ground

GND/P
 121.9

Tower

LCL/P
 119.9

Other

ARNG OPS
BEARS DEN
 38.525
ARNG OPS
BEARS DEN
 138.75
CLASS C
020-199
 121.1
CLASS C
200-019
 124.95

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSGF
Fri, 5/31 10:16 PM CDT
Fri, 5/31 10:00 PM CDT - Sat, 6/1 7:00 PM CDT
LIFR
10:00 PM CDT - 11:00 PM CDT
Broken 1,200'
Broken 400'
6sm
VRB° 3kts
LIFR
11:00 PM CDT - 1:00 AM CDT
Mist
Overcast 400'
5sm
180° 5kts
LIFR
1:00 AM CDT - 11:00 AM CDT
Mist
Broken 400'
2sm
VRB° 4kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Broken 1,300'
6sm
310° 8kts
MVFR
1:00 PM CDT - 3:00 PM CDT
Broken 2,400'
6sm
310° 9kts
VFR
3:00 PM CDT - 7:00 PM CDT
Broken 4,000'
6sm
300° 9kts
KSGF 010316Z 0103/0124 VRB03KT P6SM BKN004 BKN012
   FM010400 18005KT 5SM BR OVC004
   FM010600 VRB04KT 2SM BR BKN004
   FM011600 31008KT P6SM BKN013
   FM011800 31009KT P6SM BKN024
   FM012000 30009KT P6SM BKN040
KSGF
Domestic
5/31/241711Z !SGF 05/142 SGF RWY 20 FICON 5/5/5 100 PCT WET OBS AT 2405311711. 2405311711-2406011711
5/31/241710Z !SGF 05/141 SGF RWY 14 FICON 5/5/5 100 PCT WET OBS AT 2405311709. 2405311710-2406011710
5/30/241431Z !SGF 05/130 SGF TWY N TWY DIRECTION SIGN NORTH SIDE FOR TWY R LGT U/S 2405301431-2406282100
5/30/240426Z !SGF 05/129 SGF OBST TOWER LGT (ASR 1307752) 371527.05N0933432.54W (9.0NM W SGF) 1451FT (315FT AGL) U/S 2405300426-2406292359
5/20/241559Z !SGF 05/100 SGF TWY H TWY DIRECTION SIGN EAST SIDE BTN RWY 14/32 AND TWY D LGT U/S 2405201559-2406212030
5/20/241559Z !SGF 05/098 SGF TWY H TWY DIRECTION SIGN WEST SIDE BTN RWY 14/32 AND TWY D LGT U/S 2405201559-2406212030
5/18/240952Z !SGF 05/088 SGF TWY D MIL SIGN FOR TWY G LGT U/S 2405180952-2406072100
5/18/240951Z !SGF 05/087 SGF TWY E TWY DIRECTION SIGN FOR AIRLINE TERMINAL RAMP LGT U/S 2405180951-2406072100
5/18/240947Z !SGF 05/086 SGF TWY N TWY DIRECTION SIGN FOR TWY T LGT U/S 2405180947-2406072100
5/18/240946Z !SGF 05/085 SGF TWY J TWY DIRECTION SIGN FOR TWY D LGT U/S 2405180946-2406072100
5/15/240353Z !SGF 05/070 SGF TWY E LOCATION SIGN BTN AIRLINE TERMINAL RAMP AND TWY U LGT U/S 2405150353-2406012000
5/8/242222Z !SGF 05/043 SGF OBST TOWER LGT (ASR 1321936) 370322.11N0932159.22W (11.4NM S SGF) 1496FT (258FT AGL) U/S 2405082222-2406222222
5/6/240403Z !SGF 05/022 SGF RWY 32 TWY DIRECTION SIGN LEFT SIDE LGT U/S 2405060403-2406072100
5/6/240402Z !SGF 05/020 SGF TWY W TWY DIRECTION SIGN FOR TWY H LGT U/S 2405060402-2406072100
4/30/241209Z !SGF 04/090 SGF TWY H TWY DIRECTION SIGN WEST SIDE BTN RWY 14/32 AND TWY W LGT U/S 2404301209-2406212000
4/29/241446Z !SGF 04/088 SGF TWY N TWY DIRECTION SIGN BTN APCH END RWY 02 AND RWY 14/32 LGT U/S 2404291446-2406212000
4/29/241443Z !SGF 04/087 SGF TWY N TWY DIRECTION SIGN SOUTHWEST SIDE BTN APCH END RWY 02 AND TWY S LGT U/S 2404291443-2406212000
4/29/241439Z !SGF 04/086 SGF TWY S TWY DIRECTION SIGN SOUTHWEST SIDE BTN APCH END RWY 32 AND TWY N LGT U/S 2404291439-2406212000
4/15/241600Z !SGF 04/038 SGF TWY A INFO SIGN BTN GA RAMP AND TWY N LGT U/S 2404151600-2406142000
4/13/241145Z !SGF 04/033 SGF OBST TOWER LGT (ASR 1240536) 370718.60N0932813.90W (8.4NM SSW SGF) 1433.1FT (129.9FT AGL) U/S 2404131145-2407120400
3/22/242318Z !SGF 03/060 SGF OBST TOWER LGT (ASR 1024419) 371104.00N0933825.00W (12.6NM WSW SGF) 1581.7FT (370.7FT AGL) U/S 2403222318-2406302359
FDC
5/31/241312Z !FDC 4/1239 SGF IAP U.S. DOD SPRINGFIELD-BRANSON NTL, SPRINGFIELD, MO.
HI - TACAN RWY 20, AMDT 1...
ILS OR LOC RWY 14, ORIG-C...
ILS OR LOC RWY 2, AMDT 19...
VOR OR TACAN RWY 20, AMDT 18E...
VOR/DME OR TACAN RWY 2, ORIG-D...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SGF VORTAC UNMONITORED. 2405311312-2406301312EST
4/9/241647Z !FDC 4/8550 SGF IAP U.S. DOD SPRINGFIELD-BRANSON NTL, SPRINGFIELD, MO.
HI - TACAN RWY 20, AMDT 1...
CIRCLING CAT D MDA 1920/HAA 652, CAT E MDA 2080/HAA 812.
MONETT ALTIMETER CIRCLING CAT D MDA 2020/HAA 752, CAT E MDA 2180/HAA 912.
2404091647-2604091639EST
8/22/231512Z !FDC 3/9090 SGF IAP SPRINGFIELD-BRANSON NTL, SPRINGFIELD, MO.
RNAV (GPS) RWY 32, AMDT 2B...
LNAV/VNAV DA 1670/HAT 402.
2308221512-2508221512EST
Yes
ALL
CITY OF SPRINGFIELD
2300 N AIRPORT BLVD, SUITE 100
SPRINGFIELD, MO 65802
Phone: 417-868-0500
MR. BRIAN C WEILER, A.A.E.
2300 N AIRPORT BLVD, SUITE 100
SPRINGFIELD, MO 65802
Phone: 417-868-0500
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
SGF
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
73
6
33
3
10
0
Major
Major
None
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

7003 ft. x 150 ft.
CONC
Good
GRVD
HIGH
60 /R/C/W/T
135,000lbs
170,000lbs
300,000lbs
--
  Runway 02 Runway 20
True Heading 22°202°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 14' 08"N 37° 15' 13"N
Longitude 93° 23' 21"W 93° 22' 49"W
Elevation 1,264' 1,262'
Threshold Crossing Height 54 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR MALS
Centerline Lights
Runway End Identifier Lights

Runway 14/32

8000 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
60 /R/C/W/T
135,000lbs
170,000lbs
300,000lbs
--
  Runway 14 Runway 32
True Heading 142°322°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 37° 15' 19"N 37° 14' 17"N
Longitude 93° 24' 02"W 93° 23' 01"W
Elevation 1,260' 1,268'
Threshold Crossing Height 56 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes
A110-1BE ALERT FOR POWERED PRCHT ACT INVOF DOWNTOWN ARPT (7 MI ENE OF SGF) AT OR BLO 1,000 FT.
A110-11ARNG - MO-AVCRAD FAC OPR 1300-2100Z++ MON-FRI EXC HOL. MAINT ASST AVBL DUR NML DUTY HR. FLT ACT OPR 1400-2130Z++ MON-FRI EXC HOL. EXTN HR ON TUES, WED, THU 1400-0200Z++. DUR DST EXTN HR ONLY ON WED, THUR 1400-0500Z++. ARNG-24 HR PPR REQ, VALID 1 HR +/- ETA. FOR PPR, CTC FLT OPS AT C417-874-8460 DUR NML DUTY HR. ALL ACFT RQR CTC BEARS DEN ON 38.525, 138.75 AND 245.6 DEP ACFT RQR TO CTC BEARS DEN TO ADHERE TO ARPT SECURITY MEASURES. TRAN ACFT SHALL ARR AND DEP FR TWY G OR TWY J. A++ FUEL AVBL FOR SUPPORTED AVCRAD ACFT. RWY - ALL RWY GROOVED. RWY 02 RVR-T. TWY 20 RVR-R. RWY 14 RVR-T. RWY 32 RVR-R.
A110-2BIRDS & WILDLIFE ON & INVOF ARPT.
A110-5TWY N SOUTH OF RY 14-32 CLSD TO A-321, B727-200, ALL MD 80 SERIES, B-757 AND LARGER ACFT.
A110-8COMPASS ROSE NORTH OF TWY D AT THE APCH END RWY 32 RESTRICTED TO ACFT WITH FLUX VALVE & STBY COMPASS OF 5.5 FT IN HGT OR HYR.
A110-9GROUP IV ACFT OR LRGR ON TWY D FROM THE AER 32 TO TWY N AND TWY U ALG CARGO APN MUST PERFORM JUDGMENTAL OVERSTEERING INSTEAD OF COCKPIT OVER CNTRLN WHEN TAX.
SPRINGFIELD-BRANSON NTL (ICAO: KSGF, IATA: SGF) is a public airport located in SPRINGFIELD, MO.
