SHERMAN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSWI
SHERMAN MUNI
PublicPUB

1 miles SE of SHERMAN, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 37' 27"N 96° 35' 10"W
746' MSL
1746' MSL
03E
100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KGYI (7nm) VFR
5:55 AM CDT
Clear
10sm
70°F
64°F
30.00"Hg
100° 5kts
AO2 T02100178 TSNO
KGYI 121055Z AUTO 10005KT 10SM CLR 21/18 A3000 RMK AO2 T02100178 TSNO
Add Your Business

KSWI FBOs

Promote Listing
Sherman Municipal Airport
UNICOM: 122.8
Phone: (903) 891-4035
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 6/5
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.12
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

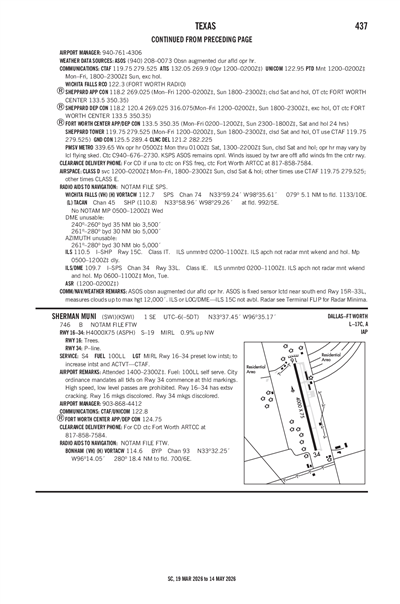

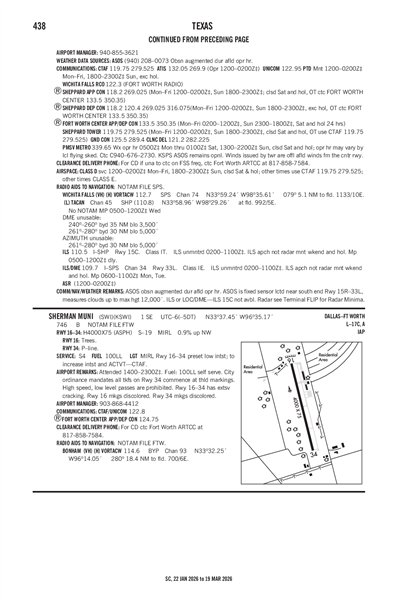

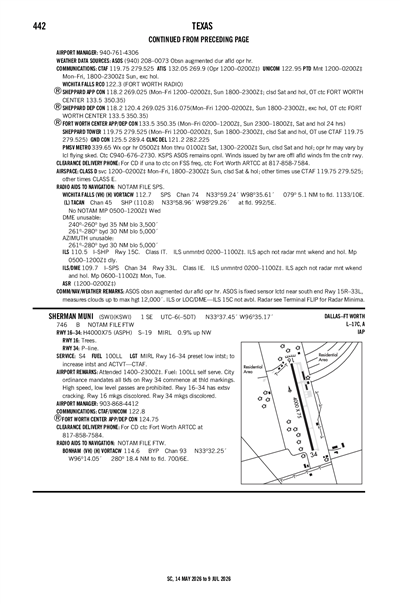

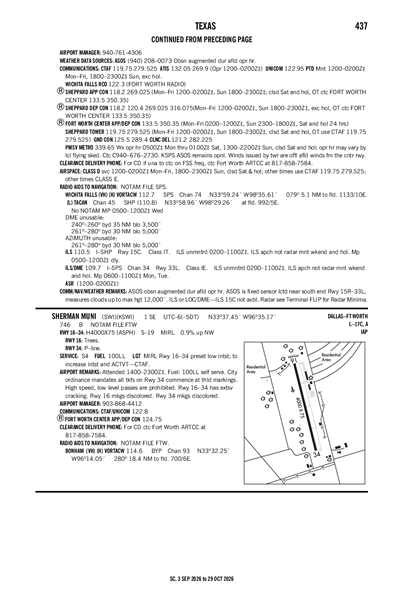

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDUA (21nm)
Wed, 6/12 12:20 AM CDT
Wed, 6/12 1:00 AM CDT - Thu, 6/13 1:00 AM CDT
VFR
1:00 AM CDT - 1:00 AM CDT
Scattered 25,000'
6sm
VRB° 5kts
KDUA 120520Z 1206/1306 VRB05KT P6SM SCT250
KSWI
Domestic
6/10/240522Z !FTW 06/412 SWI OBST TOWER LGT (ASR 1224622) 334116.20N0962828.40W (6.8NM NE SWI) 822.8FT (259.8FT AGL) U/S 2406100522-2406250422
FDC
1/8/241400Z !FDC 4/1453 SWI IAP SHERMAN MUNI, SHERMAN, TX.
RNAV (GPS) RWY 34, ORIG-A...
LP MDA 1300/HAT 561 ALL CATS, VIS CAT C 1 5/8. LNAV MDA 1300/HAT 561 ALL CATS, VIS CAT C 1 5/8. TEMPORARY CRANE 969 MSL 1.3NM S OF RWY 34 (2023-ASW-14596-OE).
2401081400-2504241502EST
1/8/241400Z !FDC 4/1452 SWI ODP SHERMAN MUNI, SHERMAN, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 16, 300 - 1 5/8, OR STANDARD WITH MINIMUM CLIMB OF 321FT PER NM TO 1200. TEMPORARY CRANE 969 MSL 1.3NM S OF RWY 34
(2023-ASW-14596-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2401081400-2504241502EST
No
0800-1700
CITY OF SHERMAN
PO BOX 1106
SHERMAN, TX 75090
Phone: 903-892-4547
JOHN HOOKER
1200 S. DEWEY AVE
SHERMAN, TX 75090
Phone: 903-868-4412
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
MIRL RWY 16/34 PRESET LOW INTST; TO INCR INTST AND ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
23
0
0
0
0
0
Major
Major
None
None
None

Runway 16/34

4000 ft. x 75 ft.
ASPH
Fair
NONE
MED

19,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 166°346°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 37' 46"N 33° 37' 08"N
Longitude 96° 35' 16"W 96° 35' 04"W
Elevation 746' 712'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1CITY ORDINANCE MANDATES ALL TAKE-OFFS ON RY 34 COMMENCE AT THLD MARKINGS. HIGH SPEED, LOW LEVEL PASSES ARE PROHIBITED.
A110-2WINDSOCK NOT VISIBLE FROM RWY 16 END.
A110-3FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-4TWY MKGS & HOLD SHORT LINES POOR. HOLD LINE SIGNS NSTD WHITE.
SHERMAN MUNI (ICAO: KSWI, IATA: SWI) is a public airport located in SHERMAN, TX.
