TRUTH OR CONSEQUENCES MUNI - Airport Diagram

KTCS

TRUTH OR CONSEQUENCES MUNI

PublicPUB

6 miles N of TRUTH OR CONSEQUENCES, NM

View on Map

Status

Operational

Coordinates

33° 14' 07"N 107° 16' 12"W

Elevation

4862' MSL

Pattern Alt

5862' MSL

Mag Variation

13E

Fuel

JET A-1+, 100LL

FSS

ALBUQUERQUE (ABQ)

Sectional

ALBUQUERQUE

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

5/16/24-6/13/24

KTCS VFR

8:53 PM MDT RAW

Clear

Viz

10sm

Temp

85°F

Dew

14°F

Pres

29.93"Hg

Wind

200° 10kts

RMK

AO2 SLP041 T02941100 53007

KTCS 010253Z AUTO 20010KT 10SM CLR 29/M10 A2993 RMK AO2 SLP041 T02941100 53007

Add Your Business

KTCS FBOs

Promote Listing

Truth or Consequences Municipal Airport

UNICOM: 122.8

Phone: (575) 894-6199

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 5/30	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.18
Full Serve	6.58		4.14

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

ASOS

575-894-2909

120.675

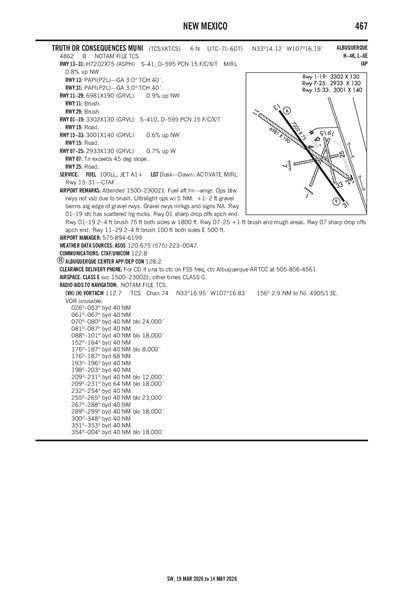

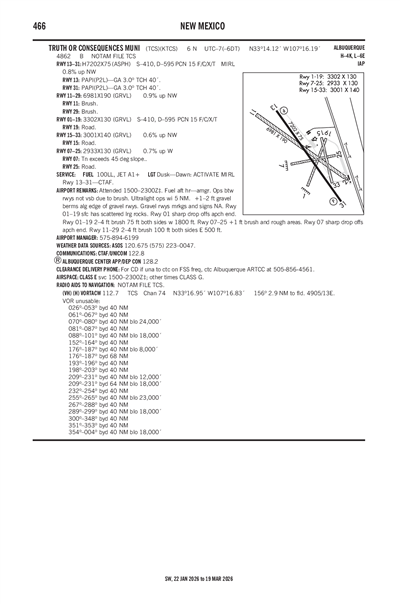

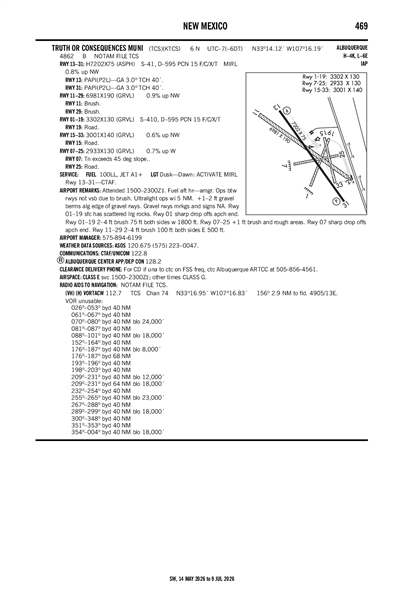

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KTCS

RAW

Reported

Fri, 5/31 5:20 PM MDT

Valid

Fri, 5/31 6:00 PM MDT - Sat, 6/1 6:00 PM MDT

VFR

6:00 PM MDT - 10:00 PM MDT

Few 20,000'
Few 12,000'

Viz

6sm

Wind

200° 12kts

Gusts 20kts

VFR

10:00 PM MDT - 12:00 PM MDT

Few 25,000'

Viz

6sm

Wind

310° 6kts

VFR

12:00 PM MDT - 6:00 PM MDT

Few 11,000'

Viz

6sm

Wind

190° 12kts

Gusts 20kts

KTCS 312320Z 0100/0124 20012G20KT P6SM FEW120 FEW200
FM010400 31006KT P6SM FEW250
FM011800 19012G20KT P6SM FEW110

KTCS

Domestic
5/31/241721Z	!TCS 05/005 TCS AD AP ABN U/S 2405311721-2406072359
12/15/231611Z	!TCS 12/003 TCS NAV VOR GND REC CHECKPOINT U/S 2312151611-2406152111EST

ATC Tower

Attendance

0800-1600

Owner

CITY OF TRUTH OR CONSEQUENCES
505 SIMS
TRUTH OR CONSEQUENCE, NM 87901
Phone: 575-894-6673

Manager

CHAD ROSACKER
505 SIMS
TRUTH OR CONSEQUENCE, NM 87901
Phone: 575-894-6199

FSS

ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF

NOTAM

TCS

Light Schedule

Lights

DUSK-DAWN: ACTVT MIRL RWY 13/31 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 01/19

Dimensions

3302 ft. x 130 ft.

Surface Type

GRVL

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 01	Runway 19
True Heading	21°	201°
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	33° 13' 47"N	33° 14' 18"N
Longitude	107° 16' 14"W	107° 15' 60"W
Elevation	4,812'	4,818'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 07/25

Dimensions

2933 ft. x 130 ft.

Surface Type

GRVL

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	79°	259°
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	33° 14' 01"N	33° 14' 07"N
Longitude	107° 16' 26"W	107° 15' 53"W
Elevation	4,828'	4,809'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

Dimensions

6981 ft. x 190 ft.

Surface Type

GRVL

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 11	Runway 29
True Heading	125°	305°
Traffic Pattern
Markings
Markings Condition
Latitude	33° 14' 33"N	33° 13' 53"N
Longitude	107° 16' 53"W	107° 15' 46"W
Elevation	4,862'	4,799'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

Dimensions

7202 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

15 /F/C/X/T

Single Wheel

410,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	145°	325°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	33° 14' 36"N	33° 13' 38"N
Longitude	107° 16' 37"W	107° 15' 48"W
Elevation	4,853'	4,794'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

Dimensions

3001 ft. x 140 ft.

Surface Type

GRVL

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 15	Runway 33
True Heading	167°	347°
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	33° 14' 18"N	33° 13' 49"N
Longitude	107° 16' 03"W	107° 15' 55"W
Elevation	4,821'	4,803'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	OPS BTW RWYS NOT VSB DUE TO BRUSH.
A110-3	ULTRALIGHT OPS WI 5 NM.
A110-4	+1-2 FT GRAVEL BERMS ALG EDGE OF GRAVEL RWYS. GRAVEL RWYS MRKGS & SIGNS NA.
A110-6	FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A110-9	FUEL AFT HR - AMGR.

TRUTH OR CONSEQUENCES MUNI (ICAO: KTCS, IATA: TCS) is a public airport located in TRUTH OR CONSEQUENCES, NM.
