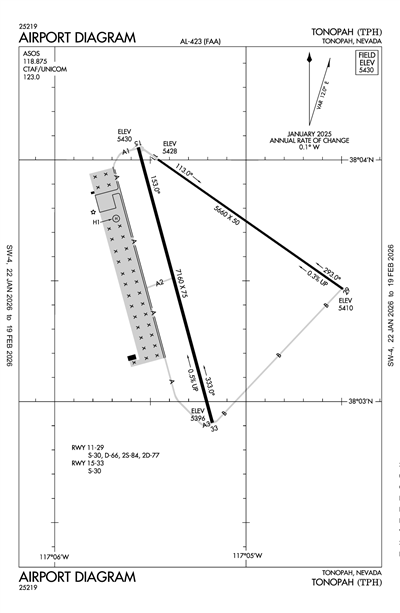

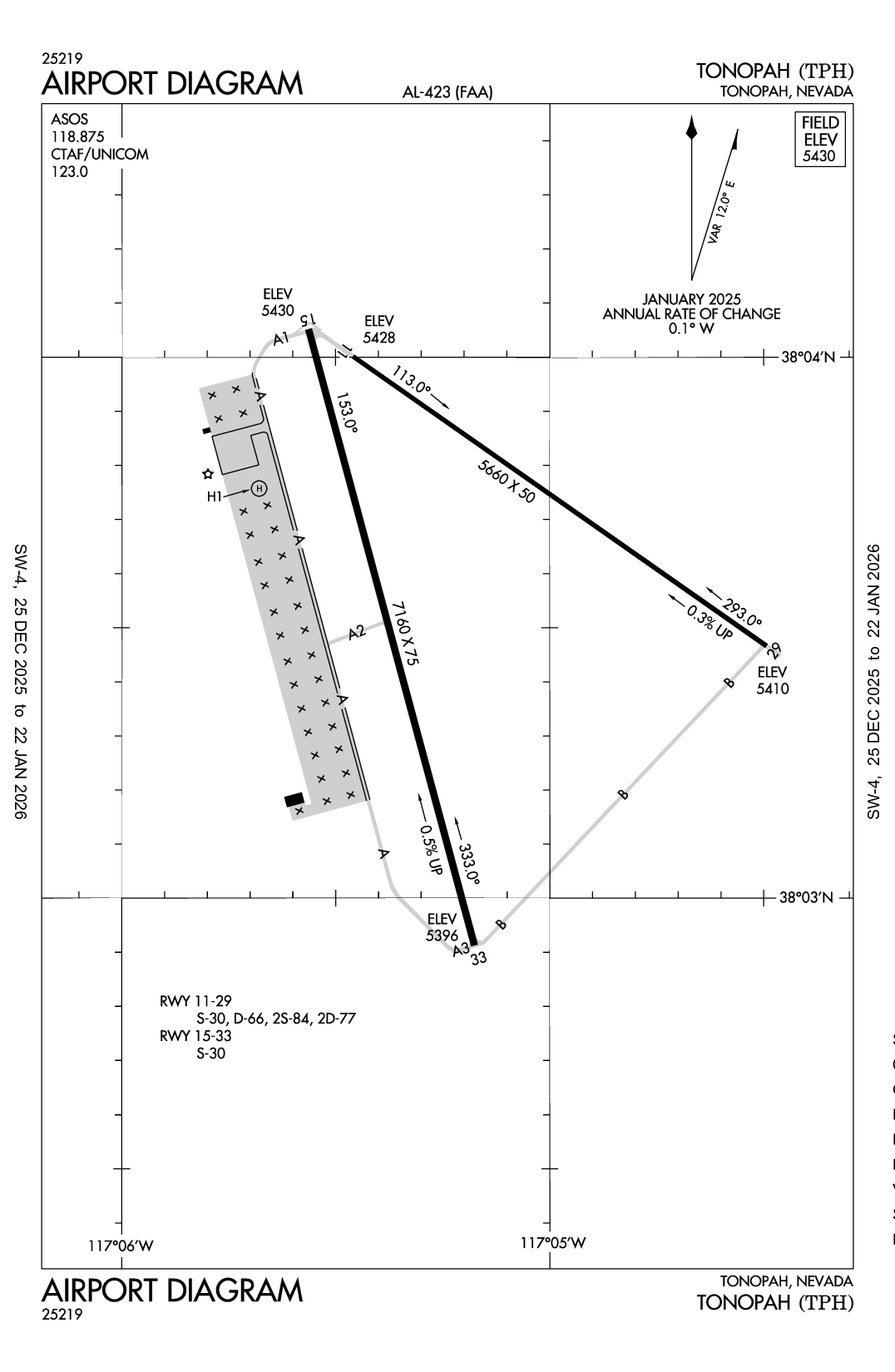

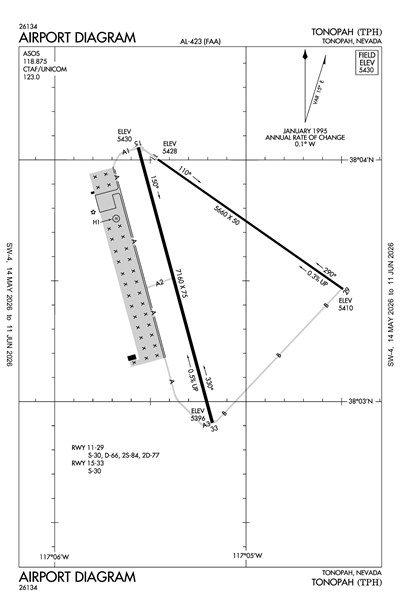

TONOPAH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTPH
TONOPAH
PublicPUB

7 miles E of TONOPAH, NV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 03' 36"N 117° 05' 12"W
5430' MSL
6430' MSL
15E
JET A, 100LL
RENO (RNO)
LAS VEGAS
LOS ANGELES (ZLA)
5/16/24-6/13/24
KTPH VFR
6:56 PM PDT
Clear
10sm
82°F
20°F
29.94"Hg
320° 5kts
AO2 SLP065 T02781067
KTPH 010156Z AUTO 32005KT 10SM CLR 28/M07 A2994 RMK AO2 SLP065 T02781067
Add Your Business

KTPH FBOs

Promote Listing
Desert Flying Service
UNICOM: 123.0
Phone: (775) 482-3626
Other: (775) 482-5107
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.40 6.40
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
775-482-3441
 118.875

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTPH
Fri, 5/31 4:20 PM PDT
Fri, 5/31 5:00 PM PDT - Sat, 6/1 5:00 PM PDT
VFR
5:00 PM PDT - 7:00 PM PDT
Scattered 25,000'
Few 12,000'
6sm
240° 6kts
VFR
7:00 PM PDT - 11:00 PM PDT
Scattered 12,000'
6sm
260° 8kts
VFR
11:00 PM PDT - 11:00 AM PDT
Broken 25,000'
6sm
340° 8kts
VFR
11:00 AM PDT - 5:00 PM PDT
Few 10,000'
6sm
250° 10kts
KTPH 312320Z 0100/0124 24006KT P6SM FEW120 SCT250
   FM010200 26008KT P6SM SCT120
   FM010600 34008KT P6SM BKN250
   FM011800 25010KT P6SM FEW100
KTPH
Domestic
3/18/241116Z !TPH 03/003 TPH COM REMOTE COM OUTLET 122.5 U/S 2403181116-2408302000EST
FDC
4/26/241738Z !FDC 4/5740 TPH IAP TONOPAH, TONOPAH, NV.
VOR OR GPS-A, AMDT 3C...
PLANVIEW NOTE: MAXIMUM 210 KIAS HOLDING AT TPH VORTAC. MISSED APPROACH: CLIMB TO 6400 THEN CLIMBING RIGHT TURN TO 9400 DIRECT TPH VORTAC, CONTINUE CLIMB IN HOLD TO 9400.
CHART NOTE: CIRCLING RWY 11 NA AT NIGHT.
2404261738-2604261738EST
No
0600-2300
NYE COUNTY
P O BOX 1031
TONOPAH, NV 89049
Phone: (775) 209-4174
THOMAS BOLLING
2041 E. CALVADA BLVD. N. SUITE #3, 250 N. HWY 160 #2
PAHRUMP, NV 89048
Phone: 775-751-6270
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
TPH
--
ACTVT PAPI RWY 15; MIRL RWY 15/33 & 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Buoy, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
5
1
0
1
0
0
Major
Major
Low Pressure
None
Air Ambulance

Runway 11/29

5660 ft. x 50 ft.
ASPH
L
NONE
MED

30,000lbs
66,000lbs
77,000lbs
--
  Runway 11 Runway 29
True Heading 125°305°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 38° 04' 00"N 38° 03' 28"N
Longitude 117° 05' 28"W 117° 04' 30"W
Elevation 5,428' 5,410'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 15/33

7160 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 165°345°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 04' 03"N 38° 02' 55"N
Longitude 117° 05' 34"W 117° 05' 11"W
Elevation 5,430' 5,396'
Threshold Crossing Height 41 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

48 ft. x 48 ft.
ASPH
Good
AFSC


--
--
--
--
  Runway H1 Runway
True Heading 72°252°
Traffic Pattern
Markings NSTD
Markings Condition GOOD
Latitude 38° 03' 46"N N/A
Longitude 117° 05' 41"W N/A
Elevation 5,420' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD, IF UNA TO CTC ON FSS FREQ, CTC NELLIS APCH AT 702-652-4172.
TONOPAH (ICAO: KTPH, IATA: TPH) is a public airport located in TONOPAH, NV.
