KTTF

CUSTER

PublicPUB

2 miles NW of MONROE, MI

View on Map

Status

Operational

Coordinates

41° 56' 24"N 83° 26' 05"W

Elevation

616' MSL

Pattern Alt

1616' MSL

Mag Variation

05W

Fuel

JET A (FSII), 100LL

FSS

LANSING (LAN)

Sectional

DETROIT

ARTCC

CLEVELAND (ZOB)

Data Effective

5/16/24-6/13/24

KTTF VFR

1:15 AM EDT RAW

Clear

Viz

10sm

Temp

55°F

Dew

53°F

Pres

30.20"Hg

Wind

Calm

RMK

AO2 T01280118

KTTF 010515Z AUTO 00000KT 10SM CLR 13/12 A3020 RMK AO2 T01280118

Add Your Business

KTTF FBOs

Promote Listing

Monroe Aviation School of Flight

UNICOM: 122.7

Phone: (734) 384-9616

0 Reviews (Read | Sign In To Write)

Independent

As of 5/21	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.99
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.7 CTAF 122.7

AWOS-3

734-384-0259

119.075

FAA A/FD Pages

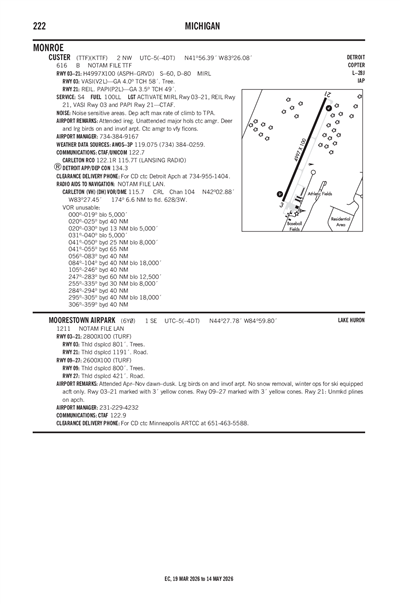

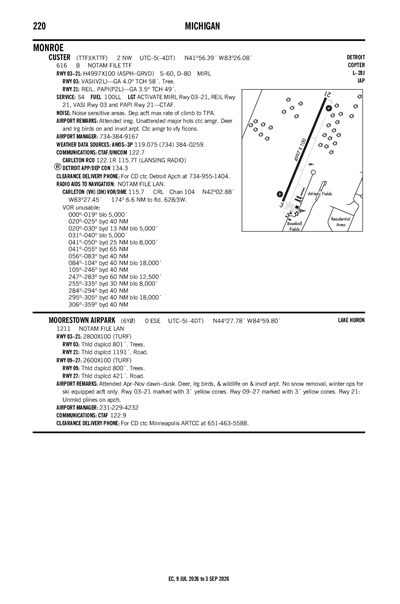

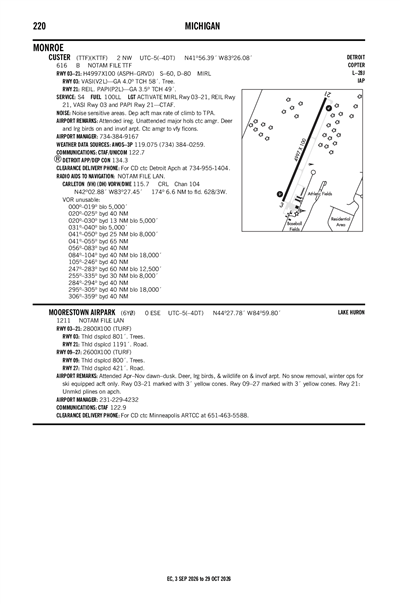

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

Hotspot

No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KDTW (18nm)

RAW

Reported

Sat, 6/1 1:20 AM EDT

Valid

Sat, 6/1 2:00 AM EDT - Sun, 6/2 8:00 AM EDT

VFR

2:00 AM EDT - 11:00 AM EDT

Few 25,000'

Viz

6sm

Wind

160° 4kts

VFR

11:00 AM EDT - 7:00 PM EDT

Broken 25,000'

Viz

6sm

Wind

170° 10kts

VFR

7:00 PM EDT - 10:00 PM EDT

Overcast 15,000'

Viz

6sm

Wind

150° 8kts

VFR

10:00 PM EDT - 8:00 AM EDT

Light Rain

Overcast 8,000'

Viz

6sm

Wind

170° 6kts

KDTW 010520Z 0106/0212 16004KT P6SM FEW250
   FM011500 17010KT P6SM BKN250
   FM012300 15008KT P6SM OVC150
   FM020200 17006KT P6SM -RA OVC080

KTTF

Domestic
5/29/242051Z	!TTF 05/004 TTF OBST TOWER LGT (ASR 1000332) 415327.00N0832546.00W (3.0NM S TTF) 1016.7FT (416.7FT AGL) U/S 2405292051-2406122359
5/29/241006Z	!TTF 05/003 TTF OBST TOWER LGT (ASR 1016298) 415338.40N0832109.90W (4.6NM SE TTF) 895.0FT (315.9FT AGL) U/S 2405291006-2407131005
4/23/241220Z	!TTF 04/005 TTF RWY 21 PAPI U/S 2404231220-2410232111EST
1/19/241920Z	!TTF 01/008 TTF RWY 03 VASI U/S 2401191920-2407212111EST
8/7/231435Z	!TTF 08/002 TTF AD AP JET A FUEL NOT AVBL 2308071435-2408062359

ATC Tower

Attendance

0800-1700
UNATNDD MAJOR HOLS CTC AMGR.

Owner

CITY OF MONROE
120 E 1ST ST
MONROE, MI 48161-2283
Phone: 734-384-9125

Manager

DANIEL DIESING
2800 N CUSTER RD
MONROE, MI 48162-3537
Phone: 734-384-9616

FSS

LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF

NOTAM

TTF

Light Schedule

Lights

ACTVT VASI RWY 03; PAPI RWY 21; REIL RWY 21; MIRL RWY 03/21 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental

Runway 03/21

Dimensions

4997 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

60,000lbs

Double Wheel

80,000lbs

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	22°	202°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	41° 56' 01"N	41° 56' 46"N
Longitude	83° 26' 17"W	83° 25' 52"W
Elevation	611'	615'
Threshold Crossing Height	58 ft. AGL	49 ft. AGL
Visual Glide Path Angle	4°	3.5°
Visual Slope Indicator	V2L	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	Yes

A110-1	BIRDS & DEER INVOF RWY.
A110-2	NOISE SENSITIVE AREAS. DEP ACFT MAX RATE OF CLIMB TO TPA.
A110-3	FOR CD CTC DETROIT APCH AT 734-955-1404.

CUSTER (ICAO: KTTF, IATA: TTF) is a public airport located in MONROE, MI.
