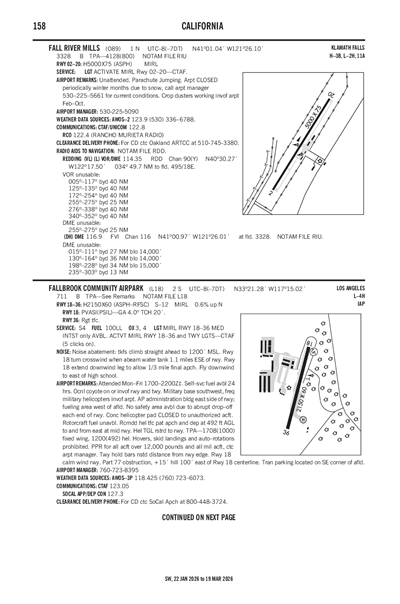

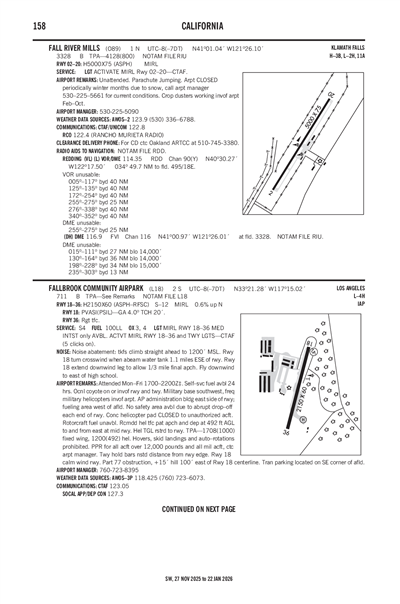

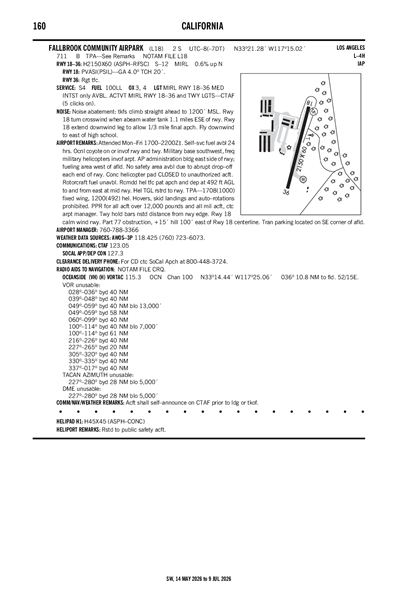

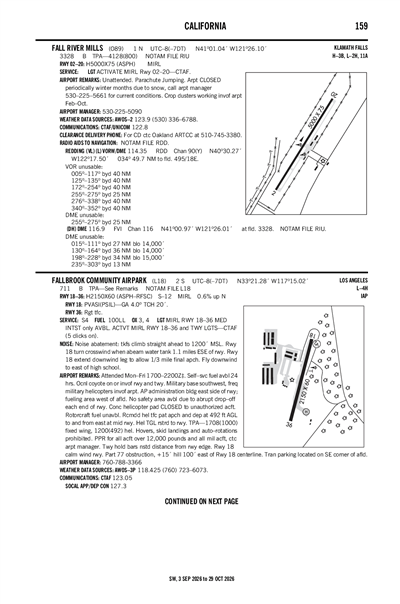

FALLBROOK COMMUNITY AIRPARK - Airport Diagram

L18

FALLBROOK COMMUNITY AIRPARK

PublicPUB

2 miles S of FALLBROOK, CA

View on Map

Status

Operational

Coordinates

33° 21' 15"N 117° 15' 03"W

Elevation

708' MSL

Pattern Alt

1708' MSL

Mag Variation

13E

Fuel

100LL

FSS

SAN DIEGO (SAN)

Sectional

LOS ANGELES

ARTCC

LOS ANGELES (ZLA)

Data Effective

5/16/24-6/13/24

KL18 MVFR

10:35 PM PDT RAW

Overcast 1,000'

Viz

10sm

Temp

57°F

Dew

55°F

Pres

29.94"Hg

Wind

Calm

RMK

AO2

KL18 010535Z AUTO 00000KT 10SM OVC010 14/13 A2994 RMK AO2

Add Your Business

L18 FBOs

Promote Listing

AHM

UNICOM: 123.05

Phone: (760) 431-7670

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 5/8	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.23
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 123.05

AWOS-3P

760-723-6073

118.425

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

FALLBROOK ONE (OBSTACLE)

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

GPS RWY 18

Terminal Area Forecast

KNFG (6nm)

RAW

Reported

Fri, 5/31 7:54 PM PDT

Valid

Fri, 5/31 8:00 PM PDT - Sat, 6/1 8:00 PM PDT

VFR

8:00 PM PDT - 9:00 PM PDT

Scattered 1,200'

Viz

6sm

Pres

29.91"Hg

Wind

VRB° 5kts

MVFR

Becoming 9:00 PM PDT - 11:30 AM PDT

Broken 1,200'

Viz

6sm

Pres

29.91"Hg

Wind

VRB° 5kts

MVFR

Temporary 2:00 AM PDT - 8:00 AM PDT

Mist

Overcast 1,000'

Viz

3.73sm

Wind

Calm

VFR

11:30 AM PDT - 4:00 PM PDT

Scattered 1,500'

Viz

6sm

Pres

29.88"Hg

Wind

220° 8kts

VFR

Becoming 4:00 PM PDT - 8:00 PM PDT

Scattered 1,500'

Viz

6sm

Pres

29.88"Hg

Wind

VRB° 5kts

TAF KNFG 0103/0203 VRB05KT 9999 SCT012 QNH2991INS
   BECMG 0104/0106 BKN012 QNH2991INS
   TEMPO 0109/0115 6000 BR OVC010
   FM011830 22008KT 9999 SCT015 QNH2988INS
   BECMG 0123/0201 VRB05KT QNH2989INS T16/0113Z T22/0120Z

L18

Domestic
6/6/241330Z	!L18 05/010 L18 RWY 18/36 CLSD 2406061330-2406061800
6/3/241200Z	!L18 05/009 L18 AD AP ALL SFC WIP DLY 1200-2359 2406031200-2406072359
6/3/241200Z	!L18 05/008 L18 RWY 18/36 CLSD 2406031200-2406031600
5/31/241300Z	!L18 05/004 L18 AD AP ALL SFC WIP 2405311300-2406010700
4/24/240552Z	!L18 04/009 L18 OBST TOWER LGT (ASR UNKNOWN) 332349.40N1173031.60W (13.2NM W L18) 428FT (25FT AGL) U/S 2404240552-2406080552

ATC Tower

Attendance

MON-FRI 0900-1400

Owner

COUNTY OF SAN DIEGO
1960 JOE CROSSON DRIVE
EL CAJON, CA 92020-1235
Phone: 619-956-4800

Manager

MEADOW CHASE
2155 SOUTH MISSION ROAD
FALLBROOK, CA 92028
Phone: 760-723-8395

FSS

SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF

NOTAM

L18

Light Schedule

Lights

MIRL RWY 18/36 MED INTST ONLY AVBL. ACTVT MIRL RWY 18/36 & TWY LGTS - CTAF (5 CLICKS ON).

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

Dimensions

2160 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

RFSC

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	194°	14°
Traffic Pattern	Left	Right
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	33° 21' 25"N	33° 21' 05"N
Longitude	117° 14' 60"W	117° 15' 06"W
Elevation	708'	699'
Threshold Crossing Height	20 ft. AGL	--
Visual Glide Path Angle	4°	--
Visual Slope Indicator	PSIL	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway H1

Dimensions

45 ft. x 45 ft.

Surface Type

ASPH CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H1	Runway
True Heading	74°	254°
Traffic Pattern
Markings
Markings Condition
Latitude	33° 21' 07"N	N/A
Longitude	117° 15' 01"W	N/A
Elevation	697'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	NO SAFETY AREA AVBL DUE TO ABRUPT DROP-OFF EACH END OF RWY.
A110-12	CONC HELIPAD CLOSED TO UNAUTHORIZED AIRCRAFT.
A110-13	AP ADMIN BLDG EAST SIDE OF RWY; FUELING AREA WEST OF AFLD.
A110-14	PART 77 OBSTRUCTION, +15 FT HILL 100 FT E OF RWY 18 CNTRLN.
A110-16	ROTORCRAFT FUEL UNAVBL. RCMDD HEL TFC PAT APCH AND DEP AT 492 FT AGL TO AND FROM EAST AT MID RWY. HEL TGL RSTRD TO RWY.
A110-17	HOVERS, SKID LANDINGS, AND AUTO-ROTATIONS PROHIBITED.
A110-19	RWY 18 CALM WIND RWY
A110-20	TRAN PRKG LCTD ON SE CORNER OF AFLD.
A110-21	OCNL COYOTE ON OR IN THE VICINITY OF RWY AND TWY.
A110-22	ACFT SHALL SELF-ANNOUNCE ON CTAF PRIOR TO LDG OR TKOF.
A110-23	FOR CD CTC SOCAL APCH AT 800-448-3724.
A110-4	NOISE ABATEMENT: TKOFS CLIMB STRAIGHT AHEAD TO 1200 FT MSL. RWY 18 TURN CROSSWIND WHEN ABEAM WATER TANK 1.1 MI ESE OF RWY. RWY 18 EXTEND DOWNWIND LEG TO ALLOW 1/3 MILE FINAL APCH. FLY DOWNWIND EAST OF HIGH SCHOOL.
A110-5	PPR FOR ALL ACFT OVER 12000 LBS AND ALL MIL ACFT, CTC AMGR.
A110-8	TWY HOLD BARS NON -STD DIST FM RY EDGE.
A110-9	MIL BASE SW, FRQ MIL HELS IN VICINITY OF ARPT.

FALLBROOK COMMUNITY AIRPARK (IATA: L18) is a public airport located in FALLBROOK, CA.
