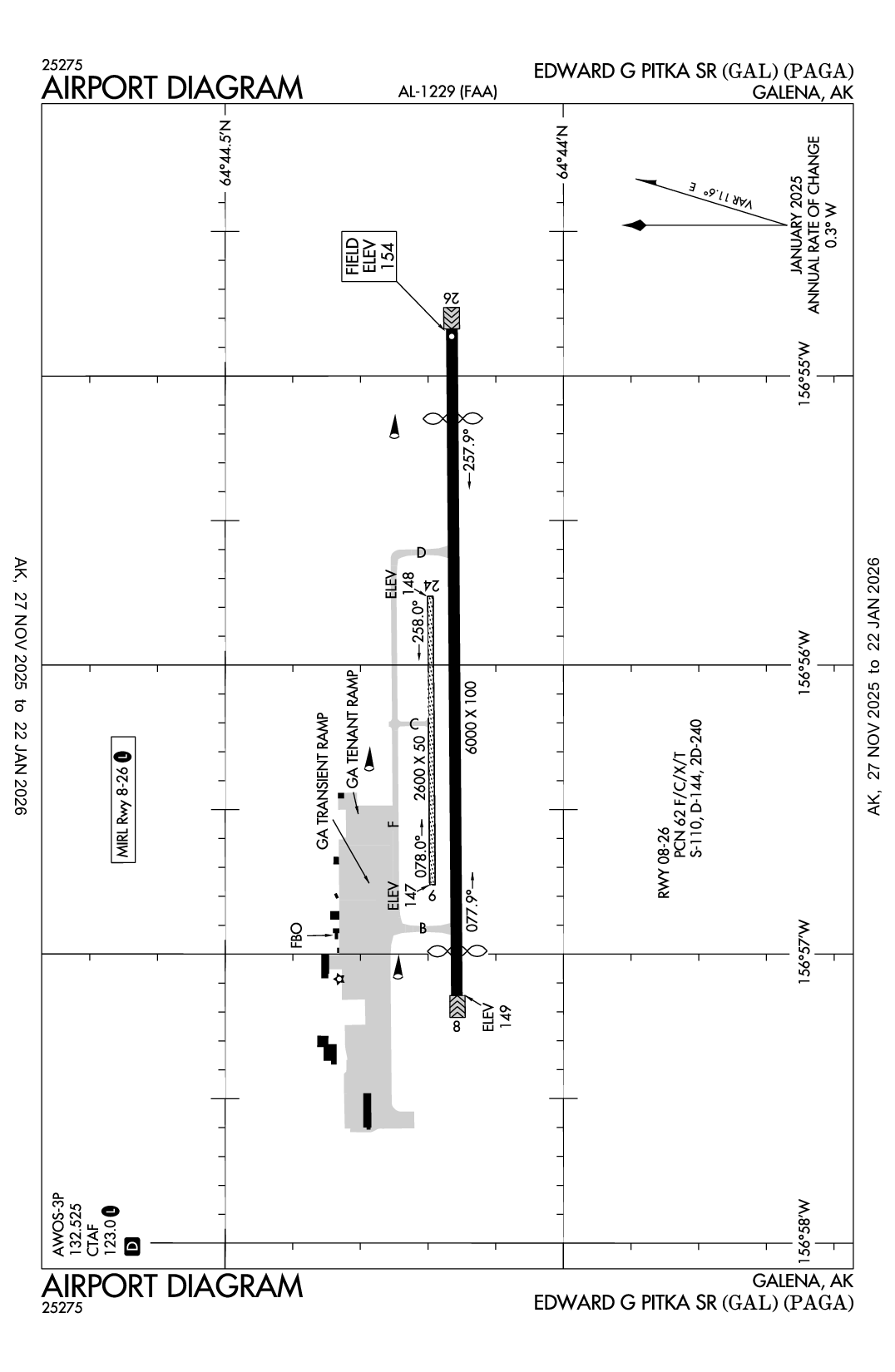

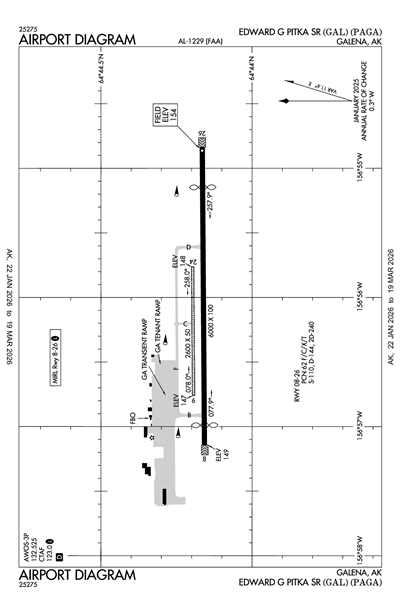

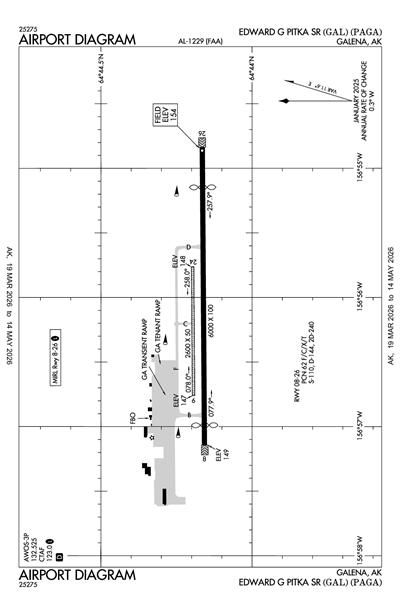

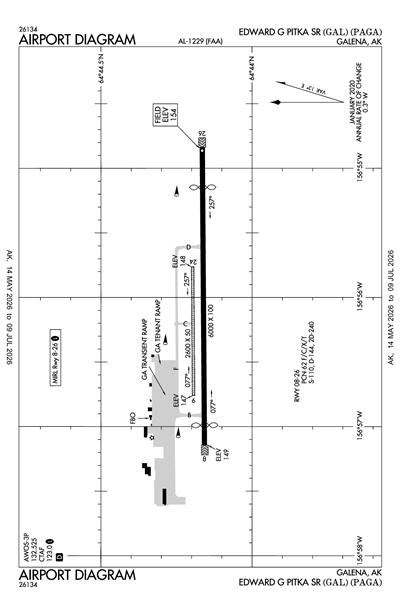

EDWARD G PITKA SR - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAGA
EDWARD G PITKA SR
PublicPUB

0 miles NW of GALENA, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
64° 44' 10"N 156° 56' 04"W
154' MSL
1154' MSL
13E
JET A, 100LL
FAIRBANKS (FAI)
FAIRBANKS
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAGA VFR
6:56 PM AKDT
Light Rain
Broken 11,000'
Scattered 8,000'
Few 4,100'
10sm
58°F
41°F
29.68"Hg
320° 6kts
Gusts 15kts
AO2 RAB42 SLP050 P0001 60001 T01440050 56020 TSNO $
PAGA 010256Z AUTO 32006G15KT 10SM -RA FEW041 SCT080 BKN110 14/05 A2968 RMK AO2 RAB42 SLP050 P0001 60001 T01440050 56020 TSNO $
Add Your Business

PAGA FBOs

Promote Listing
Crowley Aviation Fuels
Phone: (907) 656-1852
Other: (907) 656-7414
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 10.99 9.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.0

AWOS-3P

AWOS-3P
907-656-2483
 132.525

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAGA
Fri, 5/31 3:20 PM AKDT
Fri, 5/31 4:00 PM AKDT - Sat, 6/1 4:00 PM AKDT
VFR
4:00 PM AKDT - 1:00 AM AKDT
Showers in vicinity
Broken 12,000'
Broken 6,000'
6sm
VRB° 6kts
VFR
1:00 AM AKDT - 4:00 PM AKDT
Sky Clear
6sm
VRB° 3kts
PAGA 312320Z 0100/0124 VRB06KT P6SM VCSH BKN060 BKN120
   FM010900 VRB03KT P6SM SKC
PAGA
No NOTAM Available
No
OCT-APR MON-FRI 0600-1700
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99701
Phone: 907-451-5280
JASON LUDINGTON
BOX 9
GALENA, AK 99741
Phone: 907-451-5280
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
GAL
--
ACTVT MIRL RWY 08/26 - CTAF.
N/A
Yes
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 06/24

2600 ft. x 50 ft.
GRAVEL
Good
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 90°270°
Traffic Pattern
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 64° 44' 12"N 64° 44' 12"N
Longitude 156° 56' 46"W 156° 55' 46"W
Elevation 147' 148'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

6000 ft. x 100 ft.
ASPH
Fair
NONE
MED
62 /F/C/X/T
110,000lbs
144,000lbs
240,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 64° 44' 09"N 64° 44' 10"N
Longitude 156° 57' 09"W 156° 54' 50"W
Elevation 149' 154'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No
A110-13HAZUS RPRTG DURG DUTY HR UNLESS PRIOR ARNGMT IN WRITING - AMGR, PO BOX 09, GALENA AK 99741.
A110-14SNOW REMOVAL OPS - MONITOR CTAF.
A110-16ACFT MAY BE CLOSER TO LNDG SFC THAN IT APPEARS.
A110-23ULTRALIGHTS ON & INVOF ARPT.
A110-24WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV.
A110-25FUEL AVBL MON-FRI 0800-1700; AFT HR FEE - 907-656-1872.
A110-26(PAY PHONE) PAY PHONE AVAILABLE.
A110-8MAINT HRS 0800-1600 MON-FRI EXCP HOLS.
EDWARD G PITKA SR (ICAO: PAGA, IATA: GAL) is a public airport located in GALENA, AK.
