KAWAIHAPAI AIRFIELD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHDH
KAWAIHAPAI AIRFIELD
PublicPUB

2 miles W of MOKULEIA, HI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
21° 34' 46"N 158° 11' 50"W
14' MSL
800' MSL
11E
JET A, 100
HONOLULU (HNL)
HAWAIIAN ISLANDS
HONOLULU CONTROL FACILITY (ZHN)
5/16/24-6/13/24
PHHI (11nm) MVFR
7:01 PM HST
Light Drizzle
Overcast 2,000'
Few 900'
10sm
73°F
66°F
30.11"Hg
010° 3kts
AO2 DZB01 SLP188 $
PHHI 010501Z AUTO 01003KT 10SM -DZ FEW009 OVC020 23/19 A3011 RMK AO2 DZB01 SLP188 $
Add Your Business

PHDH FBOs

Promote Listing
North Shore Aviation Services
UNICOM: 123.0
Phone: (808) 637-8868
Other: (808) 341-9261
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/15
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.75
Fuel Notes
Prices include tax
Promote Listing
Honolulu Soaring
UNICOM: 123.0
Phone: (808) 677-3404
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

No communication frequencies available for this airport.

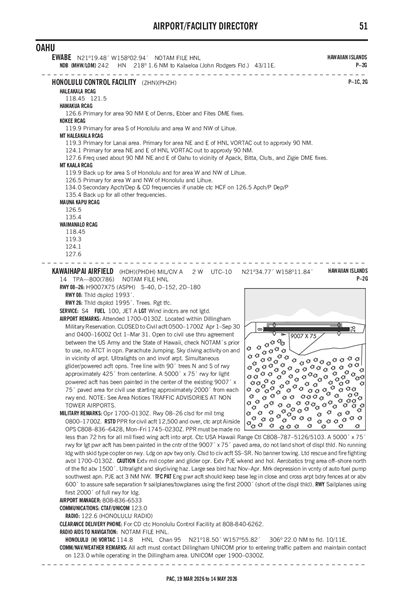

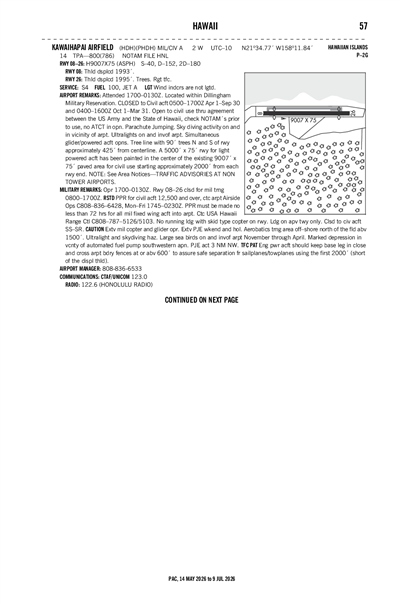

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PHHI (11nm)
Fri, 5/31 1:00 PM HST
Fri, 5/31 1:00 PM HST - Sat, 6/1 7:00 PM HST
MVFR
1:00 PM HST - 7:00 PM HST
Broken 4,500'
Broken 3,000'
6sm
30.09"Hg
070° 9kts
MVFR
Temporary 1:00 PM HST - 7:00 PM HST
Light Drizzle
Broken 2,000'
Few 800'
4.97sm
090° 12kts
Gusts 18kts
MVFR
Becoming 7:00 PM HST - 8:00 AM HST
Broken 3,000'
Broken 2,500'
6sm
30.09"Hg
VRB° 6kts
MVFR
Temporary 10:00 PM HST - 6:00 AM HST
Light Rain
Broken 2,000'
Scattered 1,400'
Few 600'
4.97sm
Calm
MVFR
Becoming 8:00 AM HST - 7:00 PM HST
Broken 3,000'
Scattered 2,000'
6sm
30.12"Hg
060° 9kts
VFR
Temporary 11:00 AM HST - 7:00 PM HST
No Clouds
N/A
080° 12kts
Gusts 18kts
TAF PHHI 312300Z 3123/0205 07009KT 9999 BKN030 BKN045 QNH3008INS
   TEMPO 3123/0105 09012G18KT 8000 -DZ FEW008 BKN020
   BECMG 0105/0106 VRB06KT 9999 BKN025 BKN030 QNH3010INS
   TEMPO 0108/0116 8000 -RA FEW006 SCT014 BKN020
   BECMG 0118/0119 06009KT 9999 SCT020 BKN030 QNH3012INS
   TEMPO 0121/0205 08012G18KT TX25/3123Z TN20/0115Z
PHDH
Domestic
5/26/240956Z !HNL 05/296 HDH OBST TOWER LGT (ASR 1005074) 213952.50N1580001.30W (11.1NM ENE HDH) 1256.9FT (214.9FT AGL) U/S 2405260956-2408240400
4/27/241030Z !HNL 04/279 HDH AD AP CLSD TO MIL FIXED WING ACFT OPS EXC 72HR PPR 808-787-5126 OR 808-787-5103 2404271030-2407110901
2/9/241700Z !HNL 02/123 HDH AIRSPACE PJE WI AN AREA DEFINED AS 3NM RADIUS OF HNL310021.5 SFC-17999FT DLY 1700-0500 2402091700-2408100500
No
0700-1530
US ARMY
USARPAC
HONOLULU, HAWAII, HI 96819
Phone: 808-656-1027
MALCOM SMITH
300 RODGERS BLVD NR 12
HONOLULU, HI 96819-1897
Phone: 808-836-6533
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
18
0
0
0
0
2
Major
Major
None
None
Glider Service
Pilot Instruction
Parachute Jump Activity

Runway 08/26

9007 ft. x 75 ft.
ASPH
Fair
NONE


40,000lbs
152,000lbs
180,000lbs
--
  Runway 08 Runway 26
True Heading 91°271°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 21° 34' 47"N 21° 34' 46"N
Longitude 158° 12' 38"W 158° 11' 03"W
Elevation 14' 10'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1SIMULTANEOUS GLIDER/POWERED ACFT OPNS.
A110-11ULTRALIGHTS ON & INVOF ARPT.
A110-12TREE LINE WITH 90 FT TREES NORTH & SOUTH OF RY APRXLY 425 FT FROM CNTRLN.
A110-13MARKED DEPRESSION INVOF THE AUTOMATED FUEL PUMP ON SOUTHWESTERN APRON.
A110-15PPR FOR CIVIL ACFT 12500 LBS AND OVER, CTC ARPT AIRSIDE OPS MGR AT (808) 836-6428 MON-FRI, 0745-1630.
A110-16RSTD: PPR FOR ALL MILITARY FLT INTO ARPT CTC USA HAWAII RNG C808-655-1429/4892.
A110-18FOR CD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
A110-2EXTNSV MIL HELICOPTER & GLIDER OPNS DAILY. AEROBATIC TRAINING OFFSHORE N OF AIRFIELD ABV 1500'.
A110-3CLSD TO CIVIL ACFT SS-SR.
A110-5SKY DIVING ACTIVITY ON AND INVOF ARPT.
A110-6CTN: LARGE SEA BIRDS ON AND INVOF ARPT NOVEMBER THROUGH APRIL.
A110-7NO RUNNING LNDGS WITH SKID TYPE HELICOPTER ON RWY - APVD TWYS ONLY.
A110-8A 5000 X 75 FT RWY FOR LGT POWERED ACFT HAS BEEN PAINTED IN THE CENTER OF EXISTING 9007 X 75 FT PAVED AREA FOR CIVIL USE STARTING APPROX 2000 FT FM EACH RWY END.
A110-9POWERED ACFT SHALL KEEP BASE LEG IN CLOSE AND CROSS THE ARPT BOUNDARY FENCES AT OR ABOVE 600 FT MSL IN ORDER TO ASSURE SAFE SEPARATION FROM SAILPLANES/TOWPLANES USING THE FIRST 2000 FT (SHORT OF THE DSPLCE THLD).
KAWAIHAPAI AIRFIELD (ICAO: PHDH, IATA: HDH) is a public airport located in MOKULEIA, HI.
