iFlightPlanner



...

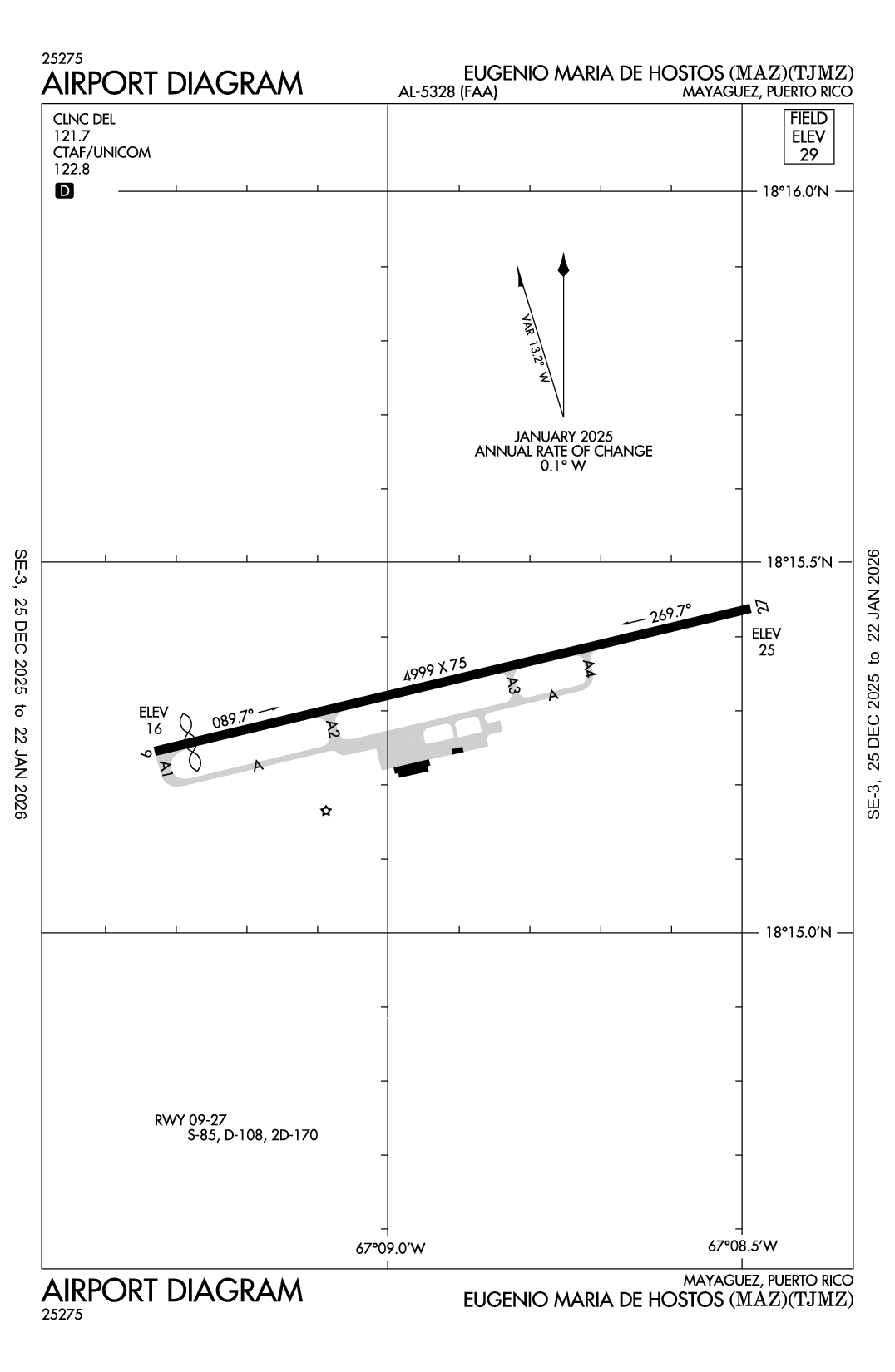

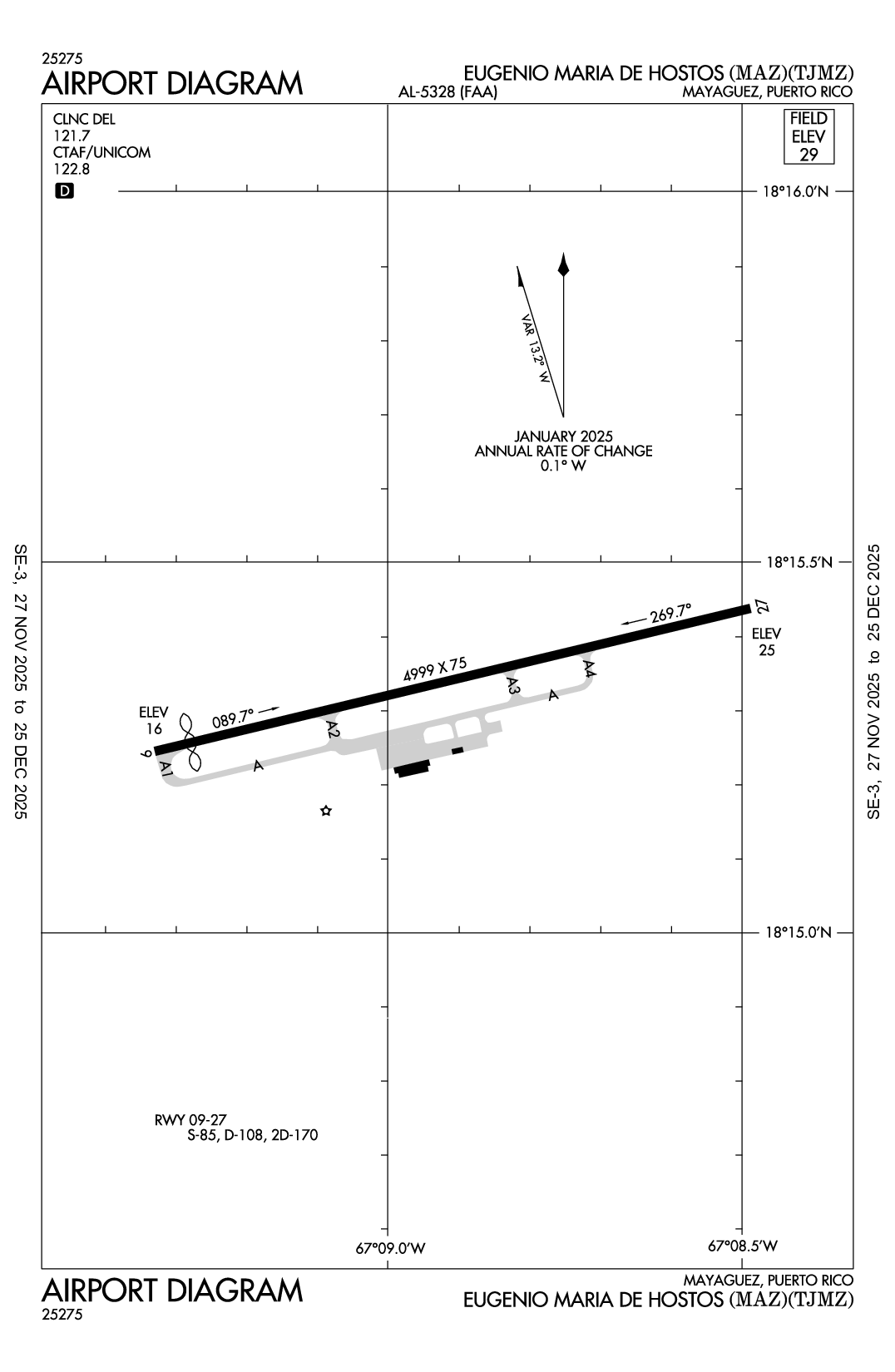

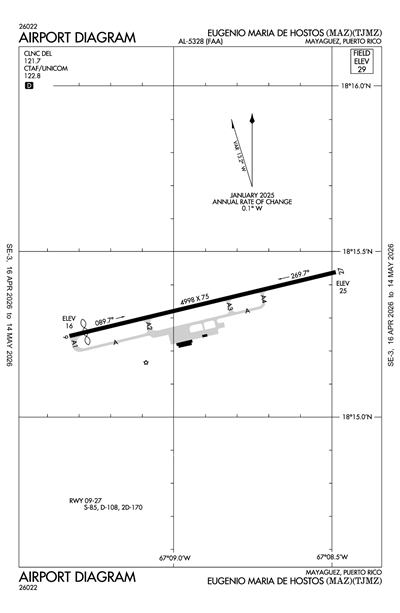

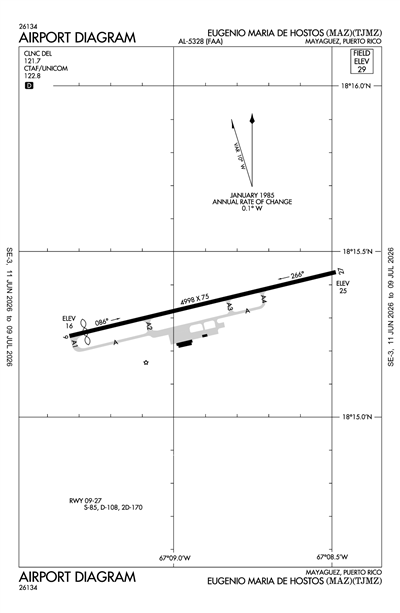

EUGENIO MARIA DE HOSTOS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

TJMZ
EUGENIO MARIA DE HOSTOS
PublicPUB

3 miles N of MAYAGUEZ, PR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
18° 15' 20"N 67° 08' 54"W
29' MSL
829' MSL
10W
None Listed
SAN JUAN (SJU)
PUERTO RICO-VIRGIN ISLANDS
SAN JUAN (ZSU)
5/16/24-6/13/24
TJBQ (14nm) VFR
10:50 PM AST
Clear
10sm
79°F
73°F
30.03"Hg
Calm
TJBQ 010250Z 00000KT 10SM CLR 26/23 A3003
Add Your Business

TJMZ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

TJBQ (14nm)
Fri, 5/31 7:40 PM AST
Fri, 5/31 8:00 PM AST - Sat, 6/1 8:00 PM AST
VFR
8:00 PM AST - 10:00 PM AST
Broken 25,000'
Scattered 5,000'
Scattered 2,800'
6sm
130° 4kts
VFR
10:00 PM AST - 10:00 AM AST
Scattered 25,000'
Few 3,500'
6sm
Calm
VFR
10:00 AM AST - 1:00 PM AST
Scattered 3,000'
6sm
090° 8kts
VFR
1:00 PM AST - 8:00 PM AST
Light Showers and Rain and Thunderstorm in vicinity
Broken 4,000'
Scattered 2,500'
6sm
060° 12kts
Gusts 20kts
TJBQ 312340Z 0100/0124 13004KT P6SM SCT028 SCT050 BKN250
   FM010200 00000KT P6SM FEW035 SCT250
   FM011400 09008KT P6SM SCT030
   FM011700 06012G20KT P6SM -SHRA VCTS SCT025CB BKN040
TJMZ
Domestic
5/31/241645Z !TJMZ 05/039 MAZ OBST TOWER LGT (ASR 1223344) 181338.10N0670633.80W (2.7NM SE MAZ) 902.9FT (217.8FT AGL) U/S 2405311645-2408290400
5/31/241623Z !TJMZ 05/038 MAZ RWY 27 PAPI U/S 2405311623-2406282000EST
5/30/240426Z !TJMZ 05/037 MAZ OBST TOWER LGT (ASR 1225099) 181411.30N0670844.50W (1.1NM S MAZ) 401.9FT (248.0FT AGL) U/S 2405300426-2406140326
5/27/240458Z !TJMZ 05/033 MAZ OBST TOWER LGT (ASR 1280977) 181938.60N0670434.70W (6.3NM NE MAZ) 731.3FT (240.2FT AGL) U/S 2405270458-2406110358
5/26/242335Z !TJMZ 05/032 MAZ OBST TOWER LGT (ASR 1258044) 181910.40N0665528.40W (13.9NM ENE MAZ) 1457.7FT (252.0FT AGL) U/S 2405262335-2408240400
5/26/242255Z !TJMZ 05/031 MAZ OBST TOWER LGT (ASR 1244383) 180202.20N0671024.50W (13.4NM S MAZ) 293.0FT (257.9FT AGL) U/S 2405262255-2408240400
5/26/241200Z !TJMZ 05/028 MAZ OBST TOWER LGT (ASR 1272359) 180432.70N0665753.30W (14.2NM SE MAZ) 544.6FT (259.8FT AGL) U/S 2405261200-2408240400
5/23/240436Z !TJMZ 05/020 MAZ OBST TOWER LGT (ASR 1235198) 180207.40N0670348.30W (13.5NM SSE MAZ) 334.0FT (245.1FT AGL) U/S 2405230436-2406070336
5/8/240001Z !TJMZ 05/009 MAZ RWY 27 RTHL U/S 2405080001-2406102359
5/8/240001Z !TJMZ 05/008 MAZ RWY 09 RTHL NOT STD 2405080001-2406102359
4/29/242034Z !TJMZ 04/025 MAZ OBST TOWER LGT (ASR 1010574) 181045.50N0671007.50W (4.8NM SSW MAZ) 246.1FT (242.1FT AGL) U/S 2404292034-2407302359
3/31/241855Z !TJMZ 03/027 MAZ OBST TOWER LGT (ASR 1229559) 175924.70N0671051.20W (16.1NM S MAZ) 526.9FT (310.0FT AGL) U/S 2403311855-2406290400
3/20/240713Z !TJMZ 03/017 MAZ OBST TOWER LGT (ASR 1226294) 180723.70N0670847.90W (7.9NM S MAZ) 604.0FT (274.9FT AGL) U/S 2403200713-2406180400
3/18/242114Z !TJMZ 03/016 MAZ OBST TOWER LGT (ASR 1013203) 181053.00N0671003.00W (4.7NM SSW MAZ) 209.3FT (206.0FT AGL) U/S 2403182114-2406182359
1/27/241626Z !TJMZ 01/016 MAZ OBST TOWER LGT (ASR 1043256) 175930.00N0671108.00W (16.1NM S MAZ) 593.8FT (397.0FT AGL) U/S 2401271626-2407312359
9/25/231755Z !TJMZ 09/032 MAZ RWY 09 RWY END ID LGT U/S 2309251755-2409252000EST
5/3/221312Z !TJMZ 05/004 MAZ SVC PCL RWY 09/27 REDL COMMISSIONED KEY FREQ 122.80 7 TIMES HIGH/5 TIMES MEDIUM/3 TIMES LOW INTST 2205031312-PERM
3/6/211100Z !TJMZ 03/010 MAZ RWY 09/27 CHANGED TO 4998FT X 75FT. DECLARED DIST: RWY 09 TORA 4998FT TODA 4998FT ASDA 4998FT LDA 4698FT. RWY 27 TORA 4998FT TODA 4998FT ASDA 4998FT LDA 4998FT. 2103061100-PERM
FDC
12/1/231408Z !FDC 3/9578 MAZ IAP EUGENIO MARIA DE HOSTOS, MAYAGUEZ, PR.
RNAV (GPS) RWY 9, ORIG-C...
VOR RWY 9, AMDT 10B...
STRAIGHT-IN MINIMUMS NA.
2312011408-2512011408EST
No
MON-FRI 0730-1600
PUERTO RICO PORTS AUTH
P.O. BOX 362829
SAN JUAN, PR 00932-2829
Phone: 787-729-8715
WILLIAM FEBLES
BOX 710
MAYAGUEZ, PR 00681-0710
Phone: 787-833-0148
SAN JUAN FSS (SJU)
Toll Free: 1-800-WX-BRIEF
TJMZ
--
RY 09/27 MIRLS SS-SR. ACTVT PAPI RYS 09 & 27, REILS RY 9 - CTAF.
N/A
Yes - Lighted
Yes
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
17
1
0
0
0
0
None
None
None
None
None

Runway 09/27

4999 ft. x 75 ft.
ASPH
Good
NONE
MED

85,000lbs
108,000lbs
170,000lbs
--
  Runway 09 Runway 27
True Heading 76°256°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 18° 15' 15"N 18° 15' 26"N
Longitude 67° 09' 20"W 67° 08' 29"W
Elevation 16' 25'
Threshold Crossing Height 40 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-2BIRDS ON AND INVOF ARPT.
A110-3FOR CD IF FREQ ARE OTS CTC SAN JUAN CERAP AT 787-253-8664/8667
A110-4ULTRALIGHT ACTIVITY.
EUGENIO MARIA DE HOSTOS (ICAO: TJMZ, IATA: MAZ) is a public airport located in MAYAGUEZ, PR.
