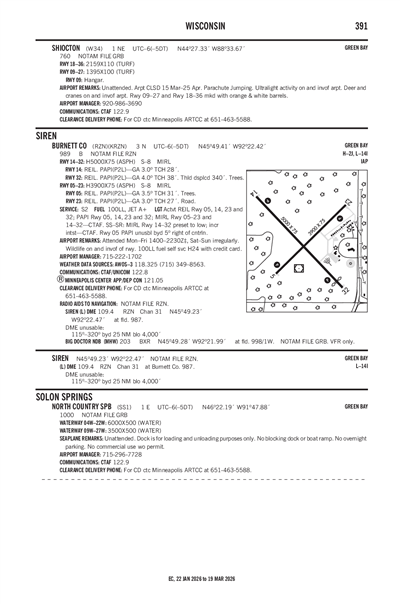

SHIOCTON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

W34
SHIOCTON
PublicPUB

1 miles NE of SHIOCTON, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 27' 20"N 88° 33' 40"W
760' MSL
1760' MSL
01W
None Listed
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KCLI (12nm) VFR
11:35 PM CDT
Clear
10sm
63°F
48°F
30.10"Hg
180° 5kts
AO2 T01720089
KCLI 010435Z AUTO 18005KT 10SM CLR 17/09 A3010 RMK AO2 T01720089
Add Your Business

W34 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KATW (12nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 11:00 AM CDT
Broken 25,000'
6sm
180° 9kts
VFR
11:00 AM CDT - 4:00 PM CDT
Light Showers and Rain
Broken 8,000'
6sm
200° 8kts
Gusts 15kts
VFR
4:00 PM CDT - 7:00 PM CDT
Broken 6,000'
6sm
190° 9kts
Gusts 15kts
KATW 312320Z 0100/0124 18009KT P6SM BKN250
   FM011600 20008G15KT P6SM -SHRA BKN080
   FM012100 19009G15KT P6SM BKN060
W34
Domestic
5/30/241922Z !GRB 05/496 W34 OBST TOWER LGT (ASR 1260138) 442620.20N0883500.40W (1.4NM SW W34) 889.8FT (119.8FT AGL) U/S 2405301922-2407292300
5/24/240227Z !GRB 05/379 W34 OBST TOWER LGT (ASR 1033858) 442829.40N0882316.80W (7.5NM E W34) 1023.0FT (237.9FT AGL) U/S 2405240227-2409210227
12/7/231648Z !GRB 12/164 W34 OBST TOWER LGT (ASR 1034095) 443247.00N0883257.00W (5.5NM NE W34) 1302.5FT (528.2FT AGL) U/S 2312071648-2406072359
No
UNATNDD
ARPT CLSD 15 MAR - 25 APR.
SHIOCTON FLYERS CLUB INC
7551 PARK AVE
SHIOCTON, WI 54170
Phone: 920-986-3690
PATRICK J VAN STRATEN
7551 PARK AVE
SHIOCTON, WI 54170
Phone: 920-986-3690
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
--
N/A
Yes
No
No
Tie-Down
No
13
0
0
0
0
3
None
None
None
None
Pilot Instruction

Runway 09/27

1395 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern
Markings
Markings Condition
Latitude 44° 27' 12"N 44° 27' 12"N
Longitude 88° 33' 54"W 88° 33' 35"W
Elevation 759' 757'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

2159 ft. x 110 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern
Markings
Markings Condition
Latitude 44° 27' 36"N 44° 27' 14"N
Longitude 88° 33' 38"W 88° 33' 38"W
Elevation 760' 759'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1DEER & CRANES ON & INVOF ARPT.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
SHIOCTON (IATA: W34) is a public airport located in SHIOCTON, WI.
