iFlightPlanner



...
BLANCA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

05V
BLANCA
PublicPUB

3 miles SW of BLANCA, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 24' 40"N 105° 33' 06"W
7720' MSL
8720' MSL
11E
None Listed
DENVER (DEN)
DENVER
DENVER (ZDV)
11/28/24-12/26/24
KALS (15nm) VFR
4:52 AM MST
Broken 8,500'
10sm
23°F
18°F
30.14"Hg
110° 3kts
AO2 SLP216 T10501078 11006 21056 58002
KALS 231152Z AUTO 11003KT 10SM BKN085 M05/M08 A3014 RMK AO2 SLP216 T10501078 11006 21056 58002
Add Your Business

05V FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

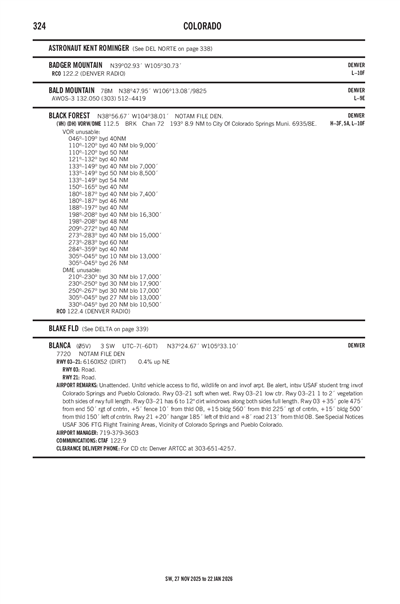

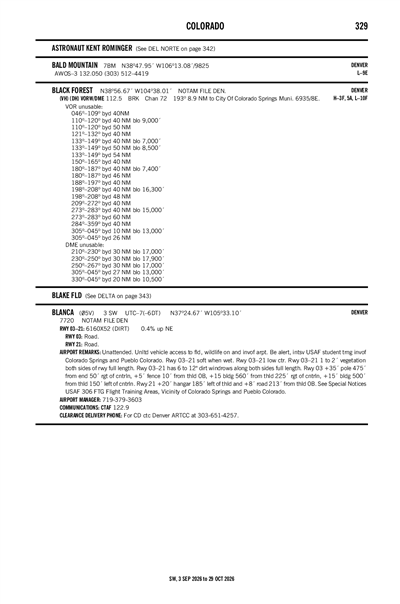

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KALS (15nm)
Mon, 12/23 4:20 AM MST
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 7:00 PM MST
Broken 10,000'
6sm
VRB° 3kts
VFR
7:00 PM MST - 5:00 AM MST
Scattered 10,000'
Scattered 8,000'
6sm
340° 6kts
KALS 231120Z 2312/2412 VRB03KT P6SM BKN100
   FM240200 34006KT P6SM SCT080 SCT100
05V
Domestic
12/4/241346Z !DEN 12/076 05V OBST TOWER LGT (ASR 1274343) 372531.70N1052653.00W (5.0NM E 05V) 8236.5FT (349.7FT AGL) U/S 2412041346-2502042359
No
UNATNDD
TOWN OF BLANCA
BOX 365
BLANCA, CO 81123
Phone: 719-379-3461
MYRRL SMITH
BOX 6
BLANCA, CO 81123
Phone: 719-379-3603
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 03/21

6160 ft. x 52 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 41°221°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 37° 24' 17"N 37° 25' 03"N
Longitude 105° 33' 35"W 105° 32' 44"W
Elevation 7,696' 7,720'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1UNLIMITED VEHICLE ACCESS TO FIELD; WILDLIFE ON & INVOF ARPT.
A110-2RY 21 HAS +15 FT SPRINKLER WITHIN 200 FT OF THLD; INTERMITTENTLY.
A110-3RY 03 +35 FT POLE 475 FT FM RY END 50 FT R OF CNTRLN; +5 FT FENCE 10 FT FM THLD 0B; +15 FT BLDG 560 FT FM THLD 225 FT R OF CNTRLN; +15 FT BLDG 500 FT FM THLD 150 FT L OF CNTRLN.
A110-5RY 03/21 SOFT WHEN WET.
A110-6RY 21 +20 FT HANGAR 185 FT L OF THLD AND +8 FT ROAD 213 FT FM THLD 0B.
A110-7RY 03/21 HAS 6 TO 12 IN DIRT WINDROWS ALONG BOTH SIDES FULL LENGTH.
A110-8BE ALERT; INTENSIVE USAF STUDENT TRAINING IN VICINITY OF COLORADO SPRINGS & PUEBLO COLORADO.
A110-9FOR CD CTC DENVER ARTCC AT 303-651-4257.
BLANCA (IATA: 05V) is a public airport located in BLANCA, CO.
