08D
STANLEY MUNI
Public
PUB
1 miles SW of STANLEY, ND
View on
Map
Status
Operational
Coordinates
48° 18' 03"N
102° 24' 24"W
Elevation
2250' MSL
Pattern Alt
3250' MSL
Mag Variation
07E
Fuel
JET A (FSII), 100LL, MOGAS
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
11/28/24-12/26/24
K08D
LIFR
6:15 AM CST
RAW
Freezing Fog
Overcast 200'
Viz
0.25sm
Temp
23°F
Dew
23°F
Pres
30.00"Hg
Wind
110° 7kts
RMK
AO2
K08D 231215Z AUTO 11007KT 1/4SM FZFG OVC002 M05/M05 A3000 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
08D FBOs
Promote Listing
Stanley Municipal Airport
UNICOM: 122.9
Phone: (701) 629-0044
0 Reviews
(
Read
|
Sign In To Write
)
Other
As of
12/21
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
4.30
5.00
Full Serve
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
AWOS-3
AWOS-3
701-628-1737
121.1

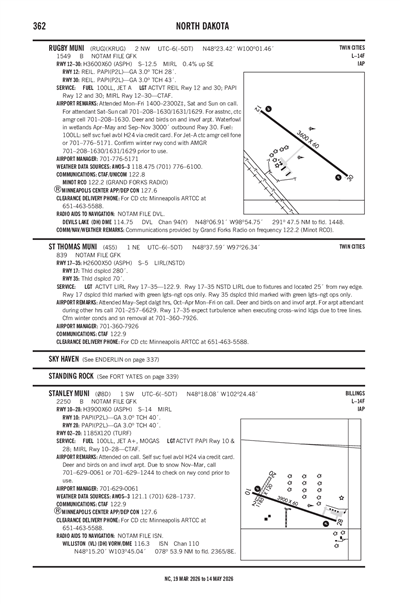

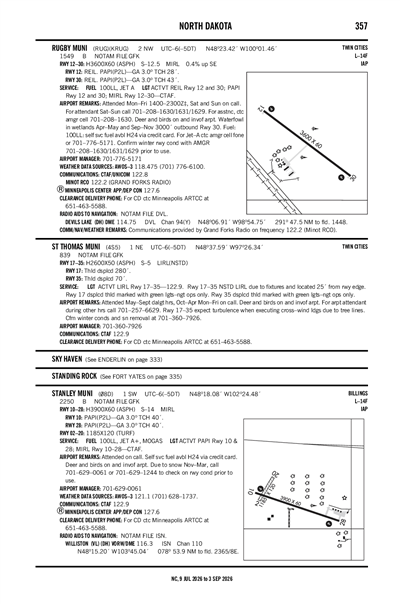

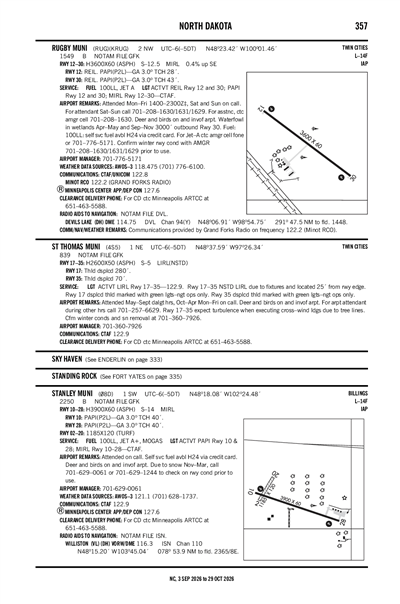

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 10
RNAV (GPS) RWY 28
Terminal Area Forecast
KMIB (43nm)
RAW
Reported
Mon, 12/23 5:18 AM CST
Valid
Mon, 12/23 4:00 AM CST - Tue, 12/24 9:00 AM CST
LIFR
4:00 AM CST - 9:00 AM CST
Light Freezing Drizzle and Mist
Overcast 500'
Viz
0.62sm
Pres
30.00"Hg
Wind
VRB° 6kts
Icing
Moderate, In Precipitation (Clear): 14,000-3,000'
LIFR
Temporary
5:00 AM CST - 9:00 AM CST
Freezing Fog
Obscured
Viz
0.5sm
Wind
Calm
IFR
Becoming
9:00 AM CST - 11:00 AM CST
Mist
Broken 1,000'
Viz
1.99sm
Pres
30.03"Hg
Wind
140° 6kts
Icing
Moderate (Mixed): 1,000-3,000'
IFR
Becoming
11:00 AM CST - 1:00 PM CST
Mist
Broken 2,500'
Viz
2.98sm
Pres
30.09"Hg
Wind
140° 6kts
Icing
Moderate (Mixed): 2,500-4,500'
VFR
Becoming
1:00 PM CST - 7:00 PM CST
Scattered 2,500'
Viz
6sm
Pres
30.06"Hg
Wind
140° 6kts
VFR
Becoming
7:00 PM CST - 2:00 AM CST
Scattered 5,000'
Viz
6sm
Pres
30.00"Hg
Wind
140° 6kts
VFR
Becoming
2:00 AM CST - 9:00 AM CST
Broken 10,000'
Viz
6sm
Pres
30.00"Hg
Wind
200° 9kts
TAF AMD KMIB 231118Z 2310/2415 VRB06KT 1000 -FZDZ BR OVC005 660003 QNH2999INS
TEMPO 2311/2315 0800 FZFG VV004
BECMG 2315/2316 14006KT 3200 BR BKN010 640102 QNH3004INS
BECMG 2317/2318 14006KT 4800 BR BKN025 640252 QNH3008INS
BECMG 2319/2320 14006KT 9999 NSW SCT025 QNH3006INS
BECMG 2401/2402 14006KT 9999 SCT050 QNH3001INS
BECMG 2408/2409 20009KT 9999 BKN100 QNH3000INS TXM04/2322Z TNM12/2312Z
08D
FDC
11/28/24
0902Z
!FDC 4/9345 08D IAP STANLEY MUNI, STANLEY, ND.
RNAV (GPS) RWY 28, AMDT 3...
CHART ZEKAV AT 2.01NM TO RW 28.
THIS IS RNAV (GPS) RWY 28, AMDT 3A. 2411280902-PERM
ATC Tower
No
Attendance
ON CALL
Owner
STANLEY ARPT AUTH
PO BOX 252
STANLEY, ND 58784
Phone: 701-629-0061
Manager
STEVEN MARTENS
PO BOX 252
STANLEY, ND 58784
Phone: 701-629-0061
FSS
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
NOTAM
GFK
Light Schedule
--
Lights
ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Pilot Instruction
Runway 10/28
Dimensions
3900 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
14,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 10
Runway 28
True Heading
108°
288°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
48° 18' 09"N
48° 17' 57"N
Longitude
102° 24' 52"W
102° 23' 57"W
Elevation
2,250'
2,241'
Threshold Crossing Height
40 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
DUE TO SNOW NOV-MAR CALL 701-629-0061 OR 701-629-1244 TO CHECK ON RWY COND PRIOR TO USE.
A110-2
DEER & BIRDS ON & INVOF ARPT.
A110-3
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
STANLEY MUNI (IATA: 08D) is a public airport located in STANLEY, ND.
