CYNTHIANA-HARRISON COUNTY - Airport Diagram

0I8

CYNTHIANA-HARRISON COUNTY

PublicPUB

2 miles S of CYNTHIANA, KY

View on Map

Status

Operational

Coordinates

38° 21' 58"N 84° 17' 00"W

Elevation

721' MSL

Pattern Alt

1721' MSL

Mag Variation

06W

Fuel

100LL

FSS

LOUISVILLE (LOU)

Sectional

CINCINNATI

ARTCC

INDIANAPOLIS (ZID)

Data Effective

12/26/24-1/23/25

KK62 (21nm) VFR

11:35 AM EST RAW

Clear

Viz

10sm

Temp

10°F

Dew

-2°F

Pres

30.44"Hg

Wind

230° 4kts

RMK

AO2

KK62 221635Z AUTO 23004KT 10SM CLR M12/M19 A3044 RMK AO2

Add Your Business

0I8 FBOs

Promote Listing

Cynthiana-Harrison County Airport

UNICOM: 122.8

Phone: (859) 234-8477

0 Reviews (Read | Sign In To Write)

Titan

As of 12/24/2024	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.59
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

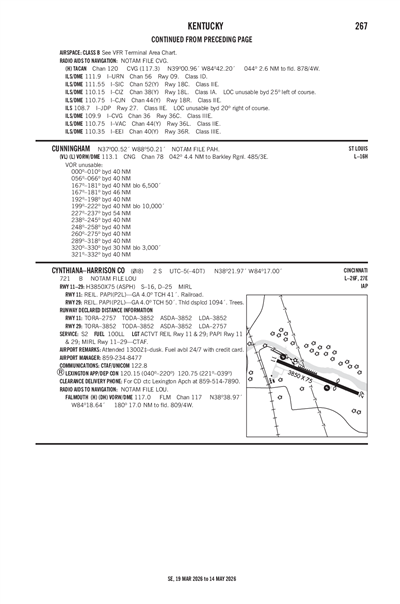

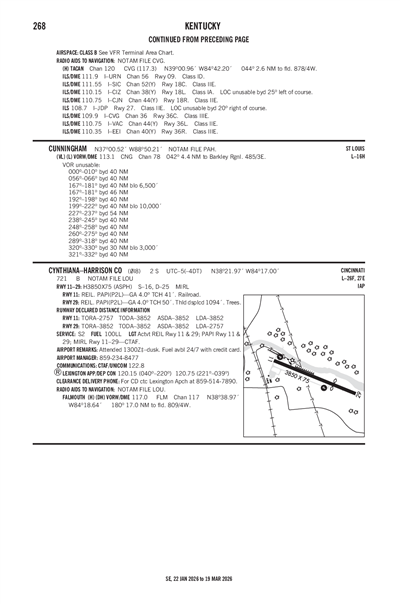

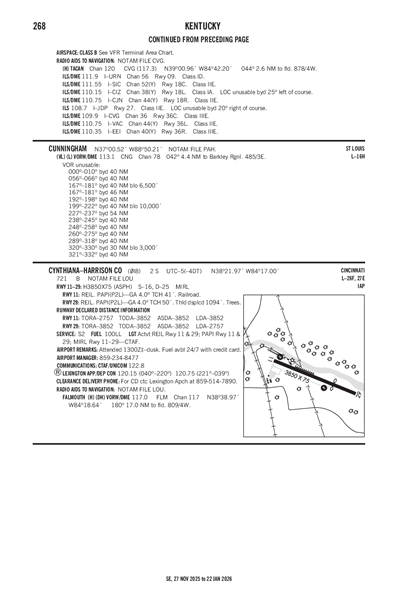

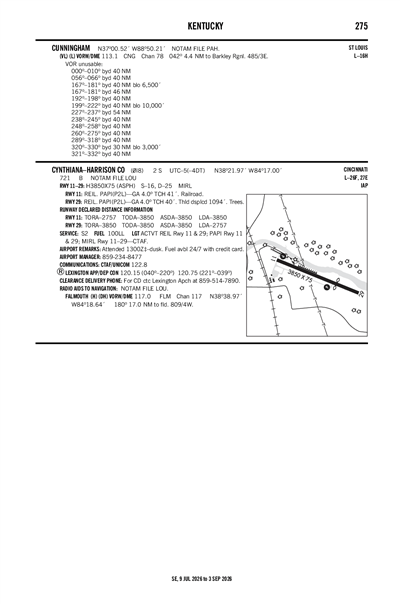

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KLEX (25nm)

RAW

Reported

Wed, 1/22 6:33 AM EST

Valid

Wed, 1/22 7:00 AM EST - Thu, 1/23 7:00 AM EST

VFR

7:00 AM EST - 11:00 AM EST

Broken 25,000'

Viz

6sm

Wind

140° 6kts

VFR

11:00 AM EST - 1:00 AM EST

Few 20,000'

Viz

6sm

Wind

180° 6kts

VFR

1:00 AM EST - 7:00 AM EST

Few 10,000'

Viz

6sm

Wind

200° 7kts

KLEX 221133Z 2212/2312 14006KT P6SM BKN250
FM221600 18006KT P6SM FEW200
FM230600 20007KT P6SM FEW100

0I8

Domestic
1/13/252212Z	!LOU 01/540 0I8 OBST TOWER LGT (ASR UNKNOWN) 382223.09N0841653.83W (0.40NM N 0I8) 805FT (91FT AGL) U/S 2501132212-2502270200
12/24/241711Z	!LOU 12/334 0I8 OBST TOWER LGT (ASR 1247808) 382341.30N0840154.40W (12.0NM E 0I8) 1309.1FT (409.1FT AGL) U/S 2412241711-2503250500
12/20/240934Z	!LOU 12/300 0I8 OBST TOWER LGT (ASR 1239771) 383045.90N0841735.90W (8.8NM N 0I8) 1124.0FT (299.9FT AGL) U/S 2412200934-2504190934
12/16/241942Z	!LOU 12/242 0I8 OBST TOWER LGT (ASR UNKNOWN) 382217N0841543W (1.1NM E 0I8) 82.7FT (63.5FT AGL) U/S 2412161942-2501301942
12/14/241500Z	!LOU 12/209 0I8 OBST TOWER LGT (ASR 1236295) 382302.20N0841735.40W (1.2NM NNW 0I8) 898.0FT (94.8FT AGL) U/S 2412141500-2503140500

ATC Tower

Attendance

0800-DUSK

Owner

CYNTHIANA-HARRISON COUNTY ARPT BD
P.O. BOX 395
CYNTHIANA, KY 41031
Phone: 859-234-5533

Manager

ROBERT CRAFT
40 AIRFIELD LANE
CYNTHIANA, KY 41031
Phone: 859-234-8477

FSS

LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF

NOTAM

LOU

Light Schedule

Lights

ACTVT REIL RWY 11 & 29; PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction

Runway 11/29

Dimensions

3850 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

16,000lbs

Double Wheel

25,000lbs

Double Tandem

Dual Dbl Tand

	Runway 11	Runway 29
True Heading	106°	286°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	38° 22' 03"N	38° 21' 53"N
Longitude	84° 17' 23"W	84° 16' 37"W
Elevation	721'	720'
Threshold Crossing Height	41 ft. AGL	50 ft. AGL
Visual Glide Path Angle	4°	4°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1

FOR CD CTC LEXINGTON APCH AT 859-514-7890.

CYNTHIANA-HARRISON COUNTY (IATA: 0I8) is a public airport located in CYNTHIANA, KY.
