0R5
DAVID G JOYCE
Public
PUB
3 miles NW of WINNFIELD, LA
View on
Map
Status
Operational
Coordinates
31° 57' 49"N
92° 39' 37"W
Elevation
146' MSL
Pattern Alt
1146' MSL
Mag Variation
02E
Fuel
None Listed
FSS
DE RIDDER (DRI)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
11/28/24-12/26/24
KIER (26nm)
VFR
6:35 AM CST
RAW
Clear
Viz
10sm
Temp
31°F
Dew
31°F
Pres
30.31"Hg
Wind
Calm
RMK
AO2 T10081008
KIER 231235Z AUTO 00000KT 10SM CLR M01/M01 A3031 RMK AO2 T10081008
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
0R5 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.7
CTAF
122.7
No communication frequencies available for this airport.

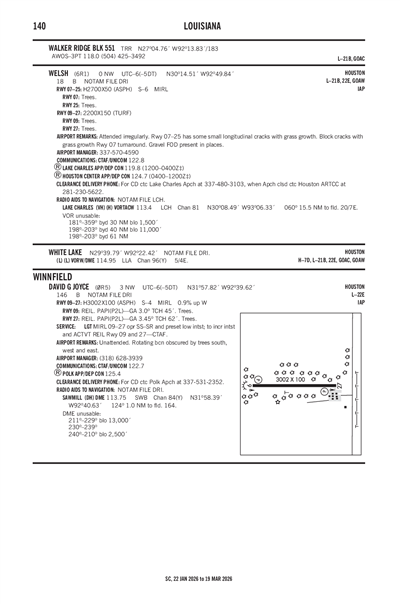

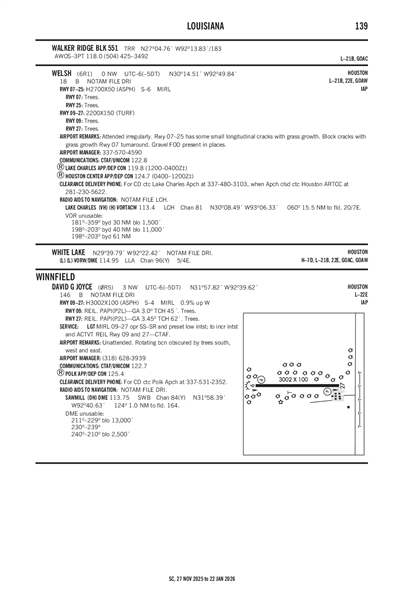

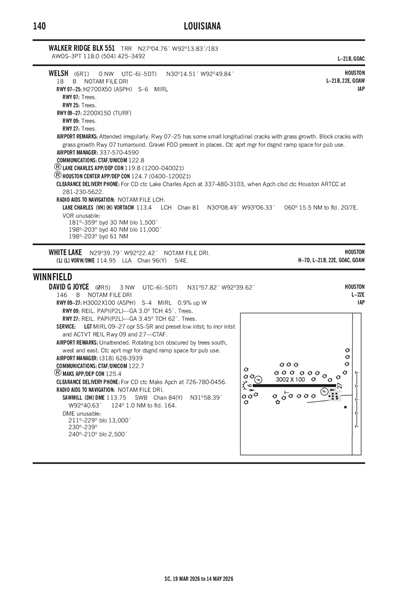

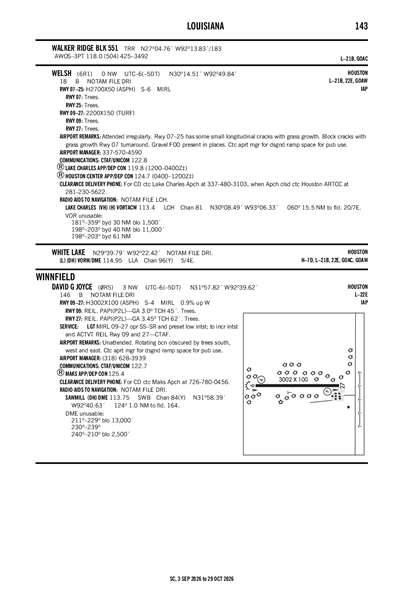

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 09
RNAV (GPS) RWY 27
Terminal Area Forecast
KAEX (38nm)
RAW
Reported
Mon, 12/23 5:32 AM CST
Valid
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 9:00 AM CST
Sky Clear
Viz
6sm
Wind
130° 4kts
VFR
9:00 AM CST - 7:00 PM CST
Sky Clear
Viz
6sm
Wind
140° 8kts
VFR
7:00 PM CST - 6:00 AM CST
Scattered 8,000'
Viz
6sm
Wind
130° 5kts
KAEX 231132Z 2312/2412 13004KT P6SM SKC
FM231500 14008KT P6SM SKC
FM240100 13005KT P6SM SCT080
0R5
Domestic
12/9/24
2332Z
!DRI 12/135 0R5 OBST TOWER LGT (ASN 2018-ASW-2815-OE) 320439N0923941W (6.8NM NE 0R5) 547FT (317FT AGL) U/S 2412092332-2501232331
11/24/24
0918Z
!DRI 11/382 0R5 OBST TOWER LGT (ASR 1309518) 315915.68N0923931.98W (1.4NM NE 0R5) 489FT (357FT AGL) U/S 2411240918-2501080917
11/13/24
1104Z
!DRI 11/201 0R5 OBST TOWER LGT (ASR 1304294) 320500.86N0923016.21W (10.8NM NE 0R5) 582FT (365FT AGL) U/S 2411131104-2412281103
10/2/24
0239Z
!DRI 10/014 0R5 OBST TOWER LGT (ASR 1265738) 320416.50N0923922.80W (6.4NM NE 0R5) 523.6FT (289.7FT AGL) U/S 2410020239-2412302359
9/13/24
1221Z
!DRI 09/351 0R5 RWY 09 PAPI UNUSABLE 2409131221-2503132111EST
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF WINNFIELD
PO BOX 509
WINNFIELD, LA 71483
Phone: 318-628-3939
Manager
AUNDRA BASS
PO BOX 509
WINNFIELD, LA 71483
Phone: (318) 628-3939
FSS
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
NOTAM
DRI
Light Schedule
--
Lights
MIRL RWY 09/27 OPR SS-SR AND PRESET LOW INTST; TO INCR INTST AND ACTVT REIL RWY 09 AND 27 - CTAF.
Beacon
N/A
ROTG BCN OBSCURED BY TREES SOUTH, WEST AND EAST.
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 09/27
Dimensions
3002 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
4,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 09
Runway 27
True Heading
89°
269°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
31° 57' 49"N
31° 57' 49"N
Longitude
92° 39' 54"W
92° 39' 20"W
Elevation
146'
118'
Threshold Crossing Height
45 ft. AGL
62 ft. AGL
Visual Glide Path Angle
3°
3.45°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
FOR CD CTC POLK APCH AT 337-531-2352.
DAVID G JOYCE (IATA: 0R5) is a public airport located in WINNFIELD, LA.
