16S
MYRTLE CREEK MUNI
Public
PUB
2 miles SW of MYRTLE CREEK, OR
View on
Map
Status
Operational
Coordinates
42° 59' 50"N
123° 18' 55"W
Elevation
619' MSL
Pattern Alt
1600' MSL
Mag Variation
18E
Fuel
None Listed
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
11/28/24-12/26/24
KRBG (14nm)
LIFR
3:53 AM PST
RAW
Fog
Obscured
Viz
0.25sm
Temp
45°F
Dew
44°F
Pres
30.15"Hg
Wind
Calm
RMK
AO2 SLP213 60001 70041 T00720067 10111 20056 50001
KRBG 231153Z AUTO 00000KT 1/4SM FG VV002 07/07 A3015 RMK AO2 SLP213 60001 70041 T00720067 10111 20056 50001
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
16S FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.7
CTAF
122.7
No communication frequencies available for this airport.

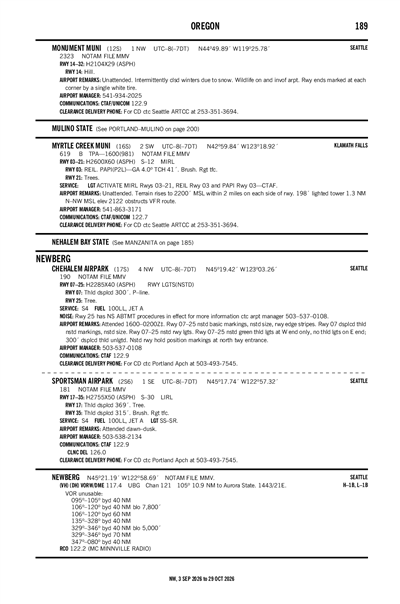

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KRBG (14nm)
RAW
Reported
Mon, 12/23 3:42 AM PST
Valid
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
LIFR
4:00 AM PST - 9:00 AM PST
Fog
Overcast 100'
Viz
0.25sm
Wind
Calm
IFR
9:00 AM PST - 11:00 AM PST
Mist
Overcast 15,000'
Broken 700'
Viz
5sm
Wind
VRB° 3kts
VFR
11:00 AM PST - 3:00 PM PST
Overcast 10,000'
Scattered 700'
Viz
6sm
Wind
VRB° 3kts
VFR
3:00 PM PST - 6:00 PM PST
Overcast 15,000'
Broken 8,000'
Viz
6sm
Wind
VRB° 3kts
Shear 160° 45kts @ 2000'
VFR
6:00 PM PST - 4:00 AM PST
Light Rain
Overcast 6,000'
Scattered 3,500'
Viz
6sm
Wind
VRB° 3kts
Shear 170° 50kts @ 2000'
KRBG 231142Z 2312/2412 00000KT 1/4SM FG OVC001
FM231700 VRB03KT 5SM BR BKN007 OVC150
FM231900 VRB03KT P6SM SCT007 OVC100
FM232300 VRB03KT P6SM BKN080 OVC150 WS020/16045KT
FM240200 VRB03KT P6SM -RA SCT035 OVC060 WS020/17050KT
16S
Domestic
12/18/24
1438Z
!MMV 12/128 16S OBST TOWER LGT (ASR 1217682) 424827.20N1231548.60W (11.7NM SSE 16S) 2783.1FT (202.8FT AGL) U/S 2412181438-2504171438
12/12/24
1918Z
!MMV 12/078 16S OBST TOWER LGT (ASR 1035079) 430104.00N1231850.00W (1.2NM NE 16S) 2222.1FT (198.2FT AGL) U/S 2412121918-2501132359
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF MYRTLE CREEK
PO BOX 940
MYRTLE CREEK, OR 97457
Phone: 541-863-3171
Manager
LONNIE RAINEVILLE, CITY MGR
PO BOX 940
MYRTLE CREEK, OR 97457
Phone: 541-863-3171
FSS
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
NOTAM
MMV
Light Schedule
--
Lights
ACTIVATE MIRL RYS 03/21, REIL RY 03 & PAPI RY 03- CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 03/21
Dimensions
2600 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 03
Runway 21
True Heading
50°
230°
Traffic Pattern
Right
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
42° 59' 42"N
42° 59' 58"N
Longitude
123° 19' 09"W
123° 18' 42"W
Elevation
619'
614'
Threshold Crossing Height
41 ft. AGL
--
Visual Glide Path Angle
4°
--
Visual Slope Indicator
P2L
--
Approach Lights
Centerline Lights
No
Runway End Identifier Lights
Yes
A110-1
198 FT LGTD TOWER 1.3 NM NORTH - NORTHWEST MSL ELEV 2122 OBSTRUCTS VFR ROUTE.
A110-2
TERRAIN RISES TO 2200 FT MSL WITHIN 2 MILES ON EACH SIDE OF RY.
A110-4
FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
MYRTLE CREEK MUNI (IATA: 16S) is a public airport located in MYRTLE CREEK, OR.
