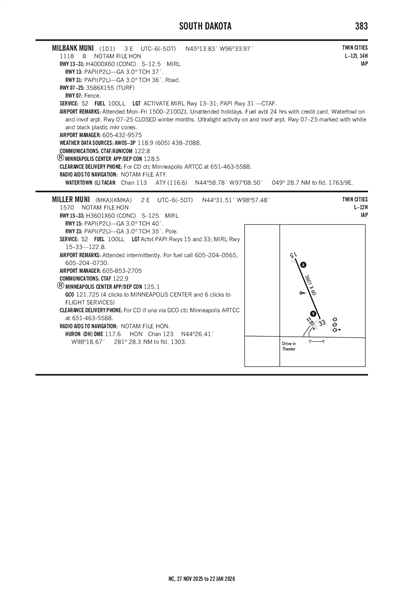

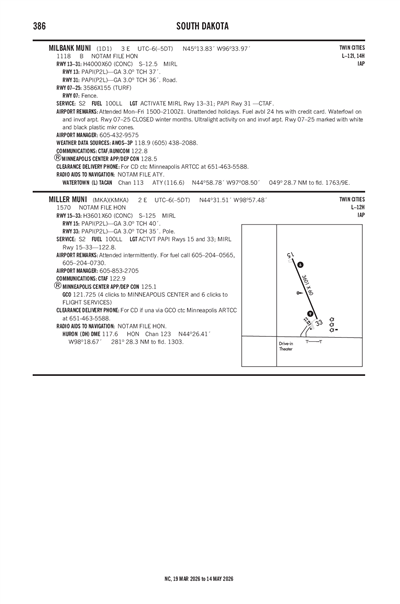

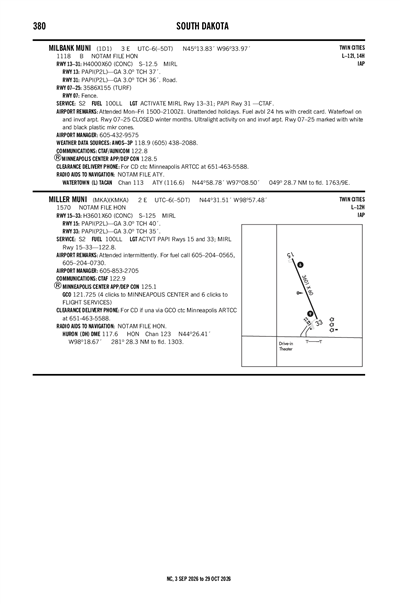

MILBANK MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1D1
MILBANK MUNI
PublicPUB

3 miles E of MILBANK, SD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 13' 50"N 96° 33' 58"W
1118' MSL
2118' MSL
05E
100LL
HURON (HON)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
K1D1 VFR
10:55 PM CDT
Scattered 9,000'
10sm
57°F
55°F
30.01"Hg
170° 5kts
AO2
K1D1 010355Z AUTO 17005KT 10SM SCT090 14/13 A3001 RMK AO2
Add Your Business

1D1 FBOs

Promote Listing
Milbank Municipal Airport
UNICOM: 122.8
Phone: (605) 432-4800
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.40
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
605-438-2088
 118.9

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KATY (32nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 PM CDT
Broken 8,000'
6sm
VRB° 6kts
VFR
1:00 PM CDT - 7:00 PM CDT
Few 6,000'
6sm
180° 4kts
KATY 312320Z 0100/0124 VRB06KT P6SM BKN080
   FM011800 18004KT P6SM FEW060
1D1
Domestic
2/8/241429Z !HON 02/024 1D1 RWY 31 PAPI UNUSABLE 2402081429-2408082111EST
FDC
3/18/241625Z !FDC 4/8402 1D1 IAP MILBANK MUNI, MILBANK, SD.
RNAV (GPS) RWY 31, ORIG-B...
TAA LEFT BASE 042/18 CW 132/18 TO LUZOL (IAF) MINIMUM ALTITUDE 3600.
2403181625-2603182359EST
9/29/231202Z !FDC 3/7533 1D1 ODP MILBANK MUNI, MILBANK, SD.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKE-OFF MINIMUMS RWY 25, STANDARD WITH A MINIMUM CLIMB OF 207 FEET PER NM TO 1900, OR 1000-3 FOR CLIMB IN VISUAL CONDITIONS.
ALL OTHER DATA REMAINS AS PUBLISHED. 2309291202-2509291202EST
7/25/221507Z !FDC 2/7905 1D1 IAP MILBANK MUNI, MILBANK, SD.
RNAV (GPS) RWY 31, ORIG-B...
DISREGARD NOTE: DESCENT ANGLE 3.00/TCH 40.
PROFILE NOTE: VISUAL SEGMENT - OBSTACLES.
2207251507-2407201506EST
No
MON-FRI 0900-1500
UNATNDD HOLS.
CITY OF MILBANK
1001 E 4TH AVE, SUITE 301
MILBANK, SD 57252
Phone: 605-432-9575
STEVE PENDERGRASS
1001 E. 4TH AVE., #301
MILBANK, SD 57252-6034
Phone: 605-432-9575
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
HON
--
ACTVT MIRL RY 13/31 & PAPI RY 31 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
13
0
0
0
0
0
Minor
Minor
None
None
Crop Dusting

Runway 07/25

3586 ft. x 155 ft.
TURF
Good
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 71°251°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 45° 13' 38"N 45° 13' 49"N
Longitude 96° 34' 26"W 96° 33' 39"W
Elevation 1,112' 1,113'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

4000 ft. x 60 ft.
CONC
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 137°317°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 14' 10"N 45° 13' 41"N
Longitude 96° 34' 13"W 96° 33' 35"W
Elevation 1,114' 1,115'
Threshold Crossing Height 37 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RY 31 +4' FENCE 600' FM THR & 10' R FM CNTRLN & 350' FM THR & 250' R FM CNTRLN.
A110-2RY 13 +4' FENCE 450' FM THR.
A110-3ULTRALIGHT ACT ON AND INVOF ARPT.
A110-4WATERFOWL ON AND INVOF ARPT.
A110-5FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MILBANK MUNI (IATA: 1D1) is a public airport located in MILBANK, SD.
