1K9

SATANTA MUNI

PublicPUB

1 miles N of SATANTA, KS

View on Map

Status

Operational

Coordinates

37° 27' 24"N 100° 59' 05"W

Elevation

2976' MSL

Pattern Alt

3976' MSL

Mag Variation

09E

Fuel

100LL

FSS

WICHITA (ICT)

Sectional

WICHITA

ARTCC

KANSAS CITY (ZKC)

Data Effective

5/16/24-6/13/24

K19S (8nm) VFR

11:35 PM CDT RAW

Clear

Viz

10sm

Temp

68°F

Dew

63°F

Pres

30.01"Hg

Wind

090° 11kts

RMK

AO2 T01990170

K19S 010435Z AUTO 09011KT 10SM CLR 20/17 A3001 RMK AO2 T01990170

Add Your Business

1K9 FBOs

Promote Listing

Corner Express

UNICOM: 122.8

Phone: (620) 649-2956

0 Reviews (Read | Sign In To Write)

Independent

As of 5/30	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.30
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

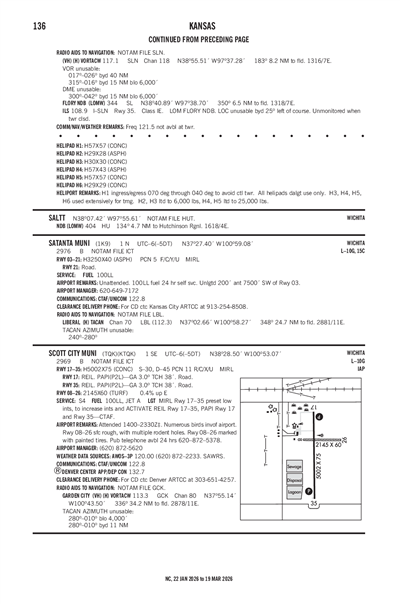

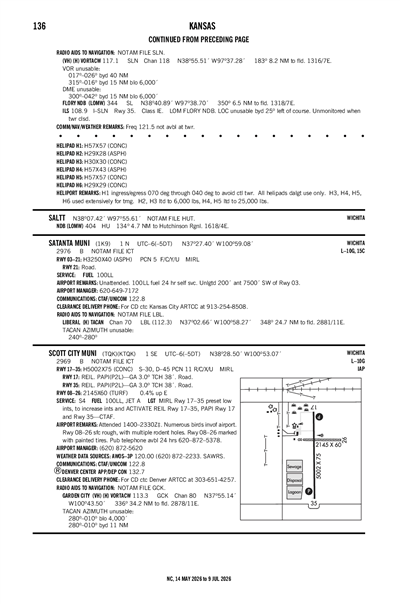

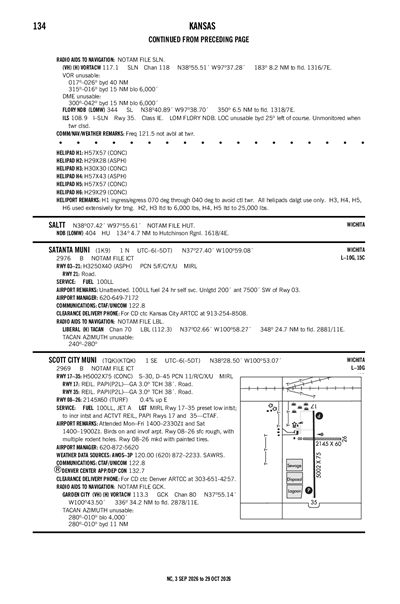

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

No Documents

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KGCK (31nm)

RAW

Reported

Fri, 5/31 6:20 PM CDT

Valid

Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT

VFR

7:00 PM CDT - 1:00 AM CDT

Few 18,000'

Viz

6sm

Wind

110° 9kts

VFR

1:00 AM CDT - 2:00 AM CDT

Thunderstorm in vicinity

Broken 11,000'

Viz

6sm

Wind

050° 8kts

VFR

2:00 AM CDT - 3:00 AM CDT

Thunderstorm in vicinity

Broken 12,000'

Viz

6sm

Wind

080° 8kts

VFR

3:00 AM CDT - 4:00 AM CDT

Thunderstorm in vicinity

Broken 16,000'

Viz

6sm

Wind

130° 8kts

VFR

4:00 AM CDT - 2:00 PM CDT

Showers in vicinity

Broken 15,000'

Viz

6sm

Wind

160° 8kts

VFR

2:00 PM CDT - 7:00 PM CDT

Few 20,000'

Viz

6sm

Wind

170° 11kts

KGCK 312320Z 0100/0124 11009KT P6SM FEW180
   FM010600 05008KT P6SM VCTS BKN110CB
   FM010700 08008KT P6SM VCTS BKN120CB
   FM010800 13008KT P6SM VCTS BKN160CB
   FM010900 16008KT P6SM VCSH BKN150
   FM011900 17011KT P6SM FEW200

1K9

Domestic
5/1/242012Z	!ICT 05/025 1K9 OBST TOWER LGT (ASR 1032527) 371540.00N1010048.00W (11.8NM S 1K9) 3162.1FT (243.1FT AGL) U/S 2405012012-2406152011

ATC Tower

Attendance

UNATNDD

Owner

DUDLEY TOWNSHIP
RT 1 BOX 121
SATANTA, KS 67870
Phone: 620-649-2348

Manager

BILL ANTON
2268 ROAD II
SATANTA, KS 67870
Phone: 620-649-7172

FSS

WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF

NOTAM

ICT

Light Schedule

Lights

ACTVT MIRL RY 03/21 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 03/21

Dimensions

3250 ft. x 40 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

5 /F/C/Y/U

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	40°	220°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	37° 27' 12"N	37° 27' 36"N
Longitude	100° 59' 18"W	100° 58' 52"W
Elevation	2,968'	2,972'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	UNLGTD 200 FT AND ANT 7500 FT SW OF RY 03.
A110-2	FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.

SATANTA MUNI (IATA: 1K9) is a public airport located in SATANTA, KS.
