1M5
DOUGLAS HUNTER FLD
Public
PUB
3 miles NE of PORTLAND, TN
View on
Map
Status
Operational
Coordinates
36° 35' 34"N
86° 28' 37"W
Elevation
818' MSL
Pattern Alt
1818' MSL
Mag Variation
02W
Fuel
JET A (FSII), 100LL
FSS
NASHVILLE (BNA)
Sectional
ST LOUIS
ARTCC
MEMPHIS (ZME)
Data Effective
11/28/24-12/26/24
K1M5
VFR
6:15 AM CST
RAW
Clear
Viz
10sm
Temp
34°F
Dew
23°F
Pres
30.36"Hg
Wind
170° 11kts
RMK
A01
K1M5 231215Z AUTO 17011KT 10SM CLR 01/M05 A3036 RMK A01
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
1M5 FBOs
Promote Listing
Douglas Hunter Field
UNICOM: 122.8
Phone: (615) 323-7500
0 Reviews
(
Read
|
Sign In To Write
)
Titan
As of
12/16
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
Full Serve
4.50
4.50
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.975
CTAF
122.975
AWOS-3PT
AWOS-3PT
615-325-4971
118.175

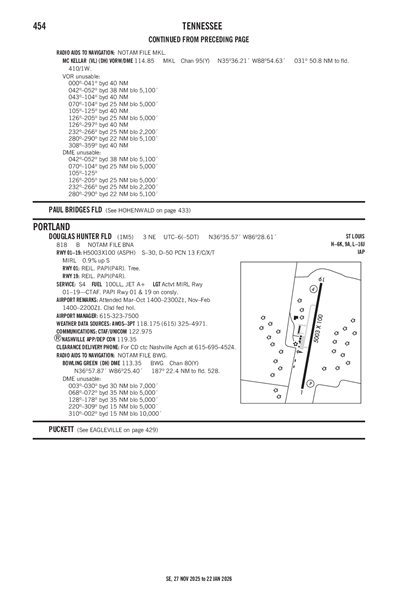

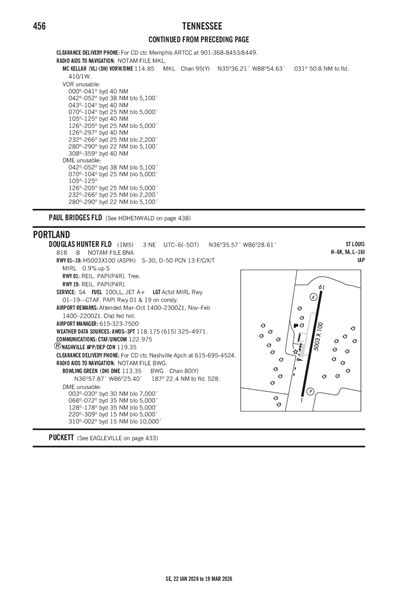

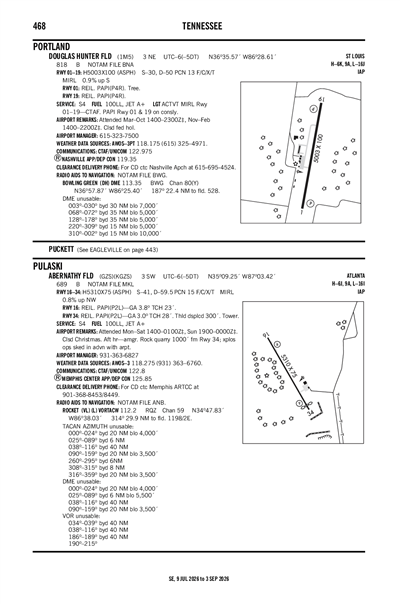

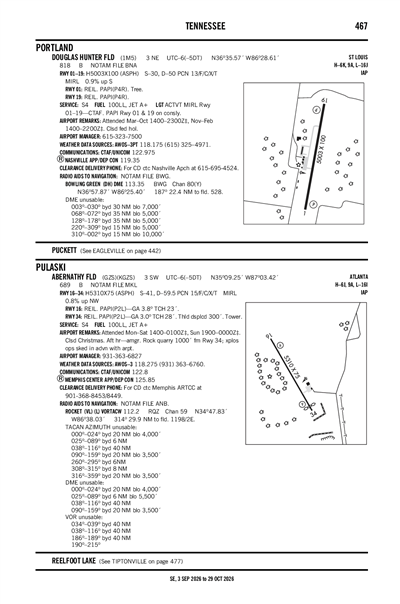

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 01
RNAV (GPS) RWY 19
Terminal Area Forecast
KBWG (22nm)
RAW
Reported
Mon, 12/23 5:20 AM CST
Valid
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 8:00 AM CST
Sky Clear
Viz
6sm
Wind
Calm
VFR
8:00 AM CST - 11:00 AM CST
Scattered 25,000'
Viz
6sm
Wind
180° 6kts
VFR
11:00 AM CST - 4:00 PM CST
Scattered 20,000'
Viz
6sm
Wind
200° 12kts
VFR
4:00 PM CST - 8:00 PM CST
Broken 11,000'
Viz
6sm
Wind
190° 6kts
VFR
8:00 PM CST - 6:00 AM CST
Overcast 6,000'
Viz
6sm
Wind
190° 4kts
KBWG 231120Z 2312/2412 00000KT P6SM SKC
FM231400 18006KT P6SM SCT250
FM231700 20012KT P6SM SCT200
FM232200 19006KT P6SM BKN110
FM240200 19004KT P6SM OVC060
1M5
Domestic
7/7/24
2137Z
!BNA 07/143 1M5 RWY 19 RWY END ID LGT U/S 2407072137-2501072359
7/7/24
2136Z
!BNA 07/142 1M5 RWY 01 RWY END ID LGT U/S 2407072136-2501072359
11/3/22
2014Z
!BNA 10/450 1M5 COM UNICOM 122.8 CHANGED TO 122.975 2211032014-PERM
ATC Tower
No
Attendance
MAR-OCT 0800-1700
NOV-FEB 0800-1600
CLSD FED HOL.
Owner
CITY OF PORTLAND
100 SOUTH RUSSELL ST.
MOBILE, TN 37148
Phone: 615-533-7210
Manager
DOUGLAS HUNTER
601 AIRPORT RD
PORTLAND, TN 37148
Phone: 615-323-7500
FSS
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
NOTAM
BNA
Light Schedule
--
Lights
ACTVT MIRL RWY 01/19 - CTAF. PAPI RWY 01 & 19 ON CONSLY.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Pilot Instruction
Aircraft Rental
Runway 01/19
Dimensions
5003 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
13 /F/C/X/T
Single Wheel
30,000lbs
Double Wheel
50,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 01
Runway 19
True Heading
11°
191°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
36° 35' 10"N
36° 35' 59"N
Longitude
86° 28' 43"W
86° 28' 31"W
Elevation
818'
770'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
P4R
P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
FOR CD CTC NASHVILLE APCH AT 615-695-4524.
DOUGLAS HUNTER FLD (IATA: 1M5) is a public airport located in PORTLAND, TN.
