1O4
THOMAS MUNI
Public
PUB
1 miles SE of THOMAS, OK
View on
Map
Status
Operational
Coordinates
35° 44' 01"N
98° 43' 50"W
Elevation
1732' MSL
Pattern Alt
2732' MSL
Mag Variation
05E
Fuel
100LL
FSS
MC ALESTER (MLC)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
11/28/24-12/26/24
KOJA (12nm)
MVFR
6:35 AM CST
RAW
Overcast 2,800'
Scattered 2,000'
Viz
10sm
Temp
51°F
Dew
46°F
Pres
30.00"Hg
Wind
180° 9kts
RMK
AO2 PWINO TSNO T01080075
KOJA 231235Z AUTO 18009KT 10SM SCT020 OVC028 11/07 A3000 RMK AO2 PWINO TSNO T01080075
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
1O4 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

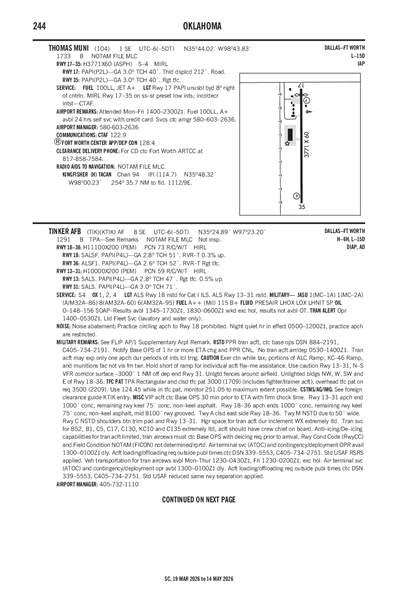

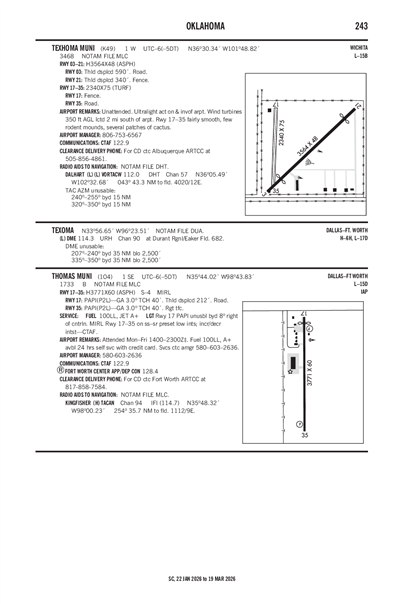

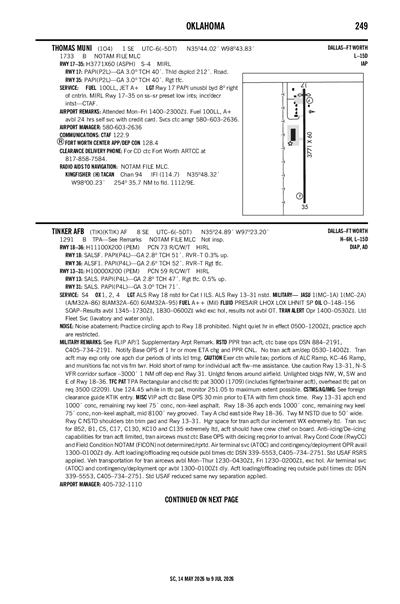

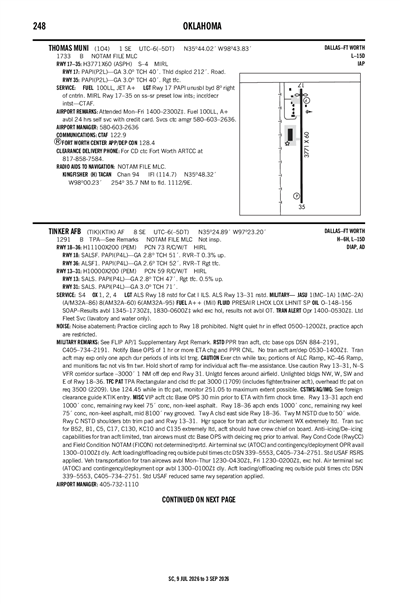

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 17
RNAV (GPS) RWY 35
Terminal Area Forecast
KCSM (32nm)
RAW
Reported
Mon, 12/23 5:20 AM CST
Valid
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 9:00 AM CST
Mist
Overcast 1,500'
Viz
6sm
Wind
180° 16kts
IFR
Temporary
8:00 AM CST - 9:00 AM CST
Mist
Overcast 800'
Viz
5sm
Wind
Calm
IFR
9:00 AM CST - 5:00 PM CST
Light Drizzle and Mist
Overcast 800'
Viz
6sm
Wind
170° 14kts
MVFR
Temporary
2:00 PM CST - 5:00 PM CST
Overcast 1,000'
Viz
N/A
Wind
Calm
IFR
5:00 PM CST - 10:00 PM CST
Light Drizzle and Mist
Overcast 800'
Viz
5sm
Wind
060° 10kts
LIFR
10:00 PM CST - 6:00 AM CST
Mist
Overcast 300'
Viz
3sm
Wind
020° 10kts
KCSM 231120Z 2312/2412 18016KT 6SM BR OVC015
TEMPO 2314/2315 5SM BR OVC008
FM231500 17014KT 6SM -DZ BR OVC008
TEMPO 2320/2323 OVC010
FM232300 06010KT 5SM -DZ BR OVC008
FM240400 02010KT 3SM BR OVC003
1O4
Domestic
12/18/24
1120Z
!MLC 12/156 1O4 OBST TOWER LGT (ASR 1269939) 355538.20N0984246.10W (11.6NM NE 1O4) 2236.2FT (349.1FT AGL) U/S 2412181120-2501021020
11/25/24
0232Z
!MLC 11/355 1O4 OBST TOWER LGT (ASR 1050813) 354602.00N0984443.00W (2.1NM NNW 1O4) 2158.5FT (304.8FT AGL) U/S 2411250232-2412252359
ATC Tower
No
Attendance
MON-FRI 0800-1700
Owner
CITY OF THOMAS
CITY HALL, P. O. BOX 250
THOMAS, OK 73669
Phone: 580-603-2636
Manager
RODNEY WILSON
P. O. BOX 250, P. O. BOX 641
THOMAS, OK 73669
Phone: 580-603-2636
FSS
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
NOTAM
MLC
Light Schedule
--
Lights
DUSK-DAWN. MIRL RY 17/35 PRESET ON LOW INTST; TO INCR INTST ACTVT - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Pilot Instruction
Aircraft Sales
Runway 17/35
Dimensions
3771 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
4,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 17
Runway 35
True Heading
180°
360°
Traffic Pattern
Left
Right
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
35° 44' 20"N
35° 43' 43"N
Longitude
98° 43' 50"W
98° 43' 50"W
Elevation
1,732'
1,732'
Threshold Crossing Height
40 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
THOMAS MUNI (IATA: 1O4) is a public airport located in THOMAS, OK.
