iFlightPlanner



...

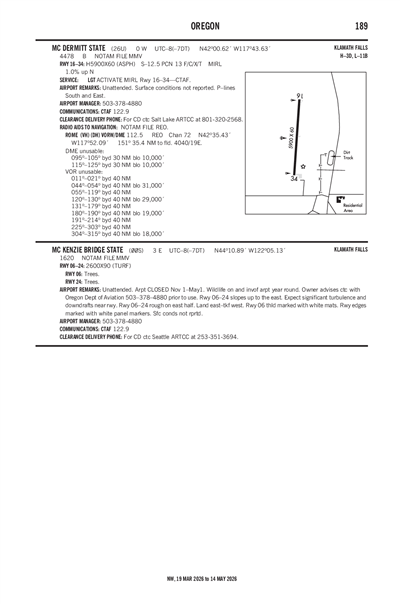

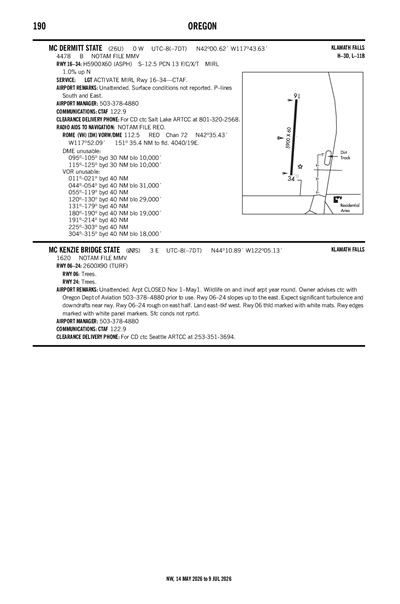

MC DERMITT STATE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

26U
MC DERMITT STATE
PublicPUB

0 miles W of MC DERMITT, OR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 00' 37"N 117° 43' 38"W
4478' MSL
5478' MSL
17E
None Listed
MC MINNVILLE (MMV)
KLAMATH FALLS
SALT LAKE CITY (ZLC)
11/28/24-12/26/24
KREO (35nm) VFR
4:52 AM MST
No Clouds
N/A
43°F
36°F
30.13"Hg
230° 8kts
AO1 SLP204 T00610022 10061 21006 51013
KREO 231152Z AUTO 23008KT 06/02 A3013 RMK AO1 SLP204 T00610022 10061 21006 51013
Add Your Business

26U FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KWMC (67nm)
Mon, 12/23 3:20 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
VFR
4:00 AM PST - 11:00 AM PST
Overcast 25,000'
Broken 5,000'
6sm
VRB° 4kts
VFR
11:00 AM PST - 10:00 PM PST
Broken 25,000'
Scattered 5,000'
6sm
190° 6kts
VFR
10:00 PM PST - 4:00 AM PST
Broken 25,000'
Few 5,000'
6sm
100° 8kts
KWMC 231120Z 2312/2412 VRB04KT P6SM BKN050 OVC250
   FM231900 19006KT P6SM SCT050 BKN250
   FM240600 10008KT P6SM FEW050 BKN250
26U
No NOTAM Available
No
UNATNDD
OREGON DEPARTMENT OF AVIATION
3040 25TH ST SE
SALEM, OR 97302-1125
Phone: 503-378-4880
STATE AIRPORTS MANAGER
3040 25TH ST SE
SALEM, OR 97302-1125
Phone: 503-378-4880
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
--
ACTVT MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway 16/34

5900 ft. x 60 ft.
ASPH
Excellent
NONE
MED
13 /F/C/X/T
12,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 183°3°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 01' 06"N 42° 00' 08"N
Longitude 117° 43' 36"W 117° 43' 40"W
Elevation 4,478' 4,419'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RISING TERRAIN TO NORTH OF ARPT AT APPROXIMATELY 2% FOR 10000 FT.
A110-3SURFACE CONDITIONS NOT REPORTED.
A110-4FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
MC DERMITT STATE (IATA: 26U) is a public airport located in MC DERMITT, OR.
