PALATKA MUNI/LT KAY LARKIN FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

28J
PALATKA MUNI/LT KAY LARKIN FLD
PublicPUB

2 miles NW of PALATKA, FL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 39' 30"N 81° 41' 22"W
48' MSL
1048' MSL
05W
JET A, 100LL
GAINESVILLE (GNV)
JACKSONVILLE
JACKSONVILLE (ZJX)
11/28/24-12/26/24
K28J MVFR
7:35 AM EST
Overcast 1,400'
7sm
55°F
54°F
30.32"Hg
020° 8kts
Gusts 13kts
AO2
K28J 231235Z AUTO 02008G13KT 350V050 7SM OVC014 13/12 A3032 RMK AO2

28J FBOs

Palatka Municipal Airport
UNICOM: 122.8
Phone: (386) 329-0148
Other: (386) 329-0149
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 12/19
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.59 5.65
Full Serve 6.40 6.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
386-312-2212
119.925

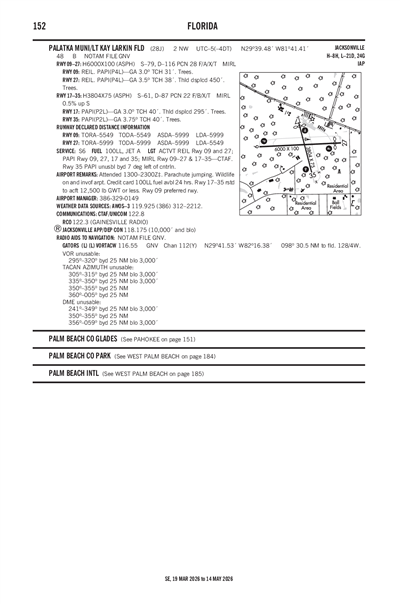

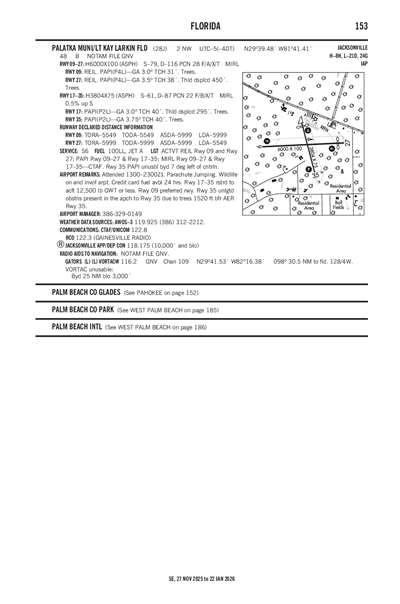

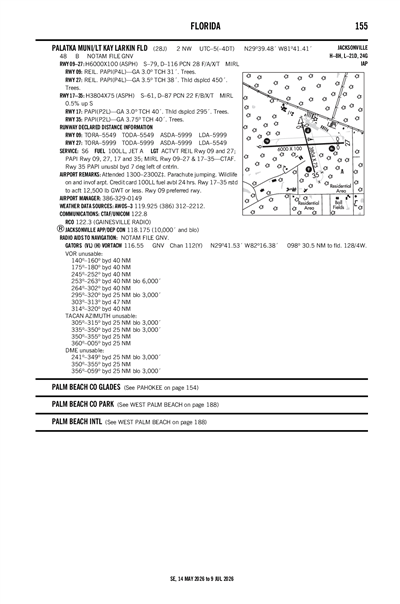

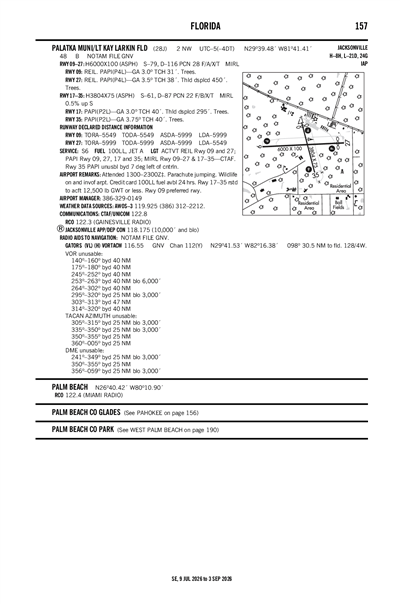

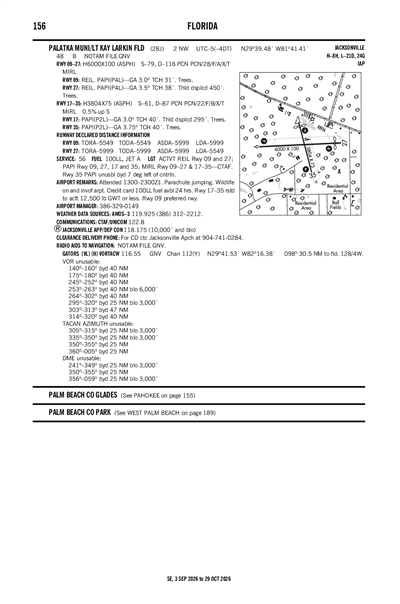

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSGJ (26nm)
Mon, 12/23 7:15 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
MVFR
7:00 AM EST - 6:00 PM EST
Showers in vicinity
Broken 2,500'
Scattered 1,000'
6sm
010° 12kts
Gusts 18kts
MVFR
Temporary 7:00 AM EST - 10:00 AM EST
Overcast 1,000'
N/A
Calm
MVFR
6:00 PM EST - 11:00 PM EST
Mist and Showers in vicinity
Broken 1,000'
6sm
360° 12kts
Gusts 20kts
LIFR
11:00 PM EST - 7:00 AM EST
Overcast 400'
6sm
360° 10kts
KSGJ 231215Z 2312/2412 01012G18KT P6SM VCSH SCT010 BKN025
   TEMPO 2312/2315 OVC010
   FM232300 36012G20KT 6SM BR VCSH BKN010
   FM240400 36010KT P6SM OVC004
28J
Domestic
12/20/241558Z !GNV 12/227 28J OBST TOWER LGT (ASR 1037998) 293751.50N0814934.30W (7.4NM WSW 28J) 338.9FT (253.0FT AGL) U/S 2412201558-2503210500
12/12/241615Z !GNV 12/153 28J OBST TOWER LGT (ASR 1028642) 293710.30N0813934.00W (2.8NM SE 28J) 389.8FT (359.9FT AGL) U/S 2412121615-2412270500
12/2/241741Z !GNV 12/016 28J OBST TOWER LGT (ASR 1315953) 293638.50N0814313.80W (3.28NM SW 28J) 318FT (260FT AGL) U/S 2412021741-2501022300
11/8/241609Z !GNV 11/096 28J SVC AUTOMATED WX BCST SYSTEM ALTIMETER SETTING U/S 2411081609-2503262359
8/29/241507Z !GNV 08/618 28J RWY 09/27 REDL U/S 2408291507-2502282111EST
8/29/241503Z !GNV 08/617 28J RWY 27 RWY END ID LGT U/S 2408291503-2502282111EST
8/29/241503Z !GNV 08/616 28J RWY 09 RWY END ID LGT U/S 2408291503-2502282111EST
8/29/241502Z !GNV 08/615 28J RWY 27 PAPI U/S 2408291502-2502282111EST
8/29/241501Z !GNV 08/614 28J RWY 09 PAPI U/S 2408291501-2502282111EST
No
0800-1800
CITY OF PALATKA
201 NORTH 2ND ST
PALATKA, FL 32177
Phone: 386-329-0100
YUL MCNAIR
4015 REID ST, HWY 100
PALATKA, FL 32177
Phone: 386-329-0148
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09, 27, 17 & 35; MIRL RWY 09/27 & 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Major
None
None
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 09/27

6000 ft. x 100 ft.
ASPH
Good
NONE
MED
28 /F/A/X/T
21,000lbs
60,000lbs
--
--
  Runway 09 Runway 27
True Heading 87°267°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 39' 28"N 29° 39' 31"N
Longitude 81° 41' 60"W 81° 40' 52"W
Elevation 32' 31'
Threshold Crossing Height 31 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

3510 ft. x 75 ft.
ASPH
Good
NONE
MED
22 /F/B/X/T
31,000lbs
60,000lbs
--
--
  Runway 17 Runway 35
True Heading 165°345°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 29° 39' 43"N 29° 39' 09"N
Longitude 81° 41' 26"W 81° 41' 17"W
Elevation 29' 48'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.75°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-7WILDLIFE ON & INVOF ARPT.
A110-9UNLGTD OBSTNS PRESENT IN THE APCH TO RWY 35 DUE TO TREES 1520 FT BFR AER RWY 35.
PALATKA MUNI/LT KAY LARKIN FLD (IATA: 28J) is a public airport located in PALATKA, FL.
