28U
OWYHEE RESERVOIR STATE
Public
PUB
25 miles SW of OWYHEE, OR
View on
Map
Status
Operational
Coordinates
43° 25' 29"N
117° 20' 44"W
Elevation
2680' MSL
Pattern Alt
3680' MSL
Mag Variation
17E
Fuel
None Listed
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
11/28/24-12/26/24
KEUL (34nm)
LIFR
5:34 AM MST
RAW
Light Rain and Mist
Overcast 700'
Broken 300'
Viz
3sm
Temp
36°F
Dew
36°F
Pres
30.19"Hg
Wind
270° 5kts
RMK
AO2 UPB26E33RAB33 P0000 FZRANO
KEUL 231234Z AUTO 27005KT 3SM -RA BR BKN003 OVC007 02/02 A3019 RMK AO2 UPB26E33RAB33 P0000 FZRANO
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
28U FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

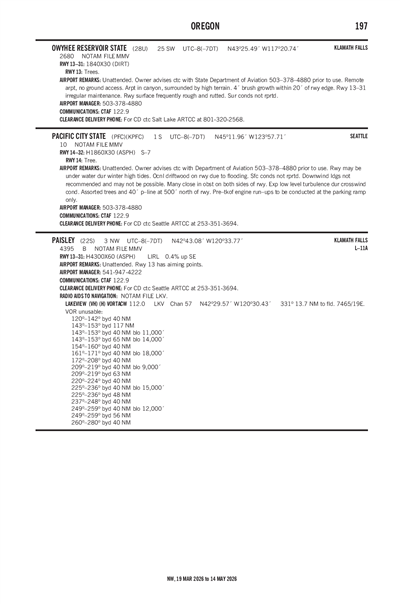

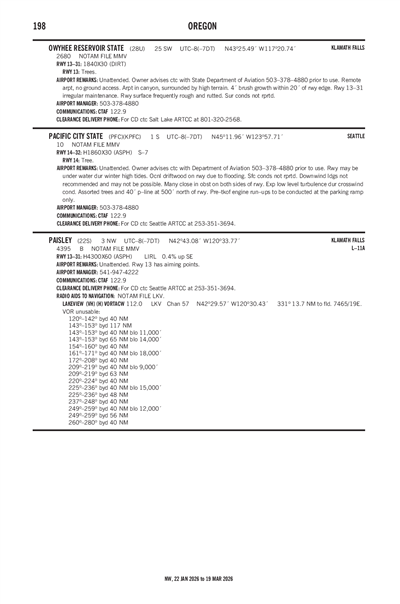

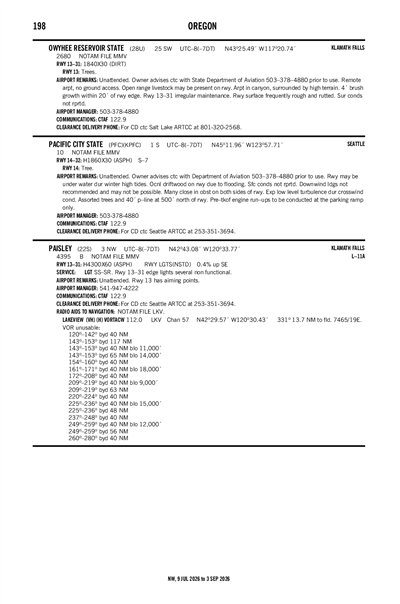

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KEUL (34nm)
RAW
Reported
Mon, 12/23 4:43 AM MST
Valid
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
LIFR
5:00 AM MST - 10:00 AM MST
Mist
Overcast 300'
Viz
0.75sm
Wind
VRB° 4kts
LIFR
Temporary
5:00 AM MST - 8:00 AM MST
Light Showers and Rain and Mist
Overcast 2,500'
Broken 300'
Viz
3sm
Wind
Calm
MVFR
10:00 AM MST - 1:00 PM MST
Mist
Overcast 3,500'
Scattered 300'
Viz
4sm
Wind
VRB° 4kts
VFR
1:00 PM MST - 10:00 PM MST
Broken 5,000'
Viz
6sm
Wind
VRB° 4kts
VFR
10:00 PM MST - 1:00 AM MST
Overcast 15,000'
Viz
6sm
Wind
120° 10kts
Shear 150° 40kts @ 2000'
VFR
1:00 AM MST - 5:00 AM MST
Overcast 12,000'
Viz
6sm
Wind
120° 15kts
Gusts 25kts
Shear 150° 45kts @ 2000'
KEUL 231143Z 2312/2412 VRB04KT 3/4SM BR OVC003
TEMPO 2312/2315 3SM -SHRA BR BKN003 OVC025
FM231700 VRB04KT 4SM BR SCT003 OVC035
FM232000 VRB04KT P6SM BKN050
FM240500 12010KT P6SM OVC150 WS020/15040KT
FM240800 12015G25KT P6SM OVC120 WS020/15045KT
28U
Domestic
12/5/24
2236Z
!MMV 12/030 28U OBST TOWER LGT (ASR 1302053) 431358.68N1170305.37W (17.3NM SE 28U) 4571FT (205FT AGL) U/S 2412052236-2501192236
ATC Tower
No
Attendance
UNATNDD
Owner
OREGON DEPT. OF AVIATION
3040 25TH ST, SE
SALEM, OR 97302-1125
Phone: 503-378-4880
Manager
STATE AIRPORTS MANAGER
3040 25TH ST, SE
SALEM, OR 97302-1125
Phone: 503-378-4880
FSS
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
NOTAM
MMV
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 13/31
Dimensions
1840 ft. x 30 ft.
Surface Type
DIRT
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 13
Runway 31
True Heading
142°
322°
Traffic Pattern
Left
Left
Markings
Markings Condition
Latitude
43° 25' 37"N
43° 25' 22"N
Longitude
117° 20' 52"W
117° 20' 37"W
Elevation
2,678'
2,678'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
OWNER ADVISES CONTACT WITH STATE DEPT OF AVIATION 503-378-4880 PRIOR TO USE.
A110-2
REMOTE AIRPORT; NO GROUND ACCESS.
A110-3
AIRPORT IN CANYON; SURROUNDED BY HIGH TERRAIN.
A110-4
4 FT BRUSH GROWTH WITHIN 20 FT OF RWY EDGE.
A110-5
FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-6
SUR CONDS NOT RPRTD
OWYHEE RESERVOIR STATE (IATA: 28U) is a public airport located in OWYHEE, OR.
