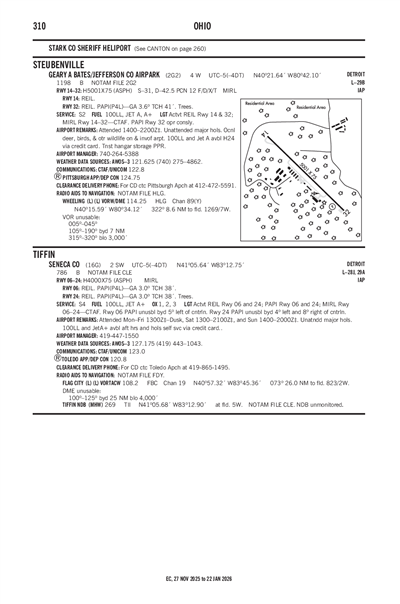

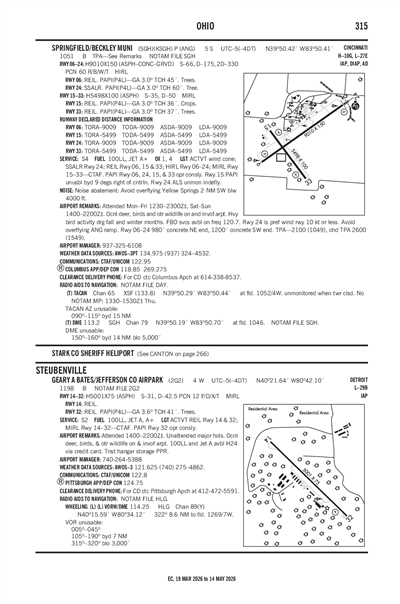

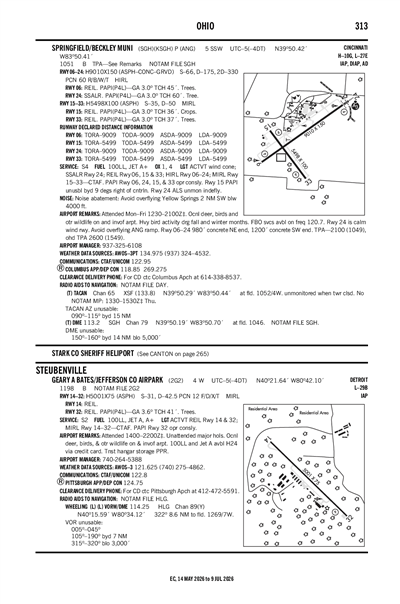

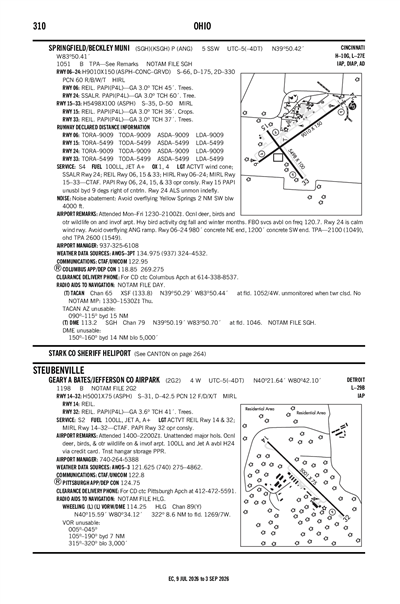

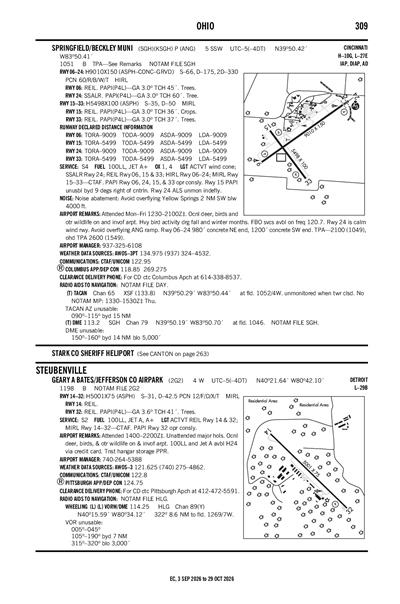

GEARY A BATES/JEFFERSON COUNTY AIRPARK - Airport Diagram

2G2

GEARY A BATES/JEFFERSON COUNTY AIRPARK

PublicPUB

4 miles W of STEUBENVILLE, OH

View on Map

Status

Operational

Coordinates

40° 21' 38"N 80° 42' 06"W

Elevation

1198' MSL

Pattern Alt

2198' MSL

Mag Variation

08W

Fuel

JET A, JET A (FSII), 100LL

FSS

CLEVELAND (CLE)

Sectional

DETROIT

ARTCC

CLEVELAND (ZOB)

Data Effective

11/28/24-12/26/24

K2G2 VFR

6:55 AM EST RAW

Clear

Viz

10sm

Temp

14°F

Dew

10°F

Pres

30.40"Hg

Wind

Calm

RMK

A01

K2G2 231155Z AUTO 00000KT 10SM CLR M10/M12 A3040 RMK A01

Add Your Business

2G2 FBOs

Promote Listing

Jefferson County Airpark

UNICOM: 122.8

Phone: (740) 264-5388

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 12/15	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.15	4.99	5.04
Full Serve	6.15	4.99	5.04

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

740-275-4862

121.625

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KHLG (12nm)

RAW

Reported

Mon, 12/23 6:20 AM EST

Valid

Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST

VFR

7:00 AM EST - 9:00 PM EST

Broken 20,000'

Viz

6sm

Wind

180° 6kts

VFR

9:00 PM EST - 12:00 AM EST

Overcast 4,000'

Viz

6sm

Wind

190° 10kts

VFR

12:00 AM EST - 2:00 AM EST

Light Rain

Overcast 4,000'

Viz

6sm

Wind

220° 10kts

IFR

2:00 AM EST - 5:00 AM EST

Light Snow

Overcast 1,000'

Viz

2sm

Wind

240° 12kts

Gusts 20kts

IFR

5:00 AM EST - 7:00 AM EST

Overcast 800'

Viz

6sm

Wind

230° 8kts

KHLG 231120Z 2312/2412 18006KT P6SM BKN200
   FM240200 19010KT P6SM OVC040
   FM240500 22010KT 6SM -RA OVC040
   FM240700 24012G20KT 2SM -SN OVC010
   FM241000 23008KT P6SM OVC008

2G2

Domestic
12/18/241949Z	!2G2 12/005 2G2 OBST TOWER LGT (ASN 2022-AGL-2926-OE) 402623N0805434W (10.5NM WNW 2G2) 1254FT (97FT AGL) U/S 2412181949-2501182359
12/5/242319Z	!2G2 12/003 2G2 OBST TOWER LGT (ASR 1015800) 401958.30N0803805.80W (3.5NM ESE 2G2) 1427.8FT (220.8FT AGL) U/S 2412052319-2501192318
10/28/241900Z	!2G2 10/012 2G2 AD AP WINDCONE MIDFIELD NOT STD 2410281900-2412312100

ATC Tower

Attendance

0900-1700
UNATNDD MAJOR HOLS.

Owner

JEFFERSON CO COMMISSIONERS
PO BOX 383
STEUBENVILLE, OH 43952-5383
Phone: 740-283-8500

Manager

BRIAN THAXTON
600 AIRPARK DR
WINTERSVILLE, OH 43953-9237
Phone: 740-264-5388

FSS

CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF

NOTAM

2G2

Light Schedule

Lights

ACTVT REIL RWY 14 & 32; MIRL RWY 14/32 - CTAF. PAPI RWY 32 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental

Runway 14/32

Dimensions

5001 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

12 /F/D/X/T

Single Wheel

31,000lbs

Double Wheel

42,000lbs

Double Tandem

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	134°	314°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	POOR	FAIR
Latitude	40° 21' 55"N	40° 21' 21"N
Longitude	80° 42' 29"W	80° 41' 43"W
Elevation	1,198'	1,190'
Threshold Crossing Height	--	41 ft. AGL
Visual Glide Path Angle	--	3.6°
Visual Slope Indicator	--	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-1	OCNL DEER, BIRDS, & OTR WILDLIFE ON & INVOF ARPT.
A110-2	FOR CD CTC PITTSBURGH APCH AT 412-472-5591.

GEARY A BATES/JEFFERSON COUNTY AIRPARK (IATA: 2G2) is a public airport located in STEUBENVILLE, OH.
