iFlightPlanner



...

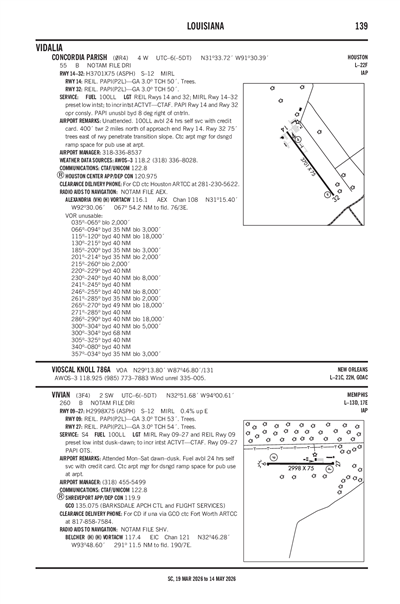

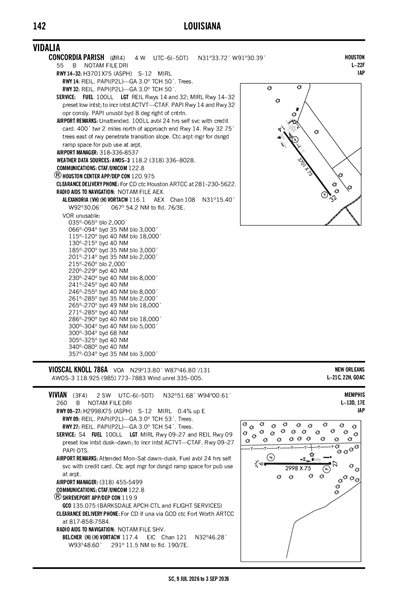

VIVIAN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3F4
VIVIAN
PublicPUB

2 miles SW of VIVIAN, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 51' 41"N 94° 00' 37"W
260' MSL
1260' MSL
02E
100LL
DE RIDDER (DRI)
MEMPHIS
FORT WORTH (ZFW)
5/16/24-6/13/24
KATA (17nm) VFR
11:15 PM CDT
Clear
9sm
66°F
66°F
29.93"Hg
Calm
AO2 SLP034 T01910191 $
KATA 010415Z AUTO 00000KT 9SM CLR 19/19 A2993 RMK AO2 SLP034 T01910191 $
Add Your Business

3F4 FBOs

Promote Listing
Vivian Airport
UNICOM: 122.8
Phone: (318) 375-3856
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.95
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSHV (27nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
MVFR
7:00 PM CDT - 1:00 AM CDT
Broken 2,000'
6sm
VRB° 4kts
MVFR
1:00 AM CDT - 7:00 AM CDT
Overcast 1,000'
6sm
150° 3kts
IFR
7:00 AM CDT - 10:00 AM CDT
Mist
Overcast 500'
6sm
170° 3kts
MVFR
10:00 AM CDT - 1:00 PM CDT
Overcast 1,500'
6sm
230° 6kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 5,000'
6sm
240° 6kts
KSHV 312320Z 0100/0124 VRB04KT P6SM BKN020
   FM010600 15003KT P6SM OVC010
   FM011200 17003KT 6SM BR OVC005
   FM011500 23006KT P6SM OVC015
   FM011800 24006KT P6SM BKN050
3F4
Domestic
5/29/240434Z !DRI 05/796 3F4 OBST TOWER LGT (ASR 1279756) 325002.10N0941019.90W (8.4NM W 3F4) 563.3FT (222.1FT AGL) U/S 2405290434-2406130334
5/23/241348Z !DRI 05/696 3F4 OBST TOWER LGT (ASR 1021111) 325405.40N0940003.60W (2.4NM NE 3F4) 690.9FT (412.1FT AGL) U/S 2405231348-2409201348
5/23/240427Z !DRI 05/669 3F4 OBST TOWER LGT (ASR 1241195) 324135.50N0935601.70W (10.7NM SSE 3F4) 548.2FT (349.1FT AGL) U/S 2405230427-2406070327
4/12/242347Z !DRI 04/454 3F4 APRON MIDFIELD APN CLSD 2404122347-2406152200
3/27/241424Z !DRI 03/610 3F4 OBST TOWER LGT (ASR 1058800) 324731.90N0934441.70W (14.0NM ESE 3F4) 525.9FT (212.9FT AGL) U/S 2403271424-2406272359
3/14/240019Z !DRI 03/301 3F4 RWY 09 PAPI U/S 2403140019-2406142359
3/1/241705Z !DRI 03/019 3F4 OBST TOWER LGT (ASR 1051611) 325408.00N0935859.00W (2.8NM NNE 3F4) 518.0FT (248.0FT AGL) U/S 2403011705-2409012359
No
MON-SAT DAWN-DUSK
TOWN OF VIVIAN
P. O. BOX 832
VIVIAN, LA 71082
Phone: 318-375-3856
MR. MARTY MUSICK
P. O. BOX 648
VIVIAN, LA 71082
Phone: (318) 455-5499
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
DRI
--
MIRL RY 09/27 AND REIL RY 09 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
0
0
1
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction

Runway 09/27

2998 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 51' 41"N 32° 51' 41"N
Longitude 94° 00' 54"W 94° 00' 19"W
Elevation 247' 259'
Threshold Crossing Height 52 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1GCO AVBL ON FREQ 135.075 THRU BAD APCH CTL AND FLT SVCS.
A110-3FOR CD IF UNA VIA GCO CTC FORT WORTH ARTCC AT 817-858-7584.
VIVIAN (IATA: 3F4) is a public airport located in VIVIAN, LA.
