3LF
LITCHFIELD MUNI
PublicPUB

2 miles SW of LITCHFIELD, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 09' 45"N 89° 40' 29"W
690' MSL
1690' MSL
01E
JET A, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
11/28/24-12/26/24
K3LF VFR
7:15 AM CST
Overcast 7,000'
10sm
36°F
27°F
30.16"Hg
170° 12kts
Gusts 17kts
AO2 T00221029
K3LF 231315Z AUTO 17012G17KT 10SM OVC070 02/M03 A3016 RMK AO2 T00221029
Add Your Business

3LF FBOs

Promote Listing
Litchfield Municipal Airport
UNICOM: 122.8
Phone: (217) 556-4299
Other: (217) 324-4731
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.75 5.25
Full Serve
Fuel Notes
Prices include tax
Promote Listing
Central Air Services
UNICOM: 122.8
Phone: (217) 324-3620
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.75 5.25
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
217-324-4735
 118.175

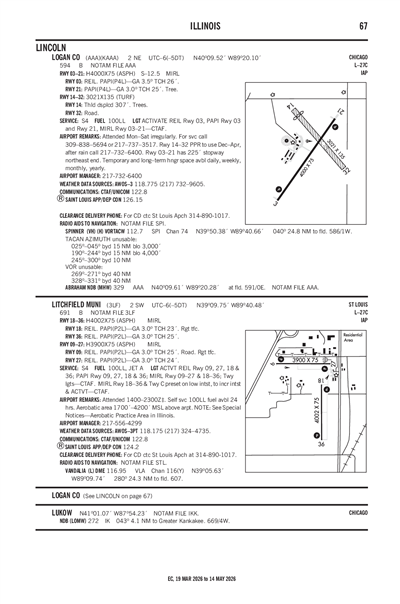

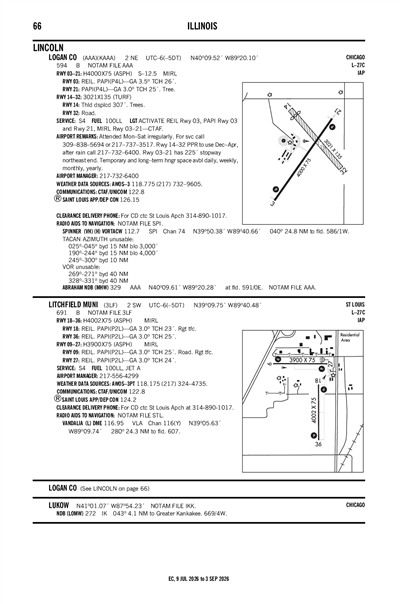

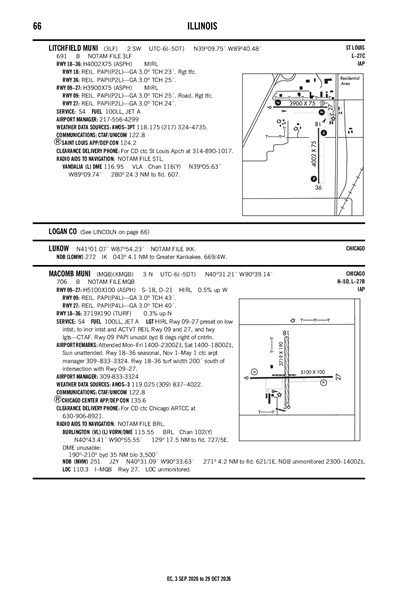

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBLV (38nm)
Mon, 12/23 6:40 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 8:00 AM CST
VFR
6:00 AM CST - 8:00 AM CST
Scattered 15,000'
Few 5,000'
6sm
30.18"Hg
180° 9kts
Shear 190° 35kts @ 2000'
MVFR
Becoming 8:00 AM CST - 12:00 PM CST
Overcast 4,000'
Broken 3,000'
6sm
30.18"Hg
190° 12kts
Gusts 25kts
MVFR
Becoming 12:00 PM CST - 6:00 PM CST
Overcast 3,500'
Broken 2,000'
Few 1,500'
6sm
30.15"Hg
190° 12kts
Gusts 20kts
MVFR
Becoming 6:00 PM CST - 2:00 AM CST
Broken 1,500'
6sm
30.15"Hg
190° 6kts
MVFR
Becoming 2:00 AM CST - 8:00 AM CST
Overcast 1,000'
6sm
30.21"Hg
030° 6kts
TAF AMD KBLV 231240Z 2312/2414 18009KT 9999 FEW050 SCT150 WS020/19035KT QNH3019INS
   BECMG 2314/2315 19012G25KT 9999 BKN030 OVC040 QNH3019INS
   BECMG 2318/2319 19012G20KT 9999 FEW015 BKN020 OVC035 QNH3014INS
   BECMG 2400/2401 19006KT 9999 BKN015 QNH3016INS
   BECMG 2408/2409 03006KT 9999 OVC010 QNH3021INS TX09/2322Z TN06/2312Z
3LF
Domestic
12/18/241142Z !3LF 12/004 3LF OBST TOWER LGT (ASN 2017-AGL-10836-OE) 390421N0894511W (6.5NM SW 3LF) 886FT (230FT AGL) U/S 2412181142-2502011141
12/7/242122Z !3LF 12/003 3LF OBST TOWER LGT (ASN 2022-AGL-21058-OE) 385927N0893416W (11.3NM SSE 3LF) 866FT (285FT AGL) U/S 2412072122-2501212121
12/2/242104Z !3LF 12/002 3LF OBST TOWER LGT (ASN 2023-AGL-3458-OE) 390023N0893347W (10.7NM SSE 3LF) 893FT (310FT AGL) U/S 2412022104-2501022300
12/1/240412Z !3LF 12/001 3LF OBST TOWER LGT (ASN 2019-AGL-1340-OE) 391456N0893742W (5.6NM NNE 3LF) 1000FT (355FT AGL) U/S 2412010412-2501150411
11/26/242359Z !3LF 11/004 3LF RWY 27 PAPI U/S 2411262359-2505262111EST
11/26/242359Z !3LF 11/003 3LF RWY 09 PAPI U/S 2411262359-2505262111EST
10/17/241340Z !3LF 10/004 3LF RWY 36 PAPI U/S 2410171340-2504172111EST
10/8/240229Z !3LF 10/002 3LF OBST TOWER LGT (ASR 1271922) 391645.00N0894700.30W (8.6NM NW 3LF) 895.0FT (257.9FT AGL) U/S 2410080229-2501312359
8/1/241346Z !3LF 08/002 3LF RWY 27 RWY END ID LGT U/S 2408011346-2501312111EST
8/1/241344Z !3LF 08/001 3LF RWY 09 RWY END ID LGT U/S 2408011344-2501312111EST
1/2/241954Z !3LF 01/001 3LF AIRSPACE SEE ZKC 01/022 HIGH SPEED ACFT 2401021954-2501010600
No
0800-1700
LITCHFIELD ARPT AUTH
1201 US ROUTE 66 SOUTH, P.O. BOX 381
LITCHFIELD, IL 62056
Phone: 217-324-6507
NICHOLAS WEATHERFORD
1201US ROUTE 66 SOUTH, P.O. BOX 381
LITCHFIELD, IL 62056
Phone: 217-556-4299
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
3LF
--
ACTVT REIL RWY 09, 27, 18 & 36; PAPI RWY 09, 27, 18 & 36; MIRL RWY 09/27 & 18/36; TWY LGTS - CTAF. MIRL RWY 18/36 & TWY C PRESET ON LOW INTST, TO INCR INTST & ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

3900 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 10' 02"N 39° 10' 02"N
Longitude 89° 41' 02"W 89° 40' 12"W
Elevation 682' 690'
Threshold Crossing Height 25 ft. AGL 24 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18/36

4002 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 09' 48"N 39° 09' 08"N
Longitude 89° 40' 21"W 89° 40' 20"W
Elevation 685' 680'
Threshold Crossing Height 23 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-2AEROBATIC AREA 1700 FT - 4200 FT MSL ABOVE ARPT.
A110-3FOR CD CTC ST LOUIS APCH AT 314-890-1017.
LITCHFIELD MUNI (IATA: 3LF) is a public airport located in LITCHFIELD, IL.
