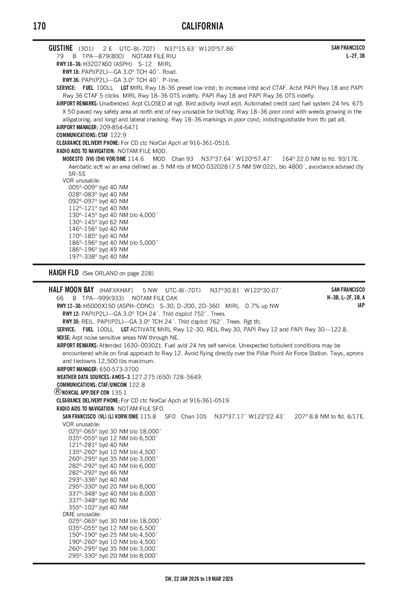

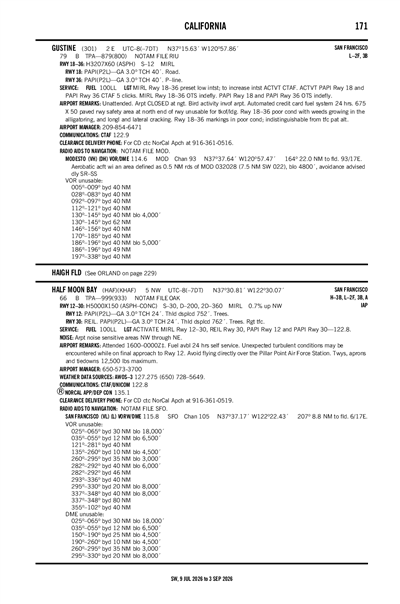

GUSTINE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3O1
GUSTINE
PublicPUB

2 miles E of GUSTINE, CA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 15' 38"N 120° 57' 51"W
79' MSL
879' MSL
16E
100LL
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
11/28/24-12/26/24
KMCE (21nm) MVFR
3:53 AM PST
Mist
Broken 8,500'
5sm
51°F
47°F
30.16"Hg
120° 4kts
AO2 SLP211 70002 T01060083 10128 20094 58007
KMCE 231153Z AUTO 12004KT 5SM BR BKN085 11/08 A3016 RMK AO2 SLP211 70002 T01060083 10128 20094 58007

3O1 FBOs

Gustine Airport
UNICOM: 122.9
Phone: (209) 854-6471
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 12/11
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.05
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KMER (20nm)
Mon, 12/23 3:20 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
MVFR
4:00 AM PST - 10:00 AM PST
Mist
Broken 25,000'
4sm
VRB° 4kts
IFR
Temporary 4:00 AM PST - 8:00 AM PST
Mist
No Clouds
1.5sm
Calm
VFR
10:00 AM PST - 9:00 PM PST
Broken 25,000'
6sm
VRB° 4kts
MVFR
9:00 PM PST - 2:00 AM PST
Mist
Broken 25,000'
4sm
VRB° 6kts
IFR
2:00 AM PST - 4:00 AM PST
Mist
Broken 5,000'
2sm
130° 7kts
KMER 231120Z 2312/2412 VRB04KT 4SM BR BKN250
   TEMPO 2312/2316 1 1/2SM BR
   FM231800 VRB04KT P6SM BKN250
   FM240500 VRB06KT 4SM BR BKN250
   FM241000 13007KT 2SM BR BKN050 AMD NOT SKED
3O1
Domestic
12/18/242334Z !RIU 12/129 3O1 AD AP FUEL NOT AVBL 2412182334-2501080100
3/22/240217Z !RIU 03/093 3O1 AD AP CLSD DLY SS-SR 2403220217-2412311518
3/21/241621Z !RIU 03/095 3O1 RWY 36 PAPI U/S 2403211621-2412311518
3/21/241621Z !RIU 03/094 3O1 RWY 18 PAPI U/S 2403211621-2412311518
No
UNATNDD
CITY OF GUSTINE
PO BOX 16, 352 FIFTH STREET
GUSTINE, CA 95322-0016
Phone: 209-854-6471
JAMI WESTERVELT
PO BOX 16, 352 FIFTH STREET
GUSTINE, CA 95322-0016
Phone: 209-854-6471
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
MIRL RWY 18/36 PRESET LOW INTST; TO INCREASE INTST ACTVT CTAF. ACTVT PAPI RWY 18 & PAPI RWY 36 CTAF 5 CLICKS. MIRL RWY 18/36 OTS INDEFLY. PAPI RWY 18 & PAPI RWY 36 OTS INDEFLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 18/36

3207 ft. x 60 ft.
ASPH
Poor
NONE
MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 196°16°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 37° 15' 53"N 37° 15' 23"N
Longitude 120° 57' 46"W 120° 57' 57"W
Elevation 78' 79'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1675 X 50 PAVED RY SAFETY AREA AT NORTH END OF RY UNUSABLE FOR TKOF/LNDG.
A110-4BIRD ACTIVITY INVOF ARPT.
A110-5FOR CD CTC NORCAL APCH AT 916-361-0516.
A110-6ARPT CLSD AT NGT.
A110-7RWY 18/36 MARKINGS IN POOR COND; INDISTINGUISHABLE FROM TFC PAT ALT.
GUSTINE (IATA: 3O1) is a public airport located in GUSTINE, CA.
