VALLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

40G
VALLE
PublicPUB

25 miles S of GRAND CANYON, AZ
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 39' 02"N 112° 08' 53"W
5999' MSL
6999' MSL
13E
None Listed
PRESCOTT (PRC)
PHOENIX
LOS ANGELES (ZLA)
11/28/24-12/26/24
KGCN (18nm) VFR
4:54 AM MST
Clear
10sm
28°F
17°F
30.19"Hg
Calm
AO2 SLP194 T10221083 10028 21039 58001
KGCN 231154Z AUTO 00000KT 10SM CLR M02/M08 A3019 RMK AO2 SLP194 T10221083 10028 21039 58001

40G FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

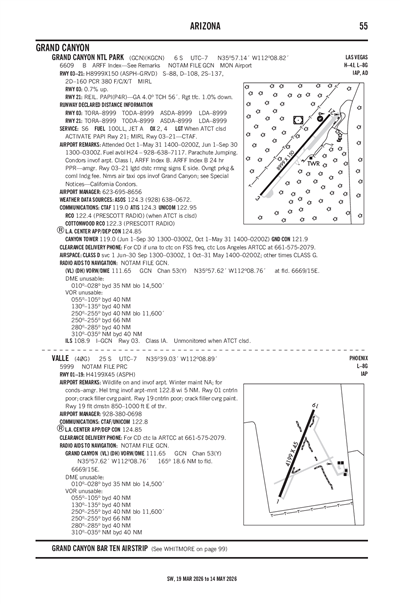

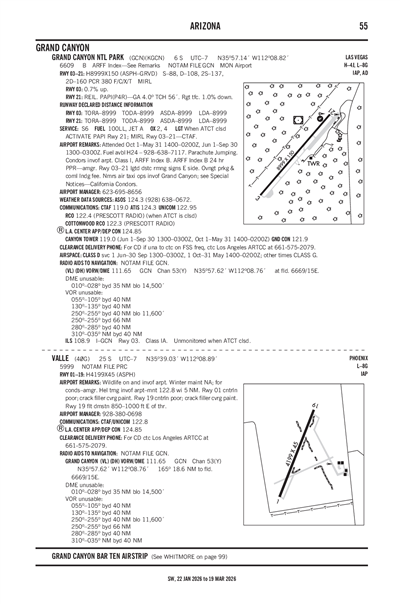

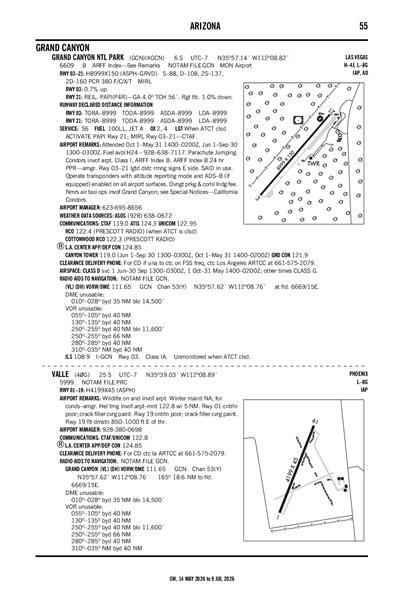

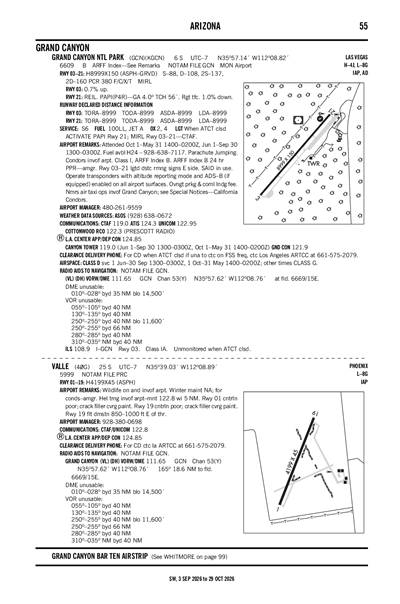

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGCN (18nm)
Mon, 12/23 4:20 AM MST
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Scattered 20,000'
Few 6,000'
6sm
Calm
VFR
11:00 AM MST - 6:00 PM MST
Scattered 20,000'
6sm
330° 6kts
VFR
6:00 PM MST - 5:00 AM MST
Few 20,000'
6sm
VRB° 3kts
KGCN 231120Z 2312/2412 00000KT P6SM FEW060 SCT200
   FM231800 33006KT P6SM SCT200
   FM240100 VRB03KT P6SM FEW200
40G
Domestic
12/19/241329Z !PRC 12/195 40G OBST TOWER LGT (ASN 2022-WTW-2773-OE) 354318N1115310W (13.4NM ENE 40G) 6938FT (400FT AGL) U/S 2412191329-2503042359
12/19/241328Z !PRC 12/194 40G OBST TOWER LGT (ASN 2022-WTW-2778-OE) 354303N1115308W (13.4NM ENE 40G) 6922FT (400FT AGL) U/S 2412191328-2503042359
No
Unknown
GRAND CANYON VALLE CORP
555 S. STATE RT. 64
VALLE, AZ 86046
Phone: 928-635-5280
NORM GOBEIL
555 S. STATE RT. 64
VALLE-WILLIAMS, AZ 86046
Phone: 928-635-5280
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
--
N/A
Yes
Yes
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway 01/19

4199 ft. x 45 ft.
ASPH
Good
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 21°201°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 35° 38' 43"N 35° 39' 21"N
Longitude 112° 09' 02"W 112° 08' 44"W
Elevation 5,998' 5,989'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-3WILDLIFE ON AND INVOF ARPT.
A110-5FOR CD CTC LA ARTCC AT 661-575-2079.
A110-7NOT MNTND IN WINTER; CALL AHEAD FOR RWY COND.
A110-8HEL TRNG INVOF ARPT - MNT 122.8 WI 5 NM.
VALLE (IATA: 40G) is a public airport located in GRAND CANYON, AZ.
