BRAXTON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

48I
BRAXTON COUNTY
PublicPUB

3 miles E of SUTTON, WV
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 41' 14"N 80° 39' 08"W
1276' MSL
2276' MSL
08W
JET A, 100LL
ELKINS (EKN)
CINCINNATI
INDIANAPOLIS (ZID)
11/28/24-12/26/24
K48I VFR
7:35 AM EST
Clear
10sm
18°F
14°F
30.43"Hg
Calm
AO2
K48I 231235Z AUTO 00000KT 10SM CLR M08/M10 A3043 RMK AO2

48I FBOs

Braxton County Airport
UNICOM: 122.9
Phone: (304) 853-2538
Other: (304) 765-0186
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/14
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.25 5.70
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3P

AWOS-3P
304-765-7805
118.225

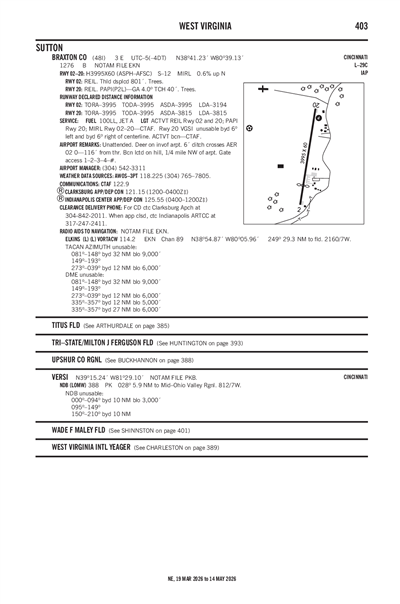

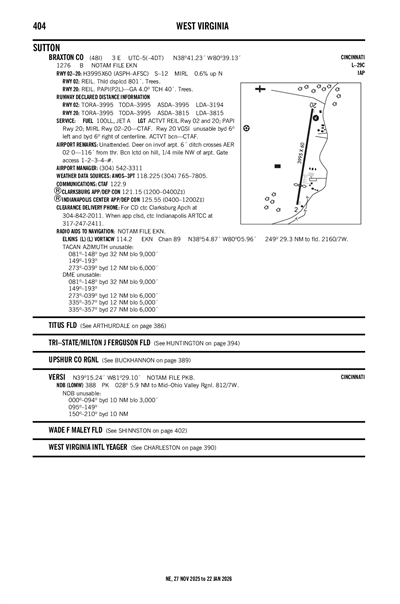

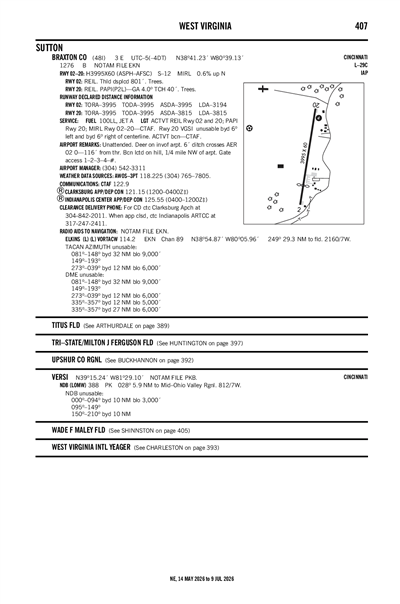

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEKN (39nm)
Mon, 12/23 6:20 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 1:00 PM EST
Few 25,000'
6sm
Calm
VFR
1:00 PM EST - 1:00 AM EST
Scattered 20,000'
6sm
190° 4kts
VFR
1:00 AM EST - 5:00 AM EST
Broken 15,000'
6sm
Calm
Shear 250° 35kts @ 2000'
MVFR
5:00 AM EST - 6:00 AM EST
Overcast 3,000'
6sm
VRB° 3kts
Shear 230° 35kts @ 2000'
IFR
6:00 AM EST - 7:00 AM EST
Light Snow and Mist
Overcast 2,000'
2sm
220° 4kts
KEKN 231120Z 2312/2412 00000KT P6SM FEW250
   FM231800 19004KT P6SM SCT200
   FM240600 00000KT P6SM BKN150 WS020/25035KT
   FM241000 VRB03KT P6SM OVC030 WS020/23035KT
   FM241100 22004KT 2SM -SN BR OVC020
48I
Domestic
12/23/240313Z !EKN 12/230 48I OBST TOWER LGT (ASR 1280100) 383003.80N0804524.40W (12.3NM SSW 48I) 1396.7FT (259.8FT AGL) U/S 2412230313-2504220313
12/22/241145Z !EKN 12/224 48I OBST TOWER LGT (ASR 1200883) 384343.10N0803950.70W (2.6NM NNW 48I) 1860.9FT (196.9FT AGL) U/S 2412221145-2503220500
12/19/241646Z !EKN 12/205 48I OBST TOWER LGT (ASR 1035792) 384454.00N0802147.00W (14.0NM ENE 48I) 2327.8FT (229.7FT AGL) U/S 2412191646-2501021045
12/18/241632Z !EKN 12/189 48I OBST TOWER LGT (ASR 1320016) 390139.60N0805433.20W (23.73NM NNW 48I) 1439FT (324FT AGL) U/S 2412181632-2501182359
12/17/241516Z !EKN 12/183 48I OBST TOWER LGT (ASR 1274612) 385424.90N0804949.40W (15.5NM NNW 48I) 1816.9FT (419.9FT AGL) U/S 2412171516-2502282359
12/11/240735Z !EKN 12/120 48I OBST TOWER LGT (ASR 1275812) 383936.00N0804329.70W (3.8NM WSW 48I) 1709.0FT (275.9FT AGL) U/S 2412110735-2412260635
12/4/242010Z !EKN 12/029 48I OBST TOWER LGT (ASR 1050877) 385044.00N0804733.00W (11.5NM NW 48I) 1600.1FT (200.1FT AGL) U/S 2412042010-2501182009
11/25/241957Z !EKN 11/160 48I OBST TOWER LGT (ASR 1242027) 383909.40N0804452.20W (5.0NM WSW 48I) 1619.8FT (315.0FT AGL) U/S 2411251957-2412312359
10/31/242236Z !EKN 10/236 48I SVC AUTOMATED WX BCST SYSTEM CEILING UNREL 2410312236-2503152359
FDC
6/14/231521Z !FDC 3/0497 48I PART 1 OF 4 ODP BRAXTON COUNTY, SUTTON, WV.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF OBSTACLE NOTES: RWY 2: TREE, FENCE BEGINNING 22 FT FROM
DER, 248 FT
LEFT OF CENTERLINE, UP TO 1351 FT MSL. TREE, TERRAIN BEGINNING 56
FT FROM DER, 239 FT RIGHT OF
CENTERLINE, UP TO 1352 FT MSL. TREES, FENCE, TRAVERSE WAYS, POLE
BEGINNING 90 FT FROM DER, 90 FT
RIGHT OF CENTERLINE, UP TO 1402 FT MSL. TREE 94 FT FROM DER, 451 FT
LEFT OF CENTERLINE, 1416 FT MSL.
TREES, FENCES, TRAVERSE WAYS, TERRAINS BEGINNING 138 FT FROM DER,
48 FT LEFT OF CENTERLINE, UP TO
1417 FT MSL. TREES, TERRAINS BEGINNING 775 FT FROM DER, 259 FT
RIGHT OF CENTERLINE, UP TO 1409 FT
MSL. TREE 913 FT FROM DER, 650 FT LEFT OF CENTERLINE, 1421 FT MSL.
TREES BEGINNING 1000 FT FROM DER,
425 FT LEFT OF CENTERLINE, UP TO 1426 FT MSL. TREE 1083 FT FROM
DER, 533 FT LEFT OF CENTERLINE, 1433
FT MSL. TREE 1084 FT FROM DER, 336 FT LEFT OF CENTERLINE, 1434 FT
MSL. TREES BEGINNING 1107 FT FROM
DER, 234 FT LEFT OF CENTERLINE, UP TO 1435 FT MSL. TREES BEGINNING
FT LEFT OF CENTERLINE, UP TO 1529 FT MSL. 2306141521-2506141521EST
END PART 1 OF 4
!FDC 3/0497 48I PART 2 OF 4 ODP BRAXTON COUNTY, SUTTON, WV.
1141 FT FROM DER, 440 FT LEFT OF
CENTERLINE, UP TO 1438 FT MSL. TREE 1199 FT FROM DER, 540 FT LEFT
OF CENTERLINE, 1441 FT MSL. TREES,
POLES, BUILDING BEGINNING 1201 FT FROM DER, 9 FT LEFT OF
CENTERLINE, UP TO 1445 FT MSL. TREES
BEGINNING 1288 FT FROM DER, 11 FT RIGHT OF CENTERLINE, UP TO 1435
FT MSL. TREES, POLE BEGINNING 4237
FT FROM DER, 498 FT LEFT OF CENTERLINE, UP TO 1471 FT MSL. TREES
BEGINNING 4341 FT FROM DER, 623 FT
LEFT OF CENTERLINE, UP TO 1475 FT MSL. TREES, TERRAIN BEGINNING
4508 FT FROM DER, 409 FT LEFT OF
CENTERLINE, UP TO 1484 FT MSL. RWY 20: TREES BEGINNING 26 FT FROM
DER, 311 FT RIGHT OF CENTERLINE,
UP TO 1312 FT MSL. TERRAIN 71 FT FROM DER, 363 FT LEFT OF
CENTERLINE, 1297 FT MSL. TREES BEGINNING 90
FT FROM DER, 263 FT LEFT OF CENTERLINE, UP TO 1432 FT MSL. TREES,
FENCE, TRAVERSE WAY, POLE
BEGINNING 187 FT FROM DER, 14 FT LEFT OF CENTERLINE, UP TO 1435 FT
MSL. TREE 215 FT FROM DER, 349 FT
RIGHT OF CENTERLINE, 1328 FT MSL. TREES BEGINNING 269 FT FROM DER,
FT LEFT OF CENTERLINE, UP TO 1529 FT MSL. 2306141521-2506141521EST
END PART 2 OF 4
!FDC 3/0497 48I PART 3 OF 4 ODP BRAXTON COUNTY, SUTTON, WV.
ON AND RIGHT OF CENTERLINE, UP
TO 1338 FT MSL. TREE 622 FT FROM DER, 396 FT RIGHT OF CENTERLINE,
1344 FT MSL. TREE 629 FT FROM DER,
667 FT RIGHT OF CENTERLINE, 1370 FT MSL. TREES BEGINNING 634 FT
FROM DER, 17 FT RIGHT OF CENTERLINE,
UP TO 1376 FT MSL. TREE 1773 FT FROM DER, 975 FT RIGHT OF
CENTERLINE, 1385 FT MSL. TREES BEGINNING
1798 FT FROM DER, 179 FT RIGHT OF CENTERLINE, UP TO 1401 FT MSL.
TREES BEGINNING 1869 FT FROM DER,
460 FT RIGHT OF CENTERLINE, UP TO 1406 FT MSL. TREES BEGINNING 1947
FT FROM DER, 230 FT RIGHT OF
CENTERLINE, UP TO 1434 FT MSL. TREES BEGINNING 1992 FT FROM DER,
225 FT RIGHT OF CENTERLINE, UP TO
1447 FT MSL. TREES BEGINNING 2170 FT FROM DER, 224 FT RIGHT OF
CENTERLINE, UP TO 1464 FT MSL. TREES
BEGINNING 2196 FT FROM DER, 29 FT LEFT OF CENTERLINE, UP TO 1440 FT
MSL. TREES BEGINNING 2303 FT
FROM DER, 44 FT RIGHT OF CENTERLINE, UP TO 1485 FT MSL. TREES
BEGINNING 3095 FT FROM DER, 118 FT
RIGHT OF CENTERLINE, UP TO 1499 FT MSL. TREES BEGINNING 3155 FT
FT LEFT OF CENTERLINE, UP TO 1529 FT MSL. 2306141521-2506141521EST
END PART 3 OF 4
!FDC 3/0497 48I PART 4 OF 4 ODP BRAXTON COUNTY, SUTTON, WV.
FROM DER, 332 FT RIGHT OF
CENTERLINE, UP TO 1513 FT MSL. TREES BEGINNING 3196 FT FROM DER, 3
FT RIGHT OF CENTERLINE, UP TO
1515 FT MSL. TREES BEGINNING 4415 FT FROM DER, 907 FT LEFT OF
CENTERLINE, UP TO 1442 FT MSL. TREES
BEGINNING 4443 FT FROM DER, 797 FT LEFT OF CENTERLINE, UP TO 1461
FT MSL. TREES BEGINNING 4520 FT
FROM DER, 986 FT LEFT OF CENTERLINE, UP TO 1477 FT MSL. TREES
BEGINNING 4546 FT FROM DER, 522 FT
LEFT OF CENTERLINE, UP TO 1482 FT MSL. TREES BEGINNING 4638 FT FROM
DER, 431 FT LEFT OF CENTERLINE,
UP TO 1495 FT MSL. TREES BEGINNING 4958 FT FROM DER, 597 FT LEFT OF
CENTERLINE, UP TO 1507 FT MSL.
TREES BEGINNING 5041 FT FROM DER, 500 FT LEFT OF CENTERLINE, UP TO
1508 FT MSL. TREES BEGINNING
5067 FT FROM DER, 311 FT LEFT OF CENTERLINE, UP TO 1528 FT MSL.
TREES BEGINNING 5574 FT FROM DER, 98
FT LEFT OF CENTERLINE, UP TO 1529 FT MSL. 2306141521-2506141521EST
END PART 4 OF 4
No
UNATNDD
CO CMSN OF BRAXTON
BOX 486
SUTTON, WV 26601
Phone: 304-765-2835
PATRICK O'MALLEY
106 BIRCH ST
GASAWAY, WV 26624-1102
Phone: (304) 542-3311
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
EKN
--
ACTVT REIL RWY 02 & 20; PAPI RWY 20; MIRL RWY 02/20 - CTAF.
ACTVT BEACON - CTAF.
N/A
BCN LCTD ON HILL, 1/4 MILE NW OF ARPT.
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 02/20

3995 ft. x 60 ft.
ASPH
Good
AFSC
MED

12,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 188°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 38° 40' 54"N 38° 41' 33"N
Longitude 80° 39' 11"W 80° 39' 04"W
Elevation 1,252' 1,276'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle --
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-16 FT DITCH CROSSES AER 02 0-116 FT FROM THR.
A110-4GATE ACCESS 1-2-3-4-#.
A110-6FOR CD CTC CLARKSBURG APCH AT 304-842-2011. WHEN APP CLSD, CTC INDIANAPOLIS ARTCC AT 317-247-2411.
A110-7DEER ON AND INVOF ARPT.
BRAXTON COUNTY (IATA: 48I) is a public airport located in SUTTON, WV.
