4D0
ABRAMS MUNI
PublicPUB

2 miles N of GRAND LEDGE, MI
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 46' 30"N 84° 43' 59"W
841' MSL
1841' MSL
05W
100LL
LANSING (LAN)
DETROIT
CLEVELAND (ZOB)
11/28/24-12/26/24
KLAN (6nm) VFR
6:53 AM EST
Broken 12,000'
10sm
28°F
18°F
30.21"Hg
160° 11kts
AO2 SLP241 T10221078 11022 21039 56022 $
KLAN 231153Z 16011KT 10SM BKN120 M02/M08 A3021 RMK AO2 SLP241 T10221078 11022 21039 56022 $

4D0 FBOs

GrandAir Aviation
UNICOM: 122.7
Phone: (517) 627-9557
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/17
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.95
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

No communication frequencies available for this airport.

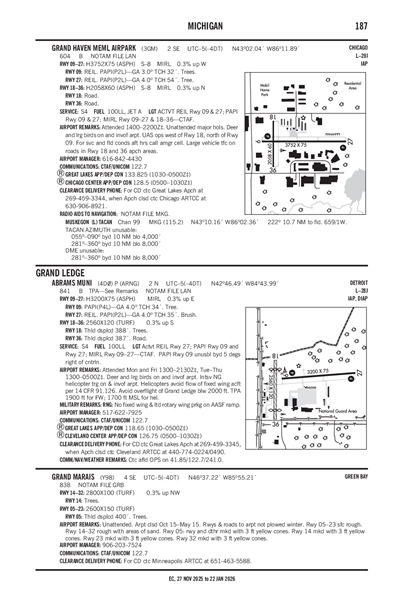

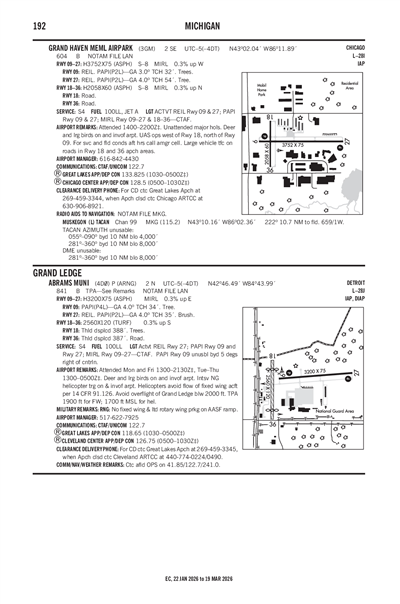

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLAN (6nm)
Mon, 12/23 6:20 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 10:00 AM EST
Scattered 10,000'
6sm
160° 8kts
VFR
10:00 AM EST - 2:00 PM EST
Light Snow and Ice Pellets
Overcast 6,000'
6sm
180° 14kts
Shear 210° 40kts @ 2000'
MVFR
2:00 PM EST - 5:00 PM EST
Light Snow and Ice Pellets
Overcast 2,500'
4sm
190° 12kts
IFR
5:00 PM EST - 12:00 AM EST
Light Snow and Mist
Overcast 800'
1.5sm
200° 10kts
IFR
12:00 AM EST - 7:00 AM EST
Mist
Overcast 500'
4sm
VRB° 4kts
KLAN 231120Z 2312/2412 16008KT P6SM SCT100
   FM231500 18014KT 6SM -SNPL OVC060 WS020/21040KT
   FM231900 19012KT 4SM -SNPL OVC025
   FM232200 20010KT 1 1/2SM -SN BR OVC008
   FM240500 VRB04KT 4SM BR OVC005
4D0
Domestic
9/25/241614Z !LAN 09/440 4D0 OBST TOWER LGT (ASR 1221310) 424551.60N0843959.00W (3.0NM ESE 4D0) 1070.2FT (247.0FT AGL) U/S 2409251614-2412250400
9/11/241708Z !LAN 09/233 4D0 RWY 09 PAPI U/S 2409111708-2412312359
8/2/241515Z !LAN 08/041 4D0 AD AP DEER ACT INCREASED NE AND SE SIDE 2408021515-2412312359
12/22/231904Z !LAN 12/273 4D0 RWY 18/36 CLSD 2312221904-2412312359
FDC
10/22/241639Z !FDC 4/2196 4D0 ODP ABRAMS MUNI, GRAND LEDGE, MI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
ADD TAKEOFF OBSTACLE NOTES: RWY 9, TEMPORARY CONSTRUCTION EQUIPMENT 31FT FROM DER, 335FT RIGHT OF CENTERLINE, 15FT AGL/857FT MSL (2023-AGL-10993-NRA). RWY 27, TEMPORARY CONSTRUCTION EQUIPMENT BEGINNING 81FT FROM DER, 212FT LEFT OF CENTERLINE, 15FT AGL/846FT MSL (2023-AGL-10984/10986/10993/10996/10997-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2410221639-2503301639EST
1/6/231523Z !FDC 3/1743 4D0 ODP ABRAMS MUNI, GRAND LEDGE, MI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
IN ADDITION TO PUBLISHED TAKEOFF OBSTACLE NOTES, ADD THE FOLLOWING: RWY 9: LIGHT POLE 30 FT FROM DER, 80 FT LEFT OF CENTERLINE, 3 FT AGL/842 FT MSL.
LIGHT POLE 30 FT FROM DER, 79 FT RIGHT OF CENTERLINE, 3 FT AGL/842 FT MSL.
TERRAIN 61 FT FROM DER, 226 FT RIGHT OF CENTERLINE, 844 FT MSL.
TERRAIN 67 FT FROM DER, 336 FT RIGHT OF CENTERLINE, 846 FT MSL.
TREE, TERRAIN BEGINNING 73 FT FROM DER, 242 FT RIGHT OF CENTERLINE, UP TO 856 FT MSL. TREES BEGINNING 3796 FT FROM DER, 125 FT LEFT OF CENTERLINE, UP TO 958 FT MSL. RWY 27: TREES BEGINNING 3602 FT FROM DER, 1113 FT RIGHT OF CENTERLINE, UP TO 938 FT MSL. 2301061523-2501061523EST
No
MON&FRI 0800-1630
TUE-THU 0800-0000
CITY OF GRAND LEDGE
310 GREENWOOD ST
GRAND LEDGE, MI 48837-1651
Phone: 517-627-2149
AMEE KING, ASST CITY MGR
310 GREENWOOD ST
GRAND LEDGE, MI 48837-1651
Phone: 517-622-7925
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT REIL RWY 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 09/27

3200 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 86°266°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 46' 31"N 42° 46' 33"N
Longitude 84° 44' 09"W 84° 43' 27"W
Elevation 830' 840'
Threshold Crossing Height 34 ft. AGL 35 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 18/36

2560 ft. x 120 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 46' 39"N 42° 46' 14"N
Longitude 84° 44' 13"W 84° 44' 13"W
Elevation 828' 837'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11MILITARY: RNG: NO FIXED WING & LTD ROTARY WING PRKG ON AASF RAMP.
A110-12CTC AIRFIELD OPS ON 41.85/122.7/241.0.
A110-13FOR CD CTC GREAT LAKES APCH AT 269-459-3345, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A110-14TPA 1900 FT MSL FOR FW; 1700 FT MSL FOR HEL.
A110-15DEER & LRG BIRDS ON & INVOF ARPT.
A110-2INTSV NG HELICOPTER TRG ON & INVOF ARPT. HELICOPTERS AVOID FLOW OF FIXED WING ACFT PER 14 CFR 91.126.
A110-9AVOID OVERFLIGHT OF GRAND LEDGE BLW 2000 FT.
ABRAMS MUNI (IATA: 4D0) is a public airport located in GRAND LEDGE, MI.
