4D9
ALMA MUNI
PublicPUB

1 miles NE of ALMA, NE
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 06' 45"N 99° 20' 47"W
2073' MSL
3073' MSL
05E
100LL
COLUMBUS (OLU)
OMAHA
DENVER (ZDV)
11/28/24-12/26/24
KHDE (20nm) VFR
5:55 AM CST
Scattered 12,000'
10sm
38°F
29°F
30.05"Hg
340° 6kts
AO2 T00331015 10057 20013
KHDE 231155Z AUTO 34006KT 10SM SCT120 03/M01 A3005 RMK AO2 T00331015 10057 20013

4D9 FBOs

Alma Municipal Airport
Phone: (308) 928-2242
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/7
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.25
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

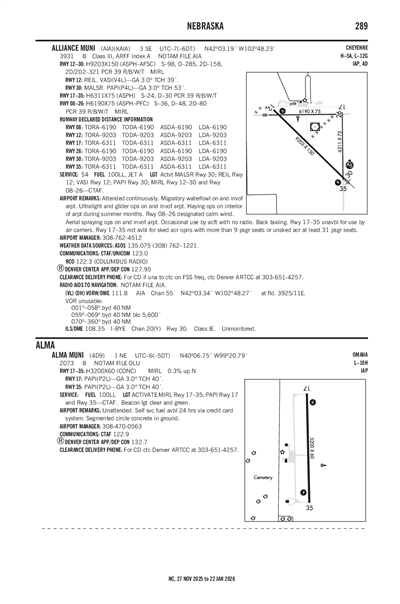

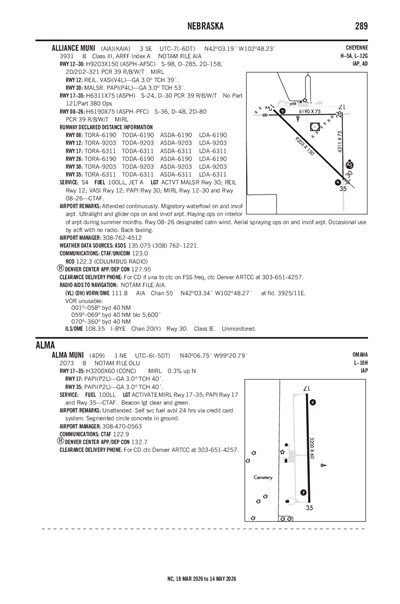

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEAR (40nm)
Mon, 12/23 5:36 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 1:00 PM CST
Broken 10,000'
6sm
340° 6kts
VFR
1:00 PM CST - 3:00 PM CST
Scattered 15,000'
6sm
VRB° 5kts
VFR
3:00 PM CST - 2:00 AM CST
Few 25,000'
6sm
VRB° 4kts
VFR
2:00 AM CST - 5:00 AM CST
Mist
Few 25,000'
6sm
160° 5kts
MVFR
5:00 AM CST - 6:00 AM CST
Mist
Scattered 400'
5sm
170° 5kts
KEAR 231136Z 2312/2412 34006KT P6SM BKN100
   FM231900 VRB05KT P6SM SCT150
   FM232100 VRB04KT P6SM FEW250
   FM240800 16005KT 6SM BR FEW250
   FM241100 17005KT 5SM BR SCT004
4D9
Domestic
10/30/240454Z !OLU 10/120 4D9 OBST TOWER LGT (ASR 1031256) 400703.00N0991736.30W (2.5NM E 4D9) 2373.0FT (288.1FT AGL) U/S 2410300454-2412292359
FDC
4/23/241710Z !FDC 4/4166 4D9 PART 1 OF 2 ODP ALMA MUNI, ALMA, NE.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF OBSTACLE NOTES: RWY 17, LIGHT POLE 9 FT FROM DER, 10 FT
LEFT OF CENTERLINE, 2 FT AGL/2064 FT MSL.
LIGHT POLES 10 FT FROM DER, 10 FT RIGHT OF CENTERLINE, 2 FT
AGL/2064 FT MSL.
TREE 417 FT FROM DER, 489 FT RIGHT OF CENTERLINE, 34 FT AGL/2085 FT
MSL.
TREES BEGINNING 435 FT FROM DER, 459 FT RIGHT OF CENTERLINE, UP TO
37 FT AGL/2088 FT MSL.
POLES BEGINNING 734 FT FROM DER, 318 FT RIGHT OF CENTERLINE, UP TO
42 FT AGL/2089 FT MSL.
RWY 35, TRAVERSE WAY 50 FT FROM DER, 163 FT RIGHT OF CENTERLINE,
2081 FT MSL.
TERRAIN 58 FT FROM DER, 403 FT LEFT OF CENTERLINE, 2078 FT MSL.
TERRAIN 128 FT FROM DER, 476 FT LEFT OF CENTERLINE, 2079 FT MSL.
TRAVERSE WAY 162 FT FROM DER, 164 FT RIGHT OF CENTERLINE, 2082 FT
MSL.
TRAVERSE WAY 413 FT FROM DER, 598 FT LEFT OF CENTERLINE, 2095 FT
MSL.
POLE, TRAVERSE WAYS BEGINNING 523 FT FROM DER, 249 FT LEFT OF
2404231710-2604231710EST
END PART 1 OF 2
!FDC 4/4166 4D9 PART 2 OF 2 ODP ALMA MUNI, ALMA, NE.
CENTERLINE, UP TO 2104 FT MSL.
POLES, TRAVERSE WAY, AGRICULTURAL EQUIPMENT BEGINNING 612 FT FROM
DER, 458 FT LEFT OF CENTERLINE, UP TO 34 FT AGL/2114 FT MSL.
TREES, POLES BEGINNING 855 FT FROM DER, 546 FT LEFT OF CENTERLINE,
UP TO 2119 FT MSL. ALL OTHER DATA REMAINS AS PUBLISHED.
2404231710-2604231710EST
END PART 2 OF 2
No
UNATNDD
CITY OF ALMA
PO BOX 468
ALMA, NE 68920-0468
Phone: 308-928-2242
RON HAWLEY
12359 707 ROAD, PO BOX 468
NAPONEE, NE 68910-9608
Phone: 308-470-0563
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
OLU
--
ACTVT MIRL RY 17/35 & PAPI RY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 17/35

3200 ft. x 60 ft.
CONC
Excellent
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 07' 01"N 40° 06' 29"N
Longitude 99° 20' 48"W 99° 20' 47"W
Elevation 2,073' 2,062'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1UNMARKED, UNLIGHTED TOWER 6NM NW OF ARPT @ 2458 MSL.
A110-2UNMARKED, UNLIGHTED TOWER 6NM NW OF ARPT @ 2458 MSL.
A110-3SEGMENTED CIRCLE CONCRETE IN GRND.
A110-4FOR CD CTC DENVER ARTCC AT 303-651-4257.
ALMA MUNI (IATA: 4D9) is a public airport located in ALMA, NE.
