iFlightPlanner



...
COLUMBIA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4G8
COLUMBIA
PublicPUB

1 miles NW of COLUMBIA STATION, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 19' 07"N 81° 57' 38"W
811' MSL
1811' MSL
06W
None Listed
CLEVELAND (CLE)
DETROIT
CLEVELAND (ZOB)
11/28/24-12/26/24
KCLE (7nm) VFR
6:51 AM EST
Broken 25,000'
Broken 12,000'
10sm
24°F
13°F
30.34"Hg
160° 8kts
AO2 SLP304 T10441106 11044 21067 58012 $
KCLE 231151Z 16008KT 10SM BKN120 BKN250 M04/M11 A3034 RMK AO2 SLP304 T10441106 11044 21067 58012 $
Add Your Business

4G8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

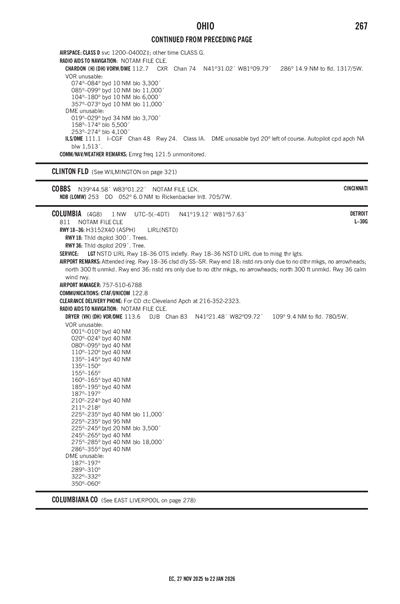

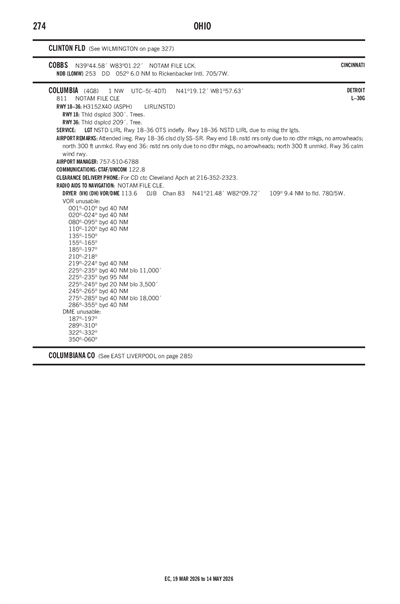

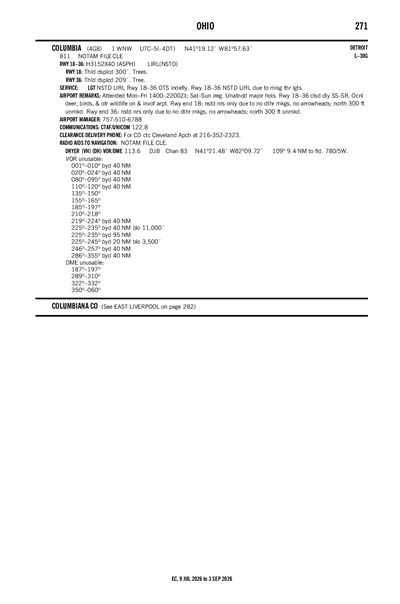

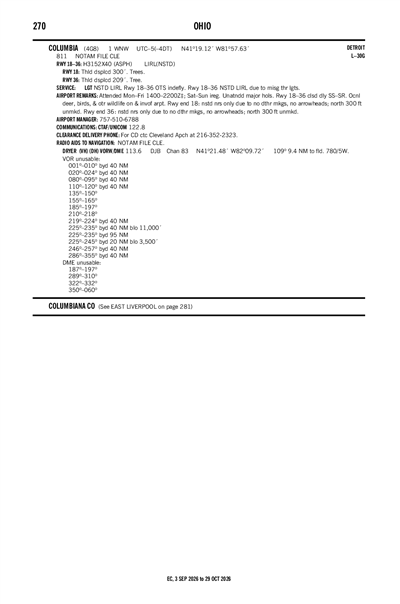

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KCLE (7nm)
Mon, 12/23 6:39 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 1:00 PM EST
VFR
7:00 AM EST - 11:00 AM EST
Overcast 11,000'
6sm
170° 10kts
VFR
11:00 AM EST - 6:00 PM EST
Overcast 11,000'
6sm
180° 14kts
Gusts 22kts
VFR
6:00 PM EST - 9:00 PM EST
Light Rain
Overcast 5,000'
6sm
190° 12kts
Gusts 20kts
MVFR
9:00 PM EST - 2:00 AM EST
Light Rain and Snow
Overcast 1,500'
4sm
220° 14kts
Gusts 22kts
MVFR
2:00 AM EST - 6:00 AM EST
Overcast 1,000'
6sm
230° 10kts
MVFR
6:00 AM EST - 1:00 PM EST
Overcast 1,000'
6sm
280° 8kts
KCLE 231139Z 2312/2418 17010KT P6SM OVC110
   FM231600 18014G22KT P6SM OVC110
   FM232300 19012G20KT P6SM -RA OVC050
   FM240200 22014G22KT 4SM -RASN OVC015
   FM240700 23010KT P6SM OVC010
   FM241100 28008KT P6SM OVC010
4G8
Domestic
12/21/240913Z !CLE 12/782 4G8 OBST TOWER LGT (ASR 1019675) 411636.20N0815002.50W (6.2NM ESE 4G8) 1443.9FT (299.9FT AGL) U/S 2412210913-2504200913
7/9/241328Z !CLE 07/250 4G8 OBST TOWER LGT (ASR 1233971) 411615.30N0815025.60W (6.1NM ESE 4G8) 1418.3FT (253.0FT AGL) U/S 2407091328-2507092359
No
IREG
COLUMBIA ENTERPRISES, INC
27410 ROYALTON RD
COLUMBIA STATION, OH 44028-9159
Phone: 440-236-8800
DAVID SAVILLE
PO BOX 599
COLUMBIA STATION, OH 44028-0599
Phone: 757-510-6788
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
NSTD LIRL RWY 18/36 OTS INDEFLY.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 18/36

3152 ft. x 40 ft.
ASPH
Fair
NONE
NSTD

--
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude 41° 19' 23"N 41° 18' 52"N
Longitude 81° 57' 37"W 81° 57' 38"W
Elevation 810' 810'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC CLEVELAND APCH AT 216-352-2323.
COLUMBIA (IATA: 4G8) is a public airport located in COLUMBIA STATION, OH.
