JACKSON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4R3
JACKSON MUNI
PublicPUB

2 miles S of JACKSON, AL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 28' 14"N 87° 53' 45"W
62' MSL
1062' MSL
02W
100LL
ANNISTON (ANB)
NEW ORLEANS
HOUSTON (ZHU)
11/28/24-12/26/24
K1R8 (36nm) VFR
5:55 AM CST
Scattered 4,900'
Scattered 3,900'
Scattered 3,100'
10sm
37°F
30°F
30.35"Hg
090° 5kts
Gusts 10kts
AO2
K1R8 231155Z AUTO 09005G10KT 10SM SCT031 SCT039 SCT049 03/M01 A3035 RMK AO2

4R3 FBOs

Jackson Municipal Airport
Phone: (251) 246-2461
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/13
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.55
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

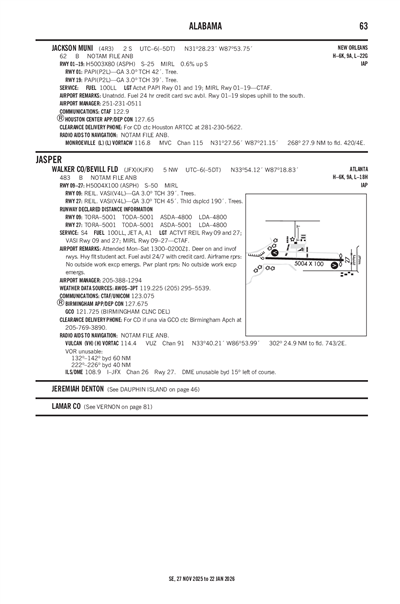

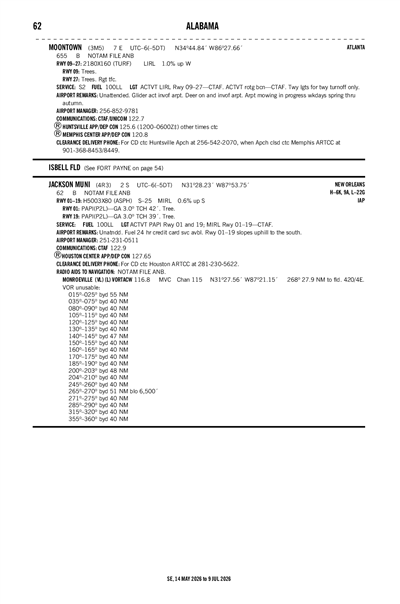

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMOB (50nm)
Mon, 12/23 5:20 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Sky Clear
6sm
VRB° 3kts
VFR
10:00 AM CST - 6:00 AM CST
Sky Clear
6sm
080° 7kts
KMOB 231120Z 2312/2412 VRB03KT P6SM SKC
   FM231600 08007KT P6SM SKC
4R3
Domestic
12/10/242013Z !ANB 12/215 4R3 OBST TOWER LGT (ASN 2019-ASO-3582-OE) 314419N0875610W (16.1NM N 4R3) 597FT (320FT AGL) U/S 2412102013-2501242012
12/7/240550Z !ANB 12/130 4R3 OBST TOWER LGT (ASN 2020-ASO-7447-OE) 312812N0880220W (7.4NM W 4R3) 382FT (330FT AGL) U/S 2412070550-2501210549
11/28/241618Z !ANB 11/733 4R3 OBST TOWER LGT (ASR 1308431) 313657.38N0880150.55W (11.0NM NW 4R3) 602FT (420FT AGL) U/S 2411281618-2501012300
FDC
10/15/241744Z !FDC 4/9334 4R3 IAP JACKSON MUNI, JACKSON, AL.
RNAV (GPS) RWY 19, ORIG-A...
CHART PROFILE NOTE: VISUAL SEGMENT OBSTACLES. DELETE PROFILE
NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 3.00/TCH
39). DELETE ADDITIONAL FLIGHT DATA - PROCEDURE NOTE: ITCIB 3.5 NM
TO RW19: 3.35/39. DELETE NOTE: DME/DME RNP-0.3. PBN REQUIREMENTS
NOTE: RNP APCH-GPS. CHANGE NOTE TO READ: RWY 19 HELICOPTER
VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. CHANGE NOTE TO
READ: OBTAIN LOCAL ALTIMETER SETTING ON CTAF, WHEN NOT RECEIVED,
USE MOB ALTIMETER SETTING AND INCREASE ALL MDA'S 20 FEET. 20:1 IS
NOT CLEAR. 34:1 IS NOT CLEAR.
THIS IS RNAV (GPS) RWY 19, ORIG-B. 2410151744-PERM
No
UNATNDD
CITY OF JACKSON
PO BOX 1096
JACKSON, AL 36545
Phone: 251-246-2461
KEVIN WOODSON
PO BOX 1096
JACKSON, AL 36546
Phone: 251-231-0511
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 01/19

5003 ft. x 80 ft.
ASPH
Excellent
NONE
MED

25,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 189°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 27' 50"N 31° 28' 38"N
Longitude 87° 53' 50"W 87° 53' 41"W
Elevation 62' 34'
Threshold Crossing Height 42 ft. AGL 39 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 01/19 SLPS UPHILL TO THE SOUTH.
A110-2FOR CD CTC HOUSTON ARTCC AT 281-230-5622.
JACKSON MUNI (IATA: 4R3) is a public airport located in JACKSON, AL.
