5J9
TWIN CITY
Public
PUB
3 miles NE of LORIS, SC
View on
Map
Status
Operational
Coordinates
34° 05' 18"N
78° 51' 54"W
Elevation
99' MSL
Pattern Alt
1099' MSL
Mag Variation
08W
Fuel
None Listed
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
11/28/24-12/26/24
KCPC (14nm)
VFR
7:30 AM EST
RAW
Clear
Viz
10sm
Temp
26°F
Dew
20°F
Pres
30.57"Hg
Wind
Calm
RMK
AO2 T10311067
KCPC 231230Z AUTO 00000KT 10SM CLR M03/M07 A3057 RMK AO2 T10311067
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
5J9 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

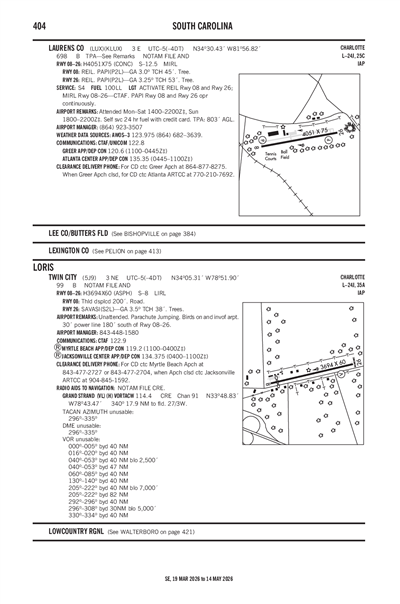

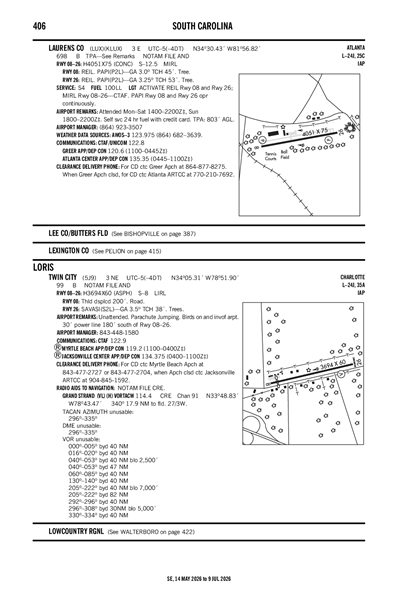

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
GPS RWY 26
Terminal Area Forecast
KCRE (18nm)
RAW
Reported
Mon, 12/23 6:20 AM EST
Valid
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 4:00 PM EST
Sky Clear
Viz
6sm
Wind
050° 8kts
VFR
4:00 PM EST - 4:00 AM EST
Overcast 5,000'
Viz
6sm
Wind
030° 5kts
MVFR
4:00 AM EST - 5:00 AM EST
Overcast 2,500'
Viz
6sm
Wind
020° 7kts
MVFR
5:00 AM EST - 7:00 AM EST
Light Rain
Overcast 1,500'
Viz
6sm
Wind
010° 7kts
KCRE 231120Z 2312/2412 05008KT P6SM SKC
FM232100 03005KT P6SM OVC050
FM240900 02007KT P6SM OVC025
FM241000 01007KT P6SM -RA OVC015
5J9
Domestic
12/18/24
1404Z
!AND 12/231 5J9 OBST TOWER LGT (ASR 1205392) 340509.00N0790417.00W (10.3NM W 5J9) 549.2FT (470.1FT AGL) U/S 2412181404-2501182359
FDC
12/1/23
1524Z
!FDC 3/9628 5J9 IAP TWIN CITY, LORIS, SC.
GPS RWY 26, ORIG-A...
DISREGARD: VDA 3.33/TCH 34. VISUAL SEGMENT - OBSTACLES.
2312011524-2512011524EST
1/9/23
2041Z
!FDC 3/2423 5J9 IAP TWIN CITY, LORIS, SC.
GPS RWY 26, ORIG-A...
PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 3.50/ TCH 38).
2301092041-2501092041EST
ATC Tower
No
Attendance
UNATNDD
Owner
HORRY COUNTY
PO BOX 1236
CONWAY, SC 29526
Phone: 843-448-1580
Manager
JUDI OLMSTEAD
1100 JETPORT RD
MYRTLE BEACH, SC 29577
Phone: 843-448-1580
FSS
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
NOTAM
AND
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 08/26
Dimensions
3694 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
LOW
Pavement Class
Single Wheel
8,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 08
Runway 26
True Heading
74°
254°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
34° 05' 13"N
34° 05' 23"N
Longitude
78° 52' 15"W
78° 51' 33"W
Elevation
99'
99'
Threshold Crossing Height
--
38 ft. AGL
Visual Glide Path Angle
--
3.5°
Visual Slope Indicator
--
S2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
30 FT POWER LINE 180 FT SOUTH OF RWY 8-26.
A110-2
BIRDS ON AND INVOF ARPT.
A110-3
FOR CD CTC MYRTLE BEACH APCH AT 843-477-2727 OR 843-477-2704, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
TWIN CITY (IATA: 5J9) is a public airport located in LORIS, SC.
