5L0
LAKOTA MUNI
Public
PUB
1 miles SE of LAKOTA, ND
View on
Map
Status
Operational
Coordinates
48° 01' 44"N
98° 19' 33"W
Elevation
1511' MSL
Pattern Alt
2511' MSL
Mag Variation
04E
Fuel
100LL
FSS
GRAND FORKS (GFK)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
11/28/24-12/26/24
KDVL (24nm)
LIFR
5:56 AM CST
RAW
Freezing Fog
Overcast 200'
Viz
0.5sm
Temp
13°F
Dew
10°F
Pres
30.09"Hg
Wind
VRB° 3kts
RMK
AO2 SLP230 60000 T11061122 11100 21106 51010 FZRANO
KDVL 231156Z AUTO VRB03KT 1/2SM FZFG OVC002 M11/M12 A3009 RMK AO2 SLP230 60000 T11061122 11100 21106 51010 FZRANO
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
5L0 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
No communication frequencies available for this airport.

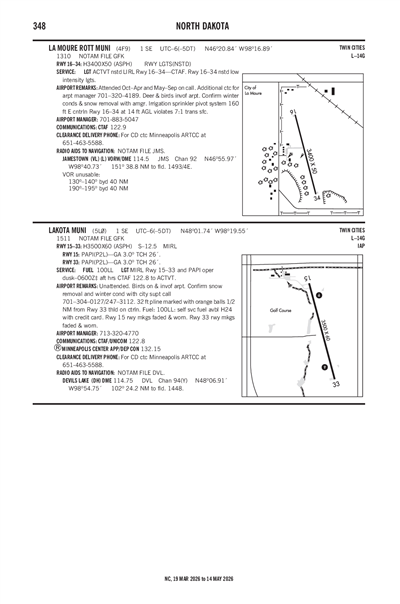

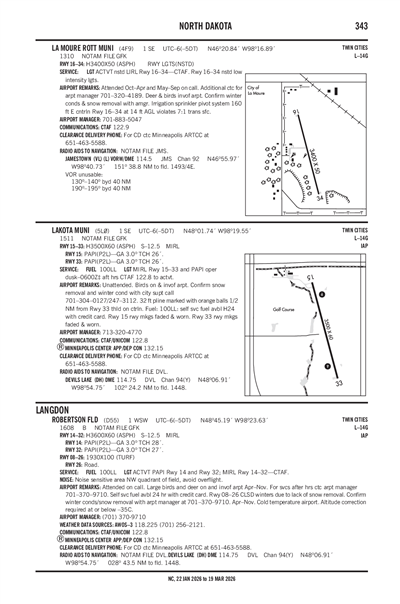

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 33
Terminal Area Forecast
KDVL (24nm)
RAW
Reported
Mon, 12/23 5:20 AM CST
Valid
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
LIFR
6:00 AM CST - 11:00 AM CST
Fog
Overcast 200'
Viz
0.5sm
Wind
350° 5kts
IFR
11:00 AM CST - 4:00 PM CST
Mist
Overcast 500'
Viz
1sm
Wind
Calm
MVFR
4:00 PM CST - 9:00 PM CST
Overcast 1,500'
Viz
6sm
Wind
VRB° 4kts
IFR
9:00 PM CST - 5:00 AM CST
Broken 600'
Viz
6sm
Wind
160° 8kts
MVFR
5:00 AM CST - 6:00 AM CST
Mist
Broken 1,200'
Viz
6sm
Wind
180° 12kts
KDVL 231120Z 2312/2412 35005KT 1/2SM FG OVC002
FM231700 00000KT 1SM BR OVC005
FM232200 VRB04KT P6SM OVC015
FM240300 16008KT P6SM BKN006
FM241100 18012KT 6SM BR BKN012
5L0
Domestic
10/31/24
0112Z
!GFK 10/271 5L0 OBST TOWER LGT (ASR 1038758) 480818.00N0975936.00W (14.9NM ENE 5L0) 2982.6FT (1460.6FT AGL) U/S 2410310112-2502282359
ATC Tower
No
Attendance
UNATNDD
Owner
LAKOTA ARPT AUTHORITY
BOX 505
LAKOTA, ND 58344
Phone: (701) 247-2561
Manager
MATT NELSON
BOX 505
LAKOTA, ND 58344
Phone: 713-320-4770
FSS
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
NOTAM
GFK
Light Schedule
--
Lights
RY 15/33 MIRL AND PAPI OPER DUSK -0000 AFT HRS CTAF 122.8 TO ACTVT.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 15/33
Dimensions
3500 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 15
Runway 33
True Heading
165°
345°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
POOR
POOR
Latitude
48° 02' 01"N
48° 01' 27"N
Longitude
98° 19' 39"W
98° 19' 26"W
Elevation
1,511'
1,507'
Threshold Crossing Height
26 ft. AGL
26 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-1
CONFIRM SNOW REMOVAL & WINTER COND WITH CITY SUPT 701-304-0127/247-3112.
A110-6
32 FT PLINE MARKED WITH ORANGE BALLS 1/2 NM FROM RWY 33 THLD ON CTRLN.
A110-7
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-9
BIRDS ON & INVOF ARPT.
LAKOTA MUNI (IATA: 5L0) is a public airport located in LAKOTA, ND.
