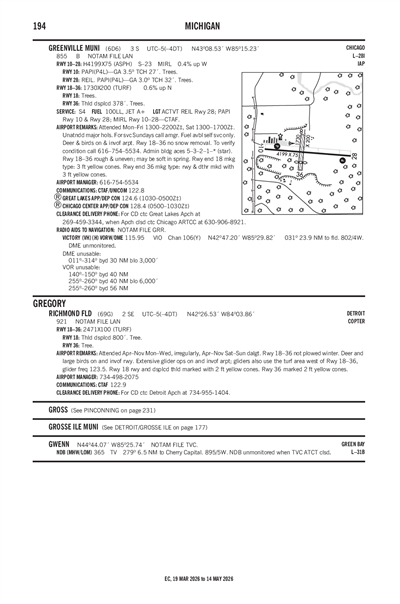

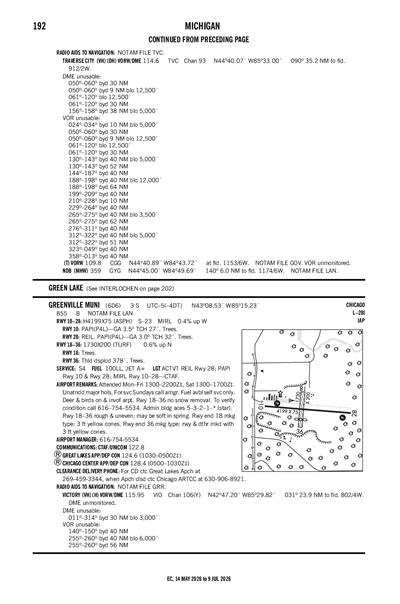

GREENVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

6D6
GREENVILLE MUNI
PublicPUB

3 miles S of GREENVILLE, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 08' 32"N 85° 15' 14"W
855' MSL
1855' MSL
05W
JET A (FSII), 100LL
LANSING (LAN)
CHICAGO
CHICAGO (ZAU)
11/28/24-12/26/24
KGRR (20nm) VFR
6:53 AM EST
Overcast 13,000'
Scattered 5,000'
10sm
29°F
20°F
30.15"Hg
160° 11kts
AO2 SLP221 4/001 T10171067 11017 21028 56026 $
KGRR 231153Z 16011KT 10SM SCT050 OVC130 M02/M07 A3015 RMK AO2 SLP221 4/001 T10171067 11017 21028 56026 $
Add Your Business

6D6 FBOs

Talon Aviation
UNICOM: 122.8
Phone: (616) 754-5534
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.50 4.50
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGRR (20nm)
Mon, 12/23 6:20 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 11:00 AM EST
Overcast 10,000'
6sm
170° 8kts
MVFR
11:00 AM EST - 4:00 PM EST
Light Snow and Mist
Overcast 2,800'
4sm
190° 13kts
IFR
4:00 PM EST - 6:00 PM EST
Light Ice Pellets and Mist
Overcast 2,500'
2sm
210° 13kts
IFR
6:00 PM EST - 8:00 PM EST
Light Snow and Ice Pellets and Mist
Overcast 800'
1.5sm
210° 11kts
IFR
8:00 PM EST - 7:00 AM EST
Mist
Overcast 500'
1sm
240° 5kts
KGRR 231120Z 2312/2412 17008KT P6SM OVC100
   FM231600 19013KT 4SM -SN BR OVC028
   FM232100 21013KT 2SM -PL BR OVC025
   FM232300 21011KT 1 1/2SM -SNPL BR OVC008
   FM240100 24005KT 1SM BR OVC005
6D6
Domestic
10/15/241810Z !LAN 10/229 6D6 OBST TOWER LGT (ASR 1201915) 431001.80N0851410.90W (1.7NM NNE 6D6) 1054.8FT (212.9FT AGL) U/S 2410151810-2501130400
12/28/231601Z !LAN 12/328 6D6 TWY T1 AND TWY B CLSD 2312281601-2412312359
No
MON-FRI 0800-1700
SAT 0800-1200
SUN ON CALL
UNATNDD MAJOR HOLS. FOR SVC SUNDAYS CALL AMGR.
CITY OF GREENVILLE
411 S LAFAYETTE ST
GREENVILLE, MI 48838-2899
Phone: 616-754-5645
PETER R JEPPESEN
10593 SW GREENVILLE RD
GREENVILLE, MI 48838-8743
Phone: 616-754-5534
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT REIL RWY 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 10/28

4199 ft. x 75 ft.
ASPH
Good
NONE
MED

23,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 95°275°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 08' 33"N 43° 08' 30"N
Longitude 85° 15' 41"W 85° 14' 44"W
Elevation 855' 836'
Threshold Crossing Height 27 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 18/36

1730 ft. x 200 ft.
TURF
Poor
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 185°5°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 08' 40"N 43° 08' 23"N
Longitude 85° 15' 16"W 85° 15' 18"W
Elevation 851' 840'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RWY 18/36 NO SNOW REMOVAL.
A110-3DEER & BIRDS ON & INVOF ARPT.
A110-4ADMIN BLDG ACES 5-3-2-1-*(STAR).
A110-5FOR CD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
GREENVILLE MUNI (IATA: 6D6) is a public airport located in GREENVILLE, MI.
