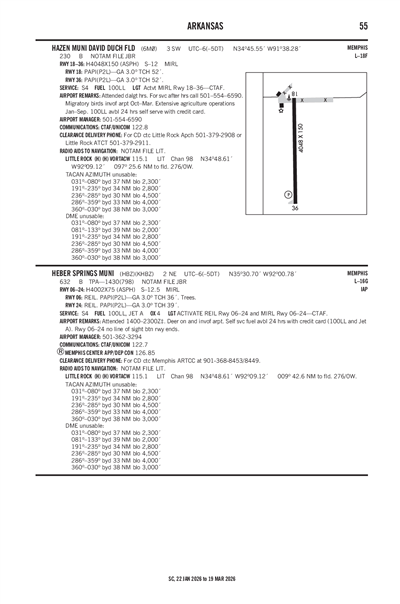

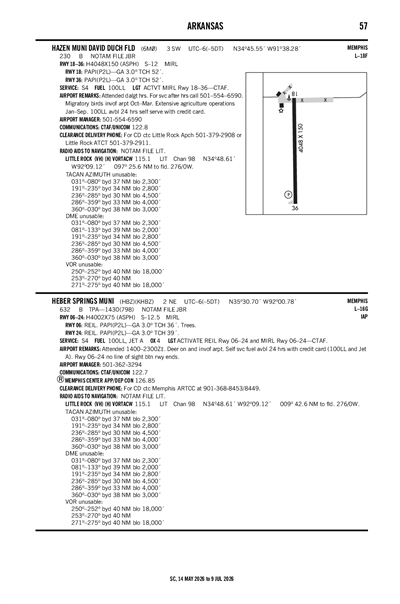

HAZEN MUNI DAVID DUCH FLD - Airport Diagram

6M0

HAZEN MUNI DAVID DUCH FLD

PublicPUB

3 miles SW of HAZEN, AR

View on Map

Status

Operational

Coordinates

34° 45' 33"N 91° 38' 17"W

Elevation

230' MSL

Pattern Alt

1230' MSL

Mag Variation

03E

Fuel

100LL

FSS

JONESBORO (JBR)

Sectional

MEMPHIS

ARTCC

MEMPHIS (ZME)

Data Effective

5/16/24-6/13/24

KLRF (26nm) VFR

7:55 AM CDT RAW

Clear

Viz

10sm

Temp

72°F

Dew

62°F

Pres

30.01"Hg

Wind

080° 3kts

RMK

AO2 SLP163 T02220169 $

KLRF 121255Z AUTO 08003KT 10SM CLR 22/17 A3001 RMK AO2 SLP163 T02220169 $

Add Your Business

6M0 FBOs

Promote Listing

Hazen Municipal Airport

UNICOM: 122.8

Phone: (870) 255-4873

0 Reviews (Read | Sign In To Write)

Independent

As of 6/9	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.75
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

No Documents

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KLRF (26nm)

RAW

Reported

Wed, 6/12 2:00 AM CDT

Valid

Wed, 6/12 2:00 AM CDT - Thu, 6/13 8:00 AM CDT

VFR

2:00 AM CDT - 10:00 AM CDT

Broken 20,000'
Scattered 5,000'

Viz

6sm

Pres

29.94"Hg

Wind

VRB° 3kts

VFR

Becoming 10:00 AM CDT - 8:00 AM CDT

Few 6,000'

Viz

6sm

Pres

29.91"Hg

Wind

060° 6kts

TAF KLRF 120700Z 1207/1313 VRB03KT 9999 SCT050 BKN200 QNH2995INS
BECMG 1215/1216 06006KT 9999 FEW060 QNH2992INS TX31/1221Z TN17/1211Z

6M0

Domestic
6/12/241200Z	!JBR 06/151 6M0 AIRSPACE UAS WI AN AREA DEFINED AS 0.5NM RADIUS OF 344834.20N0913513W (3.9NM NE 6M0) SFC-100FT AGL 2406121200-2406121900
6/3/241346Z	!JBR 06/034 6M0 OBST TOWER LGT (ASN 2023-ASW-7600-OE) 344750N0913410W (4.1NM NE 6M0) 490FT (265FT AGL) U/S 2406031346-2407181345

ATC Tower

Attendance

DALGT
FOR SVC AFT HRS CALL 501-554-6590.
FOR SVC AFT HRS CALL 870-255-4873 - NO FEE.

Owner

CITY OF HAZEN
PO BOX 564
HAZEN, AR 72064
Phone: 870-255-4521

Manager

PATRICK CLAYTON
1856 HWY 249
HAZEN, AR 72064
Phone: 501-554-6590

FSS

JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF

NOTAM

JBR

Light Schedule

Lights

ACTVT MIRL RY 18/36 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting

Runway 18/36

Dimensions

4048 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	180°	360°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	34° 45' 53"N	34° 45' 13"N
Longitude	91° 38' 17"W	91° 38' 17"W
Elevation	230'	224'
Threshold Crossing Height	52 ft. AGL	52 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	EXTENSIVE AGRICULTURE OPNS JAN THRU SEPT.
A110-2	MIGRATORY BIRDS INVOF ARPT OCT-MAR.
A110-3	FOR CD CTC LITTLE ROCK APCH 501-379-2908 OR LITTLE ROCK ATCT 501-379-2911.

HAZEN MUNI DAVID DUCH FLD (IATA: 6M0) is a public airport located in HAZEN, AR.
