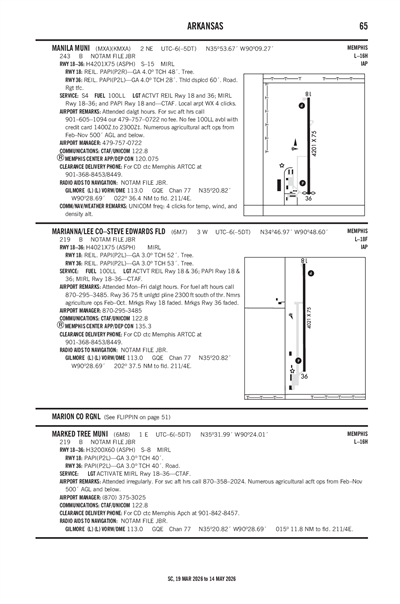

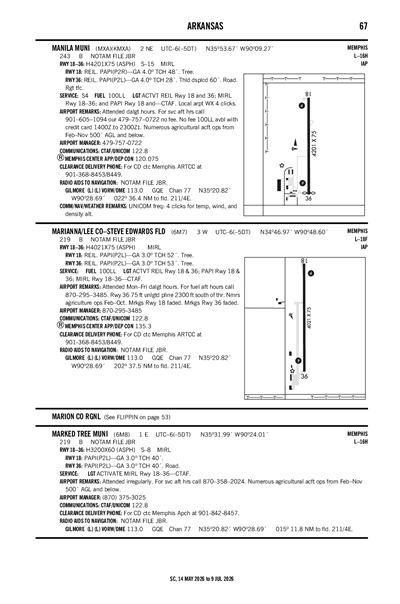

MARIANNA/LEE COUNTY-STEVE EDWARDS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

6M7
MARIANNA/LEE COUNTY-STEVE EDWARDS FLD
PublicPUB

3 miles W of MARIANNA, AR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 46' 58"N 90° 48' 36"W
219' MSL
1219' MSL
00E
100LL
JONESBORO (JBR)
MEMPHIS
MEMPHIS (ZME)
5/16/24-6/13/24
KDRP (20nm) MVFR
10:15 PM CDT
Light Rain
Overcast 8,000'
Broken 2,100'
Broken 1,600'
8sm
70°F
68°F
30.00"Hg
150° 7kts
Gusts 12kts
AO2
KDRP 010315Z AUTO 15007G12KT 8SM -RA BKN016 BKN021 OVC080 21/20 A3000 RMK AO2
Add Your Business

6M7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMEM (44nm)
Fri, 5/31 10:01 PM CDT
Fri, 5/31 10:00 PM CDT - Sun, 6/2 1:00 AM CDT
MVFR
10:00 PM CDT - 2:00 AM CDT
Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 9,000'
Scattered 3,000'
5sm
140° 10kts
IFR
2:00 AM CDT - 10:00 AM CDT
Light Showers and Rain
Overcast 3,000'
Broken 900'
5sm
150° 10kts
MVFR
10:00 AM CDT - 4:00 PM CDT
Showers in vicinity
Overcast 1,500'
6sm
190° 10kts
VFR
4:00 PM CDT - 7:00 PM CDT
Broken 15,000'
Scattered 5,000'
6sm
230° 8kts
VFR
7:00 PM CDT - 1:00 AM CDT
Scattered 25,000'
6sm
190° 6kts
MVFR
7:00 PM CDT - 1:00 AM CDT
Thunderstorm and Rain and Mist
Broken 25,000'
4sm
Calm
KMEM 010301Z 0103/0206 14010KT 5SM SHRA BR VCTS SCT030CB OVC090
   FM010700 15010KT 5SM -SHRA BKN009 OVC030
   FM011500 19010KT P6SM VCSH OVC015
   FM012100 23008KT P6SM SCT050 BKN150
   FM020000 19006KT P6SM SCT250
   PROB30 0200/0206 4SM TSRA BR BKN250CB
6M7
Domestic
5/28/241523Z !JBR 05/504 6M7 OBST TOWER LGT (ASR 1020578) 344152.00N0905431.00W (7.1NM SW 6M7) 533.1FT (335.0FT AGL) U/S 2405281523-2406282359
5/22/241903Z !JBR 05/342 6M7 OBST TOWER LGT (ASR 1308145) 344627.62N0905221.19W (3.1NM W 6M7) 432FT (229FT AGL) U/S 2405221903-2406211700EST
No
MON-FRI DALGT
SAT SR-1200
CITY OF MARIANNA
35 SOUTH POPLAR
MARIANNA, AR 72360
Phone: 870-295-6089
DOUG GIBSON
BOX 478
MARIANNA, AR 72360
Phone: 870-295-3485
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
JBR
--
ACTVT REIL RWY 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
9
2
0
0
0
0
None
None
None
None
Crop Dusting

Runway 18/36

4021 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 34° 47' 18"N 34° 46' 38"N
Longitude 90° 48' 35"W 90° 48' 36"W
Elevation 219' 219'
Threshold Crossing Height 52 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RY 36 75 FT UNLGTD PLINE 2300 FT SOUTH OF THLD.
A110-2NUMEROUS AGRICULTURE OPS FEB-OCT.
A110-3FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
MARIANNA/LEE COUNTY-STEVE EDWARDS FLD (IATA: 6M7) is a public airport located in MARIANNA, AR.
