6Y8
WELKE
PublicPUB

2 miles S of BEAVER ISLAND, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 43' 17"N 85° 31' 11"W
664' MSL
1664' MSL
05W
None Listed
LANSING (LAN)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KSJX (3nm) VFR
1:35 AM EDT
Clear
10sm
62°F
40°F
30.11"Hg
200° 6kts
AO2 T01660042
KSJX 010535Z AUTO 20006KT 10SM CLR 17/04 A3011 RMK AO2 T01660042
Add Your Business

6Y8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

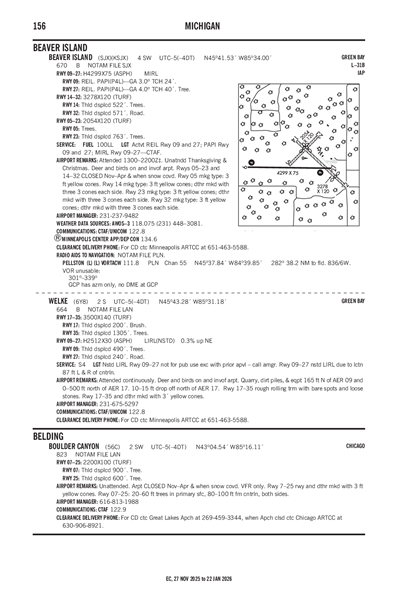

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KPLN (32nm)
Sat, 6/1 1:20 AM EDT
Sat, 6/1 2:00 AM EDT - Sun, 6/2 2:00 AM EDT
VFR
2:00 AM EDT - 11:00 AM EDT
Broken 25,000'
6sm
VRB° 3kts
VFR
11:00 AM EDT - 8:00 PM EDT
Broken 20,000'
Broken 12,000'
6sm
210° 8kts
VFR
8:00 PM EDT - 2:00 AM EDT
Overcast 12,000'
Scattered 6,000'
6sm
VRB° 3kts
KPLN 010520Z 0106/0206 VRB03KT P6SM BKN250
   FM011500 21008KT P6SM BKN120 BKN200
   FM020000 VRB03KT P6SM SCT060 OVC120
6Y8
Domestic
12/9/201858Z !LAN 12/102 6Y8 RWY 17 THR DISPLACED 250FT 2012091858-PERM
No
ALL
PAUL WELKE
PO BOX 112
BEAVER ISLAND, MI 49782-0112
Phone: 231-448-2071
PAUL WELKE
36155 EAST SIDE DR
BEAVER ISLAND, MI 49782
Phone: 231-675-5297
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
NSTD LIRL RWY 09/27 NOT FOR PUB USE EXC WITH PRIOR APVL - CALL AMGR.
N/A
Yes
Yes
No
Hanger, Tie-Down
No
12
6
0
1
0
0
Major
Major
None
None
Charter Service

Runway 09/27

2512 ft. x 30 ft.
ASPH
Fair
NONE
NSTD

--
--
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 45° 43' 13"N 45° 43' 14"N
Longitude 85° 31' 32"W 85° 30' 57"W
Elevation 652' 659'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

3500 ft. x 140 ft.
TURF
Poor
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 173°353°
Traffic Pattern
Markings
Markings Condition
Latitude 45° 43' 36"N 45° 43' 02"N
Longitude 85° 31' 12"W 85° 31' 06"W
Elevation 654' 658'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2DEER & BIRDS ON & INVOF ARPT.
A110-3QUARRY, DIRT PILES, & EQPT 165 FT NORTH OF AER 09 & 0-500 FT NORTH OF AER 17.
A110-410-15 FT DROP OFF NORTH OF AER 17.
A110-6FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
WELKE (IATA: 6Y8) is a public airport located in BEAVER ISLAND, MI.
