7K5
KENMARE MUNI
Public
PUB
1 miles SE of KENMARE, ND
View on
Map
Status
Operational
Coordinates
48° 40' 03"N
102° 02' 53"W
Elevation
1962' MSL
Pattern Alt
2962' MSL
Mag Variation
10E
Fuel
100LL
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
11/28/24-12/26/24
K1MN (7nm)
LIFR
7:10 AM CST
RAW
Mist
Overcast 300'
Viz
2sm
Temp
14°F
Dew
12°F
Pres
30.03"Hg
Wind
120° 6kts
RMK
AO2 SLP210 $
K1MN 231310Z AUTO 12006KT 2SM BR OVC003 M10/M11 A3003 RMK AO2 SLP210 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
7K5 FBOs
Promote Listing
Kenmare Municipal Airport
UNICOM: 122.8
Phone: (701) 385-9335
Other: (701) 848-6322
0 Reviews
(
Read
|
Sign In To Write
)
Independent
As of
12/17
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
6.10
Full Serve
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
No communication frequencies available for this airport.

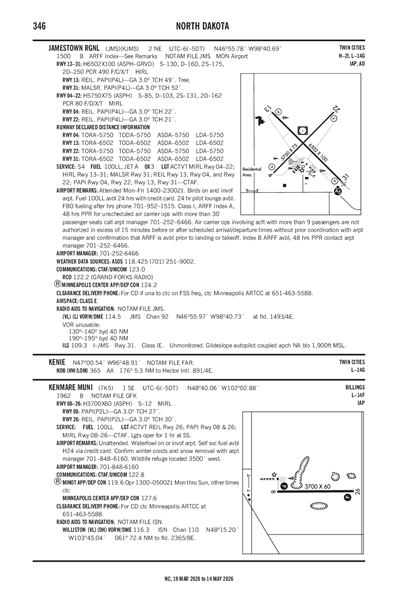

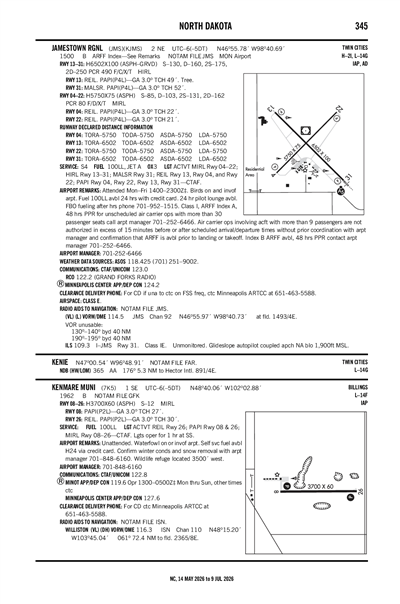

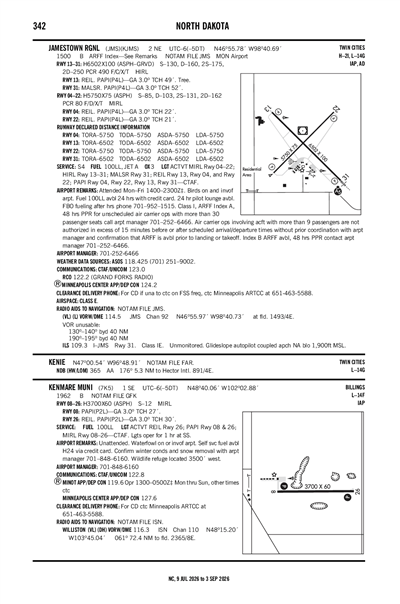

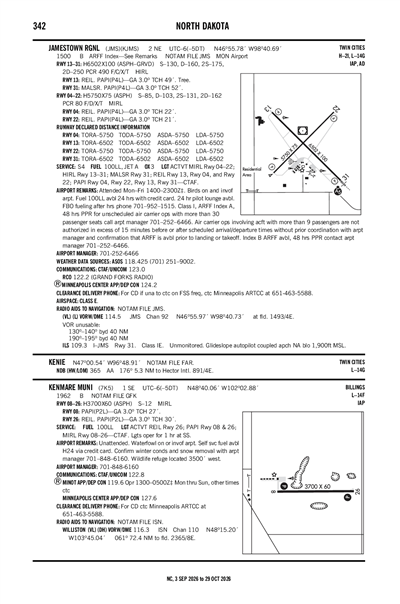

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 26
Terminal Area Forecast
KMIB (32nm)
RAW
Reported
Mon, 12/23 6:40 AM CST
Valid
Mon, 12/23 6:00 AM CST - Tue, 12/24 9:00 AM CST
LIFR
6:00 AM CST - 9:00 AM CST
Light Freezing Drizzle and Mist
Overcast 400'
Viz
0.62sm
Pres
30.03"Hg
Wind
VRB° 6kts
Icing
Moderate, In Precipitation (Clear): 18,000-3,000'
LIFR
Temporary
6:00 AM CST - 9:00 AM CST
Freezing Fog
No Clouds
Viz
0.5sm
Wind
Calm
IFR
Becoming
9:00 AM CST - 11:00 AM CST
Mist
Broken 1,000'
Viz
1.99sm
Pres
30.03"Hg
Wind
140° 6kts
Icing
Moderate (Mixed): 1,000-3,000'
IFR
Becoming
11:00 AM CST - 1:00 PM CST
Mist
Broken 2,500'
Viz
2.98sm
Pres
30.09"Hg
Wind
140° 6kts
Icing
Moderate (Mixed): 2,500-4,500'
VFR
Becoming
1:00 PM CST - 7:00 PM CST
Scattered 2,500'
Viz
6sm
Pres
30.06"Hg
Wind
140° 6kts
VFR
Becoming
7:00 PM CST - 2:00 AM CST
Scattered 5,000'
Viz
6sm
Pres
30.00"Hg
Wind
140° 6kts
VFR
Becoming
2:00 AM CST - 9:00 AM CST
Broken 10,000'
Viz
6sm
Pres
30.00"Hg
Wind
200° 9kts
TAF AMD KMIB 231240Z 2312/2415 VRB06KT 1000 -FZDZ BR OVC004 660003 QNH3002INS
TEMPO 2312/2315 0800 FZFG
BECMG 2315/2316 14006KT 3200 BR BKN010 640102 QNH3004INS
BECMG 2317/2318 14006KT 4800 BR BKN025 640252 QNH3008INS
BECMG 2319/2320 14006KT 9999 NSW SCT025 QNH3006INS
BECMG 2401/2402 14006KT 9999 SCT050 QNH3001INS
BECMG 2408/2409 20009KT 9999 BKN100 QNH3000INS TXM04/2322Z TNM12/2312Z
7K5
Domestic
12/8/24
0247Z
!GFK 12/151 7K5 OBST TOWER LGT (ASR 1272456) 483036.70N1015406.50W (11.1NM SSE 7K5) 2238.8FT (266.1FT AGL) U/S 2412080247-2504070247
ATC Tower
No
Attendance
UNATNDD
Owner
KENMARE ARPT AUTH
50120 HWY 52 NORTH
KENMARE, ND 58746
Phone: 701-848-6046
Manager
MARK GRAVESEN
50120 HWY 52 NORTH
KENMARE, ND 58746
Phone: 701-848-6046
FSS
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
NOTAM
GFK
Light Schedule
--
Lights
ACTVT REIL RWY 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 08/26
Dimensions
3700 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 08
Runway 26
True Heading
90°
270°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
48° 40' 03"N
48° 40' 03"N
Longitude
102° 03' 20"W
102° 02' 25"W
Elevation
1,962'
1,955'
Threshold Crossing Height
27 ft. AGL
30 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
No
Yes
A110-1
CONFIRM WINTER CONDITIONS & SNOW REMOVAL WITH AMGR 701-848-6322.
A110-2
WILDLIFE REFUGE LCTD 3500 FT W.
A110-3
WATERFOWL ON OR INVOF ARPT.
A110-4
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
KENMARE MUNI (IATA: 7K5) is a public airport located in KENMARE, ND.
