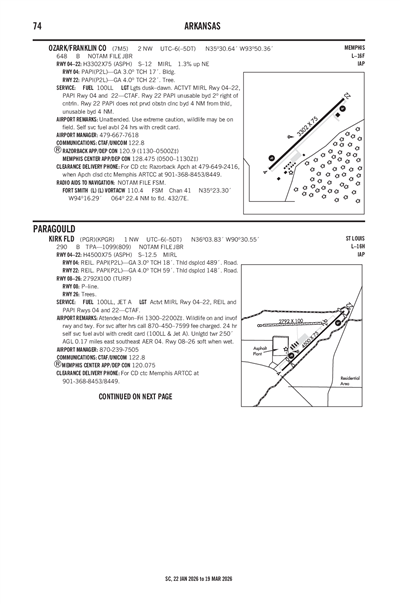

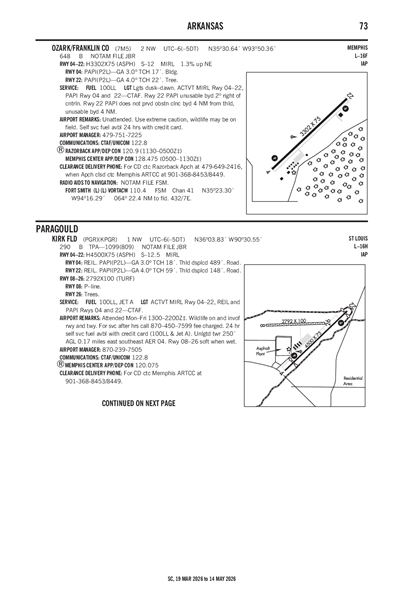

OZARK/FRANKLIN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7M5
OZARK/FRANKLIN COUNTY
PublicPUB

2 miles NW of OZARK, AR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 30' 39"N 93° 50' 22"W
648' MSL
1648' MSL
04E
100LL
JONESBORO (JBR)
MEMPHIS
MEMPHIS (ZME)
11/28/24-12/26/24
KFSM (28nm) VFR
5:53 AM CST
Overcast 7,500'
10sm
44°F
34°F
30.19"Hg
060° 7kts
AO2 SLP225 T00670011 10072 20061 55007
KFSM 231153Z 06007KT 10SM OVC075 07/01 A3019 RMK AO2 SLP225 T00670011 10072 20061 55007
Add Your Business

7M5 FBOs

Promote Listing
Ozark-Franklin County Airport
UNICOM: 122.8
Phone: (479) 430-9021
Other: (479) 667-2159
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.15
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFSM (28nm)
Mon, 12/23 5:20 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 9:00 PM CST
Broken 4,500'
6sm
070° 6kts
MVFR
9:00 PM CST - 3:00 AM CST
Overcast 2,000'
6sm
080° 5kts
MVFR
9:00 PM CST - 3:00 AM CST
Light Showers and Rain and Showers and Drizzle and Mist
Overcast 1,200'
4sm
Calm
MVFR
3:00 AM CST - 6:00 AM CST
Light Showers and Rain and Mist
Overcast 1,200'
4sm
060° 8kts
KFSM 231120Z 2312/2412 07006KT P6SM BKN045
   FM240300 08005KT P6SM OVC020
   PROB30 2403/2409 4SM -SHRADZ BR OVC012
   FM240900 06008KT 4SM -SHRA BR OVC012
7M5
Domestic
12/22/241837Z !JBR 12/239 7M5 AD AP FUEL NOT AVBL 2412221837-2501022359
12/18/240621Z !JBR 12/198 7M5 OBST TOWER LGT (ASR 1290382) 352644.20N0935637.90W (6.5NM SW 7M5) 1149.0FT (310.0FT AGL) U/S 2412180621-2502010621
12/6/242338Z !JBR 12/066 7M5 OBST TOWER LGT (ASR 1058789) 353004.00N0934843.00W (1.5NM ESE 7M5) 1024.9FT (176.8FT AGL) U/S 2412062338-2503080500
11/27/241725Z !JBR 11/279 7M5 OBST TOWER LGT (ASR 1243208) 353833.10N0934926.70W (7.9NM NE 7M5) 1656.2FT (305.1FT AGL) U/S 2411271725-2502260500
10/15/240005Z !JBR 10/157 7M5 OBST TOWER LGT (ASR 1207055) 353403.30N0934046.20W (8.6NM ENE 7M5) 2072.5FT (270.0FT AGL) U/S 2410150005-2501120400
10/1/241958Z !JBR 10/011 7M5 RWY 22 PAPI U/S 2410011958-2504022111EST
No
UNATTNDD
CITY OF OZARK-FRANKLIN CO
PO BOX 196
OZARK, AR 72949
Phone: 479-667-4726
J. C. SMITH
P.O. BOX 262
OZARK, AR 72949
Phone: 479-667-7618
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
JBR
--
DUSK-DAWN. ACTVT MIRL RY 04/22, PAPI RYS 4 &22 - CTAF.
N/A
BCN OTS.
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 04/22

3302 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 47°227°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 30' 27"N 35° 30' 50"N
Longitude 93° 50' 36"W 93° 50' 07"W
Elevation 606' 648'
Threshold Crossing Height 17 ft. AGL 22 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2USE EXTRM CTN, WILDLIFE MAY BE ON FLD.
A110-3FOR CD CTC RAZORBACK APCH AT 479-649-2416, WHEN APCH CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
OZARK/FRANKLIN COUNTY (IATA: 7M5) is a public airport located in OZARK, AR.
