7P5
PISO
PublicPUB

4 miles NW of SURING, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 03' 57"N 88° 25' 37"W
895' MSL
1395' MSL
01E
MOGAS
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KEZS (18nm) VFR
8:35 AM CDT
Clear
10sm
68°F
61°F
29.86"Hg
250° 3kts
AO2 T02000163
KEZS 121335Z AUTO 25003KT 10SM CLR 20/16 A2986 RMK AO2 T02000163
Add Your Business

7P5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

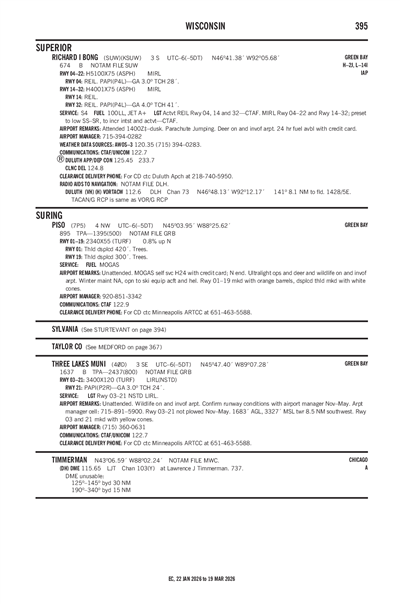

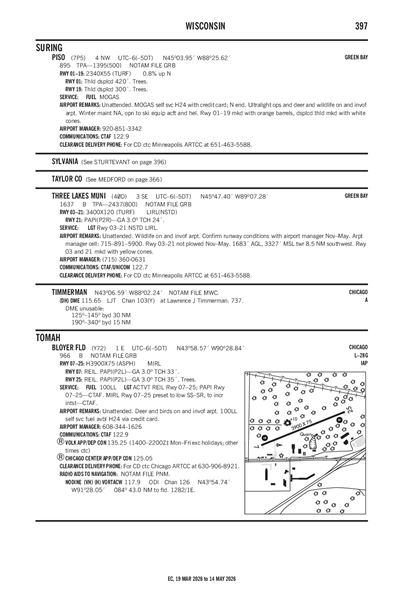

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KGRB (37nm)
Wed, 6/12 6:30 AM CDT
Wed, 6/12 7:00 AM CDT - Thu, 6/13 7:00 AM CDT
VFR
7:00 AM CDT - 2:00 PM CDT
Sky Clear
6sm
220° 6kts
VFR
2:00 PM CDT - 11:00 PM CDT
Broken 10,000'
6sm
210° 10kts
Gusts 15kts
VFR
11:00 PM CDT - 4:00 AM CDT
Light Showers and Rain
Broken 8,000'
Scattered 4,000'
6sm
200° 8kts
Shear 240° 45kts @ 1800'
MVFR
Temporary 12:00 AM CDT - 4:00 AM CDT
Thunderstorm and Rain
Broken 4,000'
4sm
Calm
VFR
4:00 AM CDT - 7:00 AM CDT
Scattered 5,000'
6sm
220° 9kts
Shear 250° 40kts @ 2000'
KGRB 121130Z 1212/1312 22006KT P6SM SKC
   FM121900 21010G15KT P6SM BKN100
   FM130400 20008KT P6SM -SHRA SCT040 BKN080 WS018/24045KT
   TEMPO 1305/1309 4SM TSRA BKN040CB
   FM130900 22009KT P6SM SCT050 WS020/25040KT
7P5
Domestic
6/9/240534Z !GRB 06/155 7P5 OBST TOWER LGT (ASN 2022-AGL-20558-OE) 450430N0881243W (9.1NM E 7P5) 1180FT (320FT AGL) U/S 2406090534-2407240533
No
UNATNDD
PHILLIP CHRISTENSON
10703 STATE HWY 32
SURING, WI 54174
Phone: 920-851-3342
PHILLIP CHRISTENSON
10703 STATE HWY 32
SURING, WI 53174
Phone: 920-851-3342
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
1
0
0
0
0
1
None
None
None
None
None

Runway 01/19

2340 ft. x 55 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 6°186°
Traffic Pattern
Markings
Markings Condition
Latitude 45° 03' 46"N 45° 04' 09"N
Longitude 88° 25' 39"W 88° 25' 36"W
Elevation 876' 895'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWYS NOT PLWD WINT MONTHS, OPEN TO SKI-EQUIPPED ACFT AND HEL.
A110-3FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-4ULTRALIGHT ACT ON ARPT.
A110-5DEER & TURKEY ON & INVOF ARPT.
PISO (IATA: 7P5) is a public airport located in SURING, WI.
