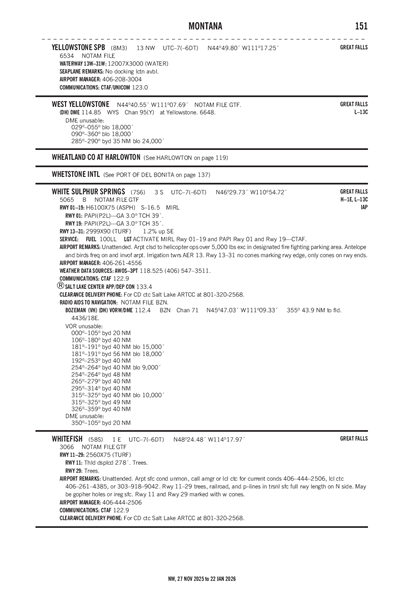

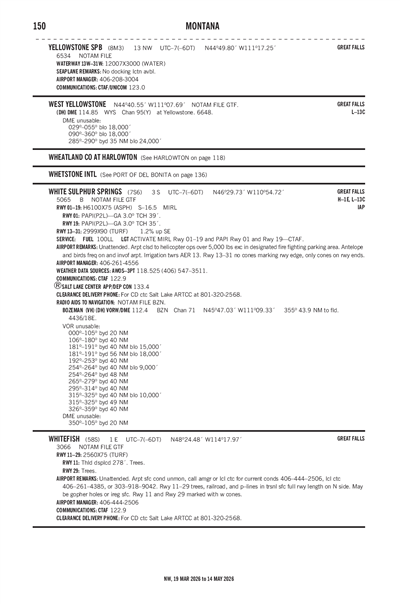

WHITE SULPHUR SPRINGS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7S6
WHITE SULPHUR SPRINGS
PublicPUB

3 miles S of WHITE SULPHUR SPRINGS, MT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 29' 44"N 110° 54' 43"W
5065' MSL
6065' MSL
11E
100LL
GREAT FALLS (GTF)
GREAT FALLS
SALT LAKE CITY (ZLC)
11/28/24-12/26/24
KBZN (44nm) VFR
4:56 AM MST
Few 7,000'
10sm
30°F
24°F
30.01"Hg
090° 4kts
AO2 SLP184 T10111044 10011 21017 58005
KBZN 231156Z AUTO 09004KT 10SM FEW070 M01/M04 A3001 RMK AO2 SLP184 T10111044 10011 21017 58005
Add Your Business

7S6 FBOs

Promote Listing
White Sulphur Springs Airport
Phone: (406) 261-4556
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.49
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
406-547-3511
 118.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBZN (44nm)
Mon, 12/23 4:39 AM MST
Mon, 12/23 5:00 AM MST - Tue, 12/24 11:00 AM MST
VFR
5:00 AM MST - 2:00 PM MST
Showers in vicinity
Broken 6,000'
Scattered 3,500'
6sm
VRB° 6kts
VFR
Temporary 7:00 AM MST - 11:00 AM MST
Light Rain
Broken 3,500'
6sm
Calm
VFR
2:00 PM MST - 12:00 AM MST
Broken 20,000'
Scattered 11,000'
Scattered 6,000'
6sm
VRB° 6kts
VFR
12:00 AM MST - 11:00 AM MST
Broken 18,000'
Scattered 10,000'
6sm
VRB° 6kts
KBZN 231139Z 2312/2418 VRB06KT P6SM VCSH SCT035 BKN060
   TEMPO 2314/2318 6SM -RA BKN035
   FM232100 VRB06KT P6SM SCT060 SCT110 BKN200
   FM240700 VRB06KT P6SM SCT100 BKN180
7S6
FDC
11/12/241626Z !FDC 4/2442 7S6 IAP WHITE SULPHUR SPRINGS,
WHITE SULPHUR SPRINGS, MT.
RNAV (GPS) RWY 1, ORIG...
CHANGE CHART PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVALS AT
BAXTA ON V247 SOUTHEAST BOUND.
THIS IS RNAV (GPS) RWY 1, ORIG-A. 2411121626-PERM
11/4/241419Z !FDC 4/8465 7S6 IAP WHITE SULPHUR SPRINGS, WHITE SULPHUR SPRINGS, MT.
RNAV (GPS) RWY 19, ORIG...
PROCEDURE NA.
2411041419-2506161419EST
11/4/241419Z !FDC 4/8464 7S6 IAP WHITE SULPHUR SPRINGS, WHITE SULPHUR SPRINGS, MT.
RNAV (GPS) RWY 1, ORIG...
PROCEDURE NA.
2411041419-2506161419EST
No
UNATNDD
CITY & MEAGHER COUNTY
COURT HOUSE PO BOX 309
WH SULPHUR SPRINGS, MT 59645
Phone: 406-547-3612
KURT BURNS
PO BOX 248
CLYDE PARK, MT 59018
Phone: 406-261-4556
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
ACTVT MIRL RY 01/19 & PAPI RYS 01 & 19 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 01/19

6100 ft. x 75 ft.
ASPH
Good
NONE
MED

16,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 22°202°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 29' 13"N 46° 30' 09"N
Longitude 110° 55' 01"W 110° 54' 28"W
Elevation 5,043' 5,049'
Threshold Crossing Height 39 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

2999 ft. x 90 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 143°323°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 46° 30' 02"N 46° 29' 38"N
Longitude 110° 54' 52"W 110° 54' 26"W
Elevation 5,030' 5,065'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1PHONE LOCATED IN PILOTS LOUNGE.
A110-2ANTELOPE & BIRDS FREQUENTLY ON & INVOF ARPT.
A110-3IRRIGATION TWRS AER 13.
A110-5ARPT CLOSED TO HEL OPS OVER 5000 LBS EXC IN DESIGNATED FIRE FIGHTING PARKING AREA.
A110-6FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-7RWY 13/31 NO CONES MARKING RWY EDGE, ONLY CONES ON RWY ENDS.
WHITE SULPHUR SPRINGS (IATA: 7S6) is a public airport located in WHITE SULPHUR SPRINGS, MT.
