7Y4
BAGLEY MUNI
Public
PUB
1 miles E of BAGLEY, MN
View on
Map
Status
Operational
Coordinates
47° 31' 27"N
95° 21' 49"W
Elevation
1503' MSL
Pattern Alt
2503' MSL
Mag Variation
05E
Fuel
None Listed
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/16/24-6/13/24
KFSE (17nm)
VFR
10:15 AM CDT
RAW
Clear
Viz
10sm
Temp
73°F
Dew
57°F
Pres
29.62"Hg
Wind
230° 13kts
RMK
AO2
KFSE 121515Z AUTO 23013KT 10SM CLR 23/14 A2962 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
7Y4 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

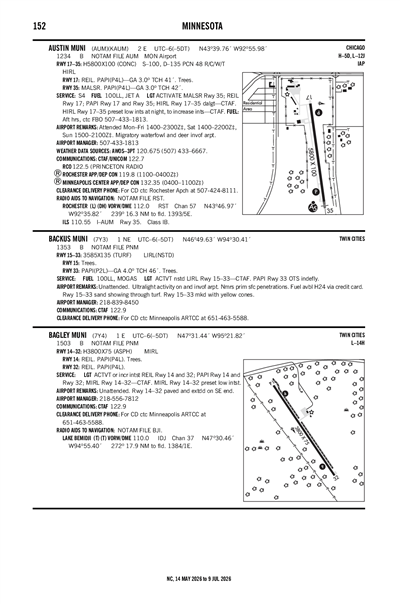

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KBJI (18nm)
RAW
Reported
Wed, 6/12 6:20 AM CDT
Valid
Wed, 6/12 7:00 AM CDT - Thu, 6/13 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Thunderstorm in vicinity
Broken 12,000'
Viz
6sm
Wind
200° 7kts
Shear 230° 35kts @ 1500'
VFR
10:00 AM CDT - 3:00 PM CDT
Scattered 25,000'
Viz
6sm
Wind
220° 7kts
VFR
3:00 PM CDT - 6:00 PM CDT
Thunderstorm in vicinity
Scattered 8,000'
Viz
6sm
Wind
230° 11kts
VFR
6:00 PM CDT - 7:00 PM CDT
Scattered 20,000'
Viz
6sm
Wind
270° 10kts
Gusts 18kts
VFR
7:00 PM CDT - 7:00 AM CDT
Sky Clear
Viz
6sm
Wind
300° 9kts
KBJI 121120Z 1212/1312 20007KT P6SM VCTS BKN120CB WS015/23035KT
FM121500 22007KT P6SM SCT250
FM122000 23011KT P6SM VCTS SCT080CB
FM122300 27010G18KT P6SM SCT200
FM130000 30009KT P6SM SKC
7Y4
Domestic
6/4/24
0552Z
!PNM 06/032 7Y4 OBST TOWER LGT (ASR 1040567) 473533.00N0952541.00W (4.9NM NNW 7Y4) 1980.0FT (419.9FT AGL) U/S 2406040552-2407042300
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF BAGLEY
PO BOX 178
BAGLEY, MN 56621-0178
Phone: 218-694-2865
Manager
BILL MASTERSON
PO BOX 178
BAGLEY, MN 56621-0178
Phone: 218-556-7812
FSS
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
NOTAM
PNM
Light Schedule
--
Lights
ACTVT OR INCR INTST REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF. MIRL RWY 14/32 PRESET LOW INTST.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
4
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 14/32
Dimensions
3800 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 14
Runway 32
True Heading
146°
326°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
47° 31' 42"N
47° 31' 11"N
Longitude
95° 22' 05"W
95° 21' 34"W
Elevation
1,497'
1,503'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
BAGLEY MUNI (IATA: 7Y4) is a public airport located in BAGLEY, MN.
