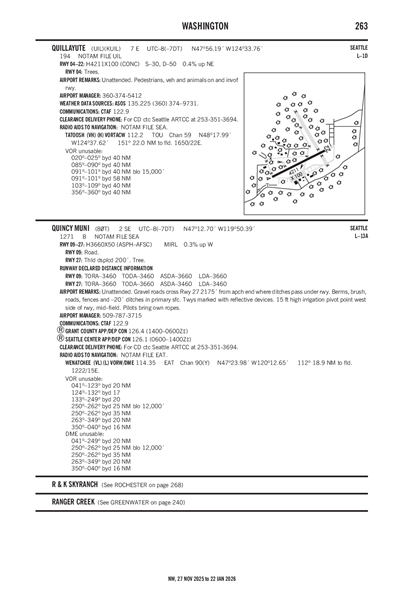

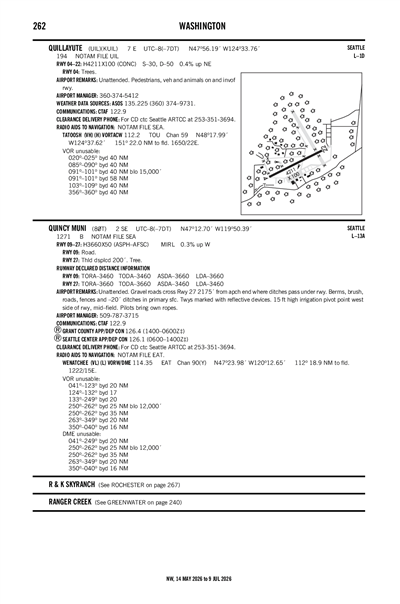

QUINCY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

80T
QUINCY MUNI
PublicPUB

2 miles SE of QUINCY, WA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 12' 42"N 119° 50' 23"W
1271' MSL
2271' MSL
20E
None Listed
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
11/28/24-12/26/24
KEPH (14nm) IFR
3:53 AM PST
Overcast 700'
10sm
36°F
36°F
30.05"Hg
180° 4kts
AO2 SLP187 60000 70011 T00220022 10039 20022 53019 $
KEPH 231153Z AUTO 18004KT 10SM OVC007 02/02 A3005 RMK AO2 SLP187 60000 70011 T00220022 10039 20022 53019 $
Add Your Business

80T FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KEAT (19nm)
Mon, 12/23 3:32 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
VFR
4:00 AM PST - 7:00 AM PST
Sky Clear
6sm
250° 7kts
MVFR
7:00 AM PST - 10:00 PM PST
Overcast 1,900'
6sm
VRB° 2kts
IFR
10:00 PM PST - 4:00 AM PST
Light Rain and Mist
Overcast 1,500'
2sm
300° 3kts
KEAT 231132Z 2312/2412 25007KT P6SM SKC
   FM231500 VRB02KT P6SM OVC019
   FM240600 30003KT 2SM -RA BR OVC015 AMD NOT SKED
80T
Domestic
12/15/240634Z !SEA 12/232 80T OBST TOWER LGT (ASR UNKNOWN) 470355.00N1194428.00W (9.7NM SSE 80T) 1878FT (700FT AGL) U/S 2412150634-2501290634
11/29/240945Z !SEA 11/398 80T OBST TOWER LGT (ASR UNKNOWN) 470340.90N1194449.57W (9.7NM SSE 80T) 1878FT (700FT AGL) U/S 2411290945-2501132359
11/27/241452Z !SEA 11/381 80T OBST TOWER LGT (ASR UNKNOWN) 470341.34N1194428.36W (9.7NM SSE 80T) 1878FT (700FT AGL) U/S 2411271452-2501112359
11/27/241441Z !SEA 11/380 80T OBST TOWER (ASR UNKNOWN) 470355.22N1194419.32W (10.5NM SSE 80T) 1878FT (700FT AGL) U/S 2411271441-2501112359
No
UNATNDD
CITY OF QUINCY
101 F STREET SW
QUINCY, WA 98848
Phone: 509-787-3715
PAT CONNELLY
PORT OF QUINCY, 101 F STREET SW
QUINCY, WA 98848
Phone: 509-787-3715
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
SEA
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway 09/27

3660 ft. x 50 ft.
ASPH
Good
AFSC
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 106°286°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 12' 47"N 47° 12' 37"N
Longitude 119° 50' 49"W 119° 49' 58"W
Elevation 1,271' 1,260'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2GRVL ROADS CROSS RY 27 2175' FM APCH END WHERE DITCHES PASS UNDER RY.
A110-3BERMS, BRUSH, ROADS, FENCES AND -20 FT DITCHES IN PRIM SFC.
A110-4TWYS MARKED WITH REFLECTIVE DEVICES.
A110-5FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A110-615 FT HI IRRIGATION PIVOT POINT W SIDE OF RWY, MID-FLD.
QUINCY MUNI (IATA: 80T) is a public airport located in QUINCY, WA.
