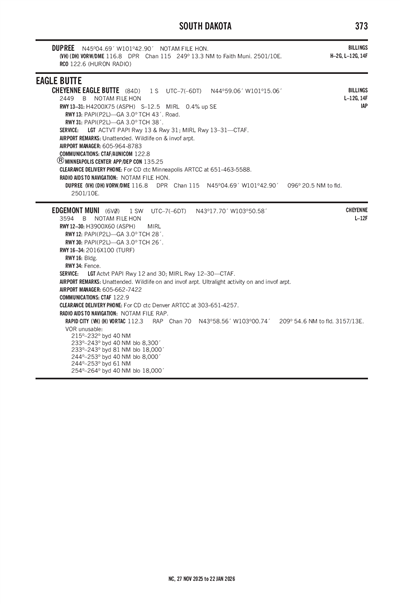

CHEYENNE EAGLE BUTTE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

84D
CHEYENNE EAGLE BUTTE
PublicPUB

1 miles S of EAGLE BUTTE, SD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 59' 04"N 101° 15' 04"W
2449' MSL
3449' MSL
09E
None Listed
HURON (HON)
BILLINGS
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KD07 (33nm) VFR
7:56 AM MDT
No Clouds
N/A
68°F
59°F
29.73"Hg
320° 7kts
AO1 SLP053 T02000150
KD07 121356Z AUTO 32007KT 20/15 A2973 RMK AO1 SLP053 T02000150
Add Your Business

84D FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMBG (49nm)
Wed, 6/12 6:27 AM CDT
Wed, 6/12 7:00 AM CDT - Thu, 6/13 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Few 25,000'
6sm
120° 7kts
VFR
10:00 AM CDT - 1:00 PM CDT
Few 5,000'
6sm
300° 7kts
VFR
1:00 PM CDT - 8:00 PM CDT
Few 5,000'
6sm
320° 12kts
Gusts 20kts
VFR
8:00 PM CDT - 4:00 AM CDT
Sky Clear
6sm
320° 10kts
VFR
4:00 AM CDT - 7:00 AM CDT
Scattered 25,000'
6sm
VRB° 5kts
KMBG 121127Z 1212/1312 12007KT P6SM FEW250
   FM121500 30007KT P6SM FEW050
   FM121800 32012G20KT P6SM FEW050
   FM130100 32010KT P6SM SKC
   FM130900 VRB05KT P6SM SCT250
84D
Domestic
5/8/241226Z !HON 05/033 84D OBST TOWER LGT (ASN 2019-AGL-14090-OE) 444054N1010838W (18.7NM SSE 84D) 2482FT (405FT AGL) U/S 2405081226-2406221225
No
UNATNDD
CITY EAG BUTTE&CHEY RVR SIOUX TRIBE
PO BOX 150
EAGLE BUTTE, SD 57625
Phone: 605-964-8783
JAMES TRAVERSIE
PO BOX 150
EAGLE BUTTE, SD 57636
Phone: 605-964-8783
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
HON
--
ACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
2
0
0
0
0
0
None
None
None
None
Air Ambulance

Runway 13/31

4200 ft. x 75 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 59' 18"N 44° 58' 49"N
Longitude 101° 15' 24"W 101° 14' 43"W
Elevation 2,432' 2,449'
Threshold Crossing Height 43 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON & INVOF ARPT.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
CHEYENNE EAGLE BUTTE (IATA: 84D) is a public airport located in EAGLE BUTTE, SD.
