SMITHVILLE CRAWFORD MUNI - Airport Diagram

84R

SMITHVILLE CRAWFORD MUNI

PublicPUB

2 miles N of SMITHVILLE, TX

View on Map

Status

Operational

Coordinates

30° 01' 42"N 97° 10' 01"W

Elevation

323' MSL

Pattern Alt

1323' MSL

Mag Variation

03E

Fuel

100LL

FSS

SAN ANGELO (SJT)

Sectional

SAN ANTONIO

ARTCC

HOUSTON (ZHU)

Data Effective

11/28/24-12/26/24

K3T5 (14nm) VFR

6:35 AM CST RAW

Overcast 7,000'

Viz

10sm

Temp

57°F

Dew

57°F

Pres

30.14"Hg

Wind

120° 6kts

RMK

AO2 T01400137 $

K3T5 231235Z AUTO 12006KT 10SM OVC070 14/14 A3014 RMK AO2 T01400137 $

Add Your Business

84R FBOs

Promote Listing

Smithville Crawford Municipal Airport

UNICOM: 122.9

Phone: (979) 242-3316

0 Reviews (Read | Sign In To Write)

Avfuel

As of 12/17	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.12
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 122.9

No communication frequencies available for this airport.

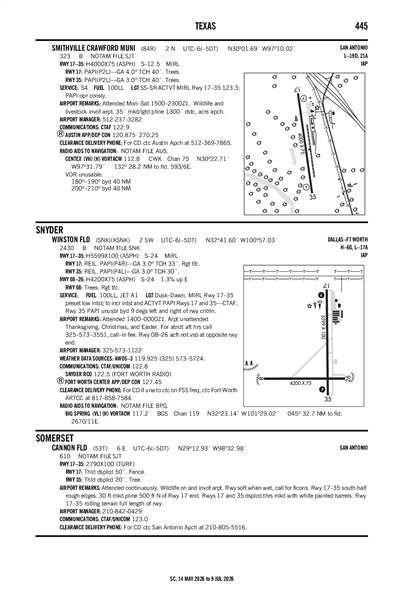

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KAUS (29nm)

RAW

Reported

Mon, 12/23 5:41 AM CST

Valid

Mon, 12/23 6:00 AM CST - Tue, 12/24 12:00 PM CST

MVFR

6:00 AM CST - 7:00 AM CST

Overcast 4,500'
Broken 3,000'

Viz

6sm

Wind

160° 3kts

MVFR

7:00 AM CST - 10:00 AM CST

Overcast 1,700'

Viz

6sm

Wind

170° 7kts

MVFR

10:00 AM CST - 12:00 PM CST

Broken 2,200'

Viz

6sm

Wind

160° 10kts

VFR

12:00 PM CST - 6:00 PM CST

Broken 5,000'

Viz

6sm

Wind

170° 12kts

MVFR

6:00 PM CST - 12:00 PM CST

Overcast 1,000'

Viz

6sm

Wind

150° 11kts

KAUS 231141Z 2312/2418 16003KT P6SM BKN030 OVC045
   FM231300 17007KT P6SM OVC017
   FM231600 16010KT P6SM BKN022
   FM231800 17012KT P6SM BKN050
   FM240000 15011KT P6SM OVC010

84R

Domestic
12/17/241801Z	!SJT 12/210 84R OBST TOWER LGT (ASR 1293380) 300305.50N0972518.60W (13.4NM W 84R) 789.7FT (309.7FT AGL) U/S 2412171801-2501311801
11/22/241233Z	!SJT 11/339 84R OBST TOWER LGT (ASR 1043219) 300027.80N0971042.60W (1.4NM SSW 84R) 593.8FT (190.0FT AGL) U/S 2411221233-2503221233
11/22/240000Z	!SJT 11/330 84R OBST TOWER LGT (ASR 1055351) 295750.20N0970931.00W (3.8NM S 84R) 736.2FT (308.1FT AGL) U/S 2411220000-2502190500

ATC Tower

Attendance

MON-SAT 0900-1700

Owner

CITY OF SMITHVILLE
PO BOX 449
SMITHVILLE, TX 78957
Phone: 512-237-3282

Manager

ROBERT TAMBLE
BOX 449
SMITHVILLE, TX 78957
Phone: 512-237-3282

FSS

SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF

NOTAM

SJT

Light Schedule

Lights

SS-SR ACTVT MIRL RWY 17/35 123.3; PAPI OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction

Runway 17/35

Dimensions

4000 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	172°	352°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	30° 02' 01"N	30° 01' 22"N
Longitude	97° 10' 05"W	97° 09' 58"W
Elevation	323'	322'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	4°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-2	WILDLIFE & LIVESTOCK INVOF ARPT.
A110-3	FOR CD CTC AUSTIN APCH AT 512-369-7865.
A110-4	35 FT MKD/LGTD PLINE 1300 FT DSTC, ACRS APCH.

SMITHVILLE CRAWFORD MUNI (IATA: 84R) is a public airport located in SMITHVILLE, TX.
