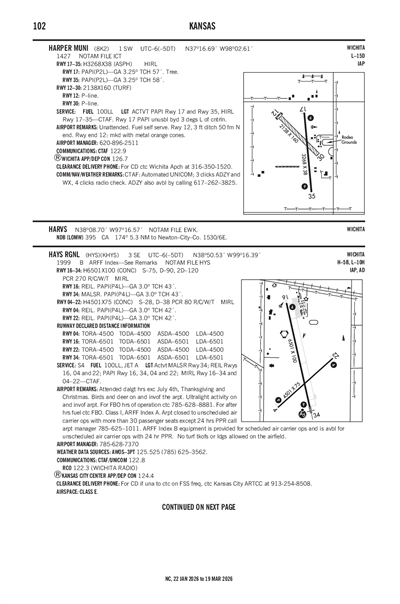

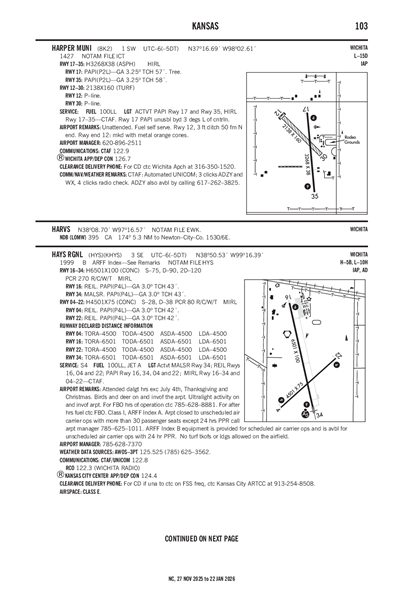

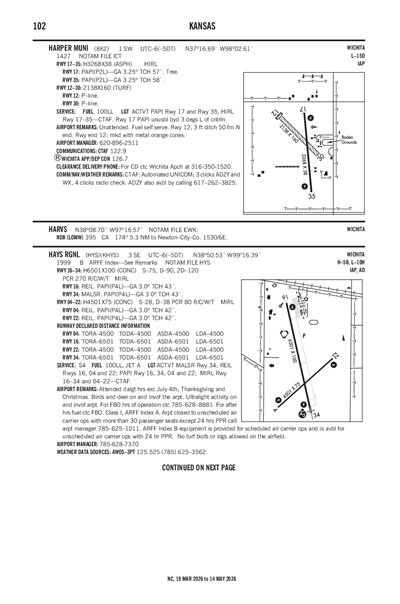

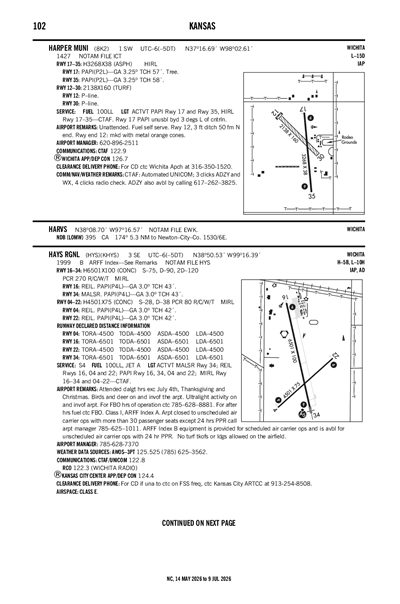

HARPER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

8K2
HARPER MUNI
PublicPUB

1 miles SW of HARPER, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 16' 41"N 98° 02' 37"W
1427' MSL
2427' MSL
07E
100LL
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
11/28/24-12/26/24
KP28 (24nm) VFR
5:56 AM CST
No Clouds
N/A
45°F
40°F
30.00"Hg
Calm
AO1 SLP162 T00720044 10078 20067 55000 $
KP28 231156Z AUTO 00000KT 07/04 A3000 RMK AO1 SLP162 T00720044 10078 20067 55000 $
Add Your Business

8K2 FBOs

Promote Listing
Harper Municipal Airport
Phone: (620) 896-2511
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve
Fuel Notes
Prices include tax
Fuel currently unavailable.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KICT (37nm)
Mon, 12/23 5:33 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 10:00 PM CST
Overcast 2,200'
6sm
VRB° 5kts
MVFR
10:00 PM CST - 6:00 AM CST
Mist
Overcast 1,500'
6sm
VRB° 5kts
KICT 231133Z 2312/2412 VRB05KT P6SM OVC022
   FM240400 VRB05KT 6SM BR OVC015
8K2
Domestic
12/14/241623Z !ICT 12/147 8K2 OBST TOWER LGT (ASR 1032361) 372654.10N0981546.20W (14.6NM NW 8K2) 2147.0FT (496.1FT AGL) U/S 2412141623-2504131623
10/31/240456Z !ICT 10/498 8K2 OBST TOWER LGT (ASR 1011291) 371622.30N0975807.00W (3.6NM E 8K2) 1849.1FT (482.0FT AGL) U/S 2410310456-2412312359
4/19/242012Z !ICT 04/276 8K2 AIRSPACE SEE ZKC 04/280 OBST
2404192012-2412312359
FDC
12/3/241802Z !FDC 4/0763 8K2 ODP HARPER MUNI, HARPER, KS.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 35, STANDARD WITH MINIMUM CLIMB OF 253 FPNM TO 2500.
DEPARTURE PROCEDURE: RWY 35, CLIMB HEADING 348 TO 2500 BEFORE TURNING. WIND TURBINE 2144FT MSL, 3.74NM NORTH OF RWY 35 (20-079428). WIND TURBINE, 2179 MSL, 5.21 NM NORTH OF RWY 35 (2024-WTE-9871-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2412031802-2612031756EST
10/28/241834Z !FDC 4/5138 8K2 IAP HARPER MUNI, HARPER, KS.
RNAV (GPS)-A, ORIG...
TAA RIGHT BASE 168/30 CW 258/30 TO SCENA MINIMUM ALTITUDE 3300.
2410281834-2610281834EST
No
UNATNDD
CITY OF HARPER
201 W. MAIN
HARPER, KS 67058
Phone: 620-896-2511
KAREN BEFORT
201 WEST MAIN
HARPER, KS 67058
Phone: 620-896-2511
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT PAPI RWY 17 & 35, HIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 12/30

2138 ft. x 160 ft.
TURF
Good
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading 134°314°
Traffic Pattern Left Left
Markings
Markings Condition GOOD
Latitude 37° 16' 53"N 37° 16' 38"N
Longitude 98° 02' 48"W 98° 02' 29"W
Elevation 1,426' 1,426'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

3268 ft. x 38 ft.
ASPH
Good
NONE
HIGH

--
--
--
--
  Runway 17 Runway 35
True Heading 175°355°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 16' 55"N 37° 16' 23"N
Longitude 98° 02' 37"W 98° 02' 33"W
Elevation 1,427' 1,424'
Threshold Crossing Height 57 ft. AGL 58 ft. AGL
Visual Glide Path Angle 3.25° 3.25°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY 12, 3 FT DITCH 50 FM N END.
A110-4FOR CD CTC WICHITA APCH AT 316-350-1520.
HARPER MUNI (IATA: 8K2) is a public airport located in HARPER, KS.
